RouterNode 2, GatewayNode 2,
SmartBridge

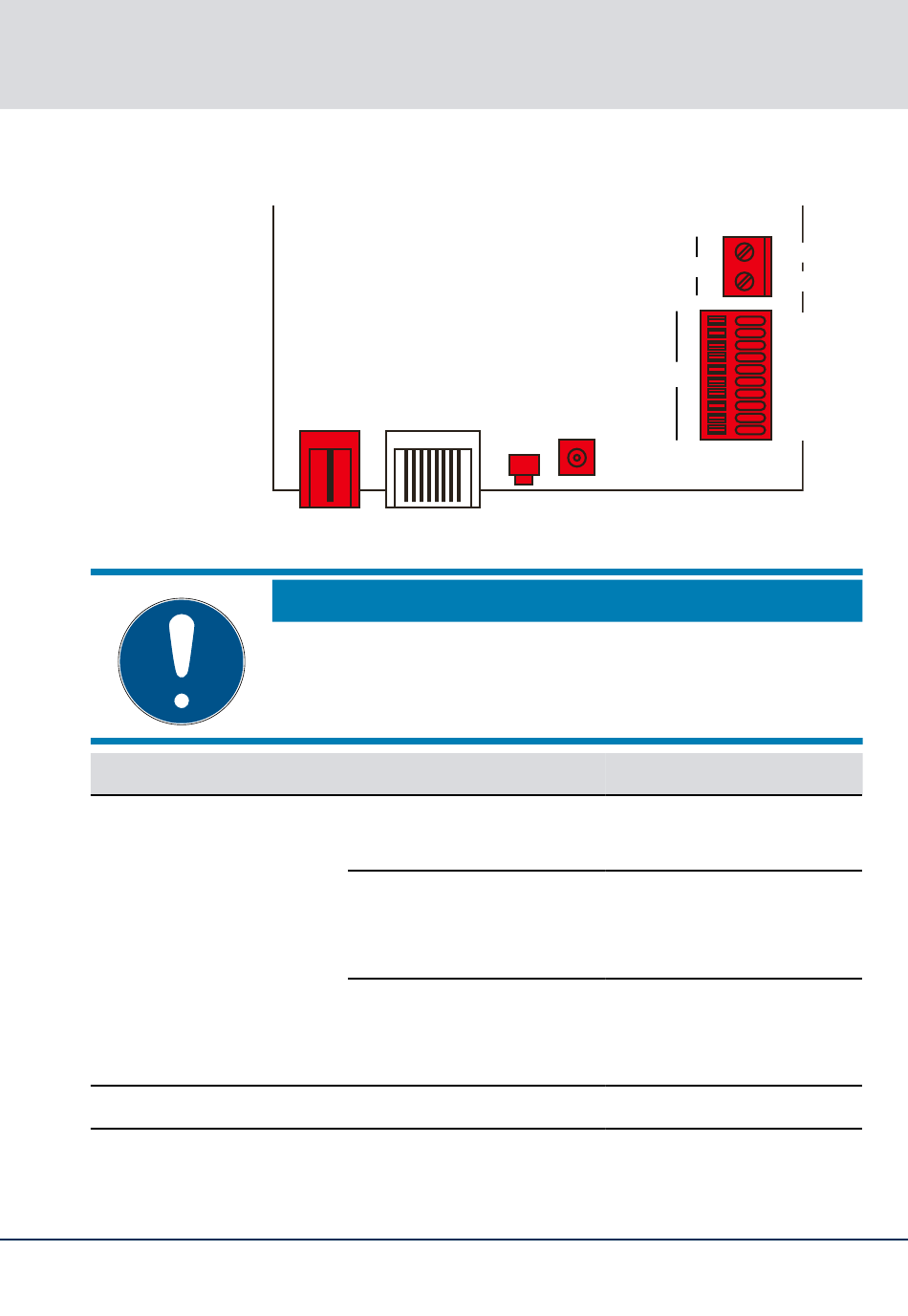

4 Connections

Connection
DC In
RJ45
EN
DC In RJ45
NOTE
IO connector only for RouterNode 2
You can only use the connectors of the IO connector
at RouterNode 2.
Pin connector
Terminal block: GND
Terminal block: +3.3 V
4. Connections
DC In
IO
ANT
Meaning
Power supply with
round plug connector
Power supply with
single wires - Earth
connection
Power supply with
single wires - Positive
pole
Network connection
GND
+ 3.3 V
Analog Input
Unused
DI 3
DI 2
DI 1
O 3
O 2
O 1.NC
O 1.NO
O 1.COM
37 / 184
