RouterNode 2 (Manual)

7.1 Antenna

5. Bend the bars back and forth at the desired opening until the bars break.
The housing is designed to be mounted on a surface.
9

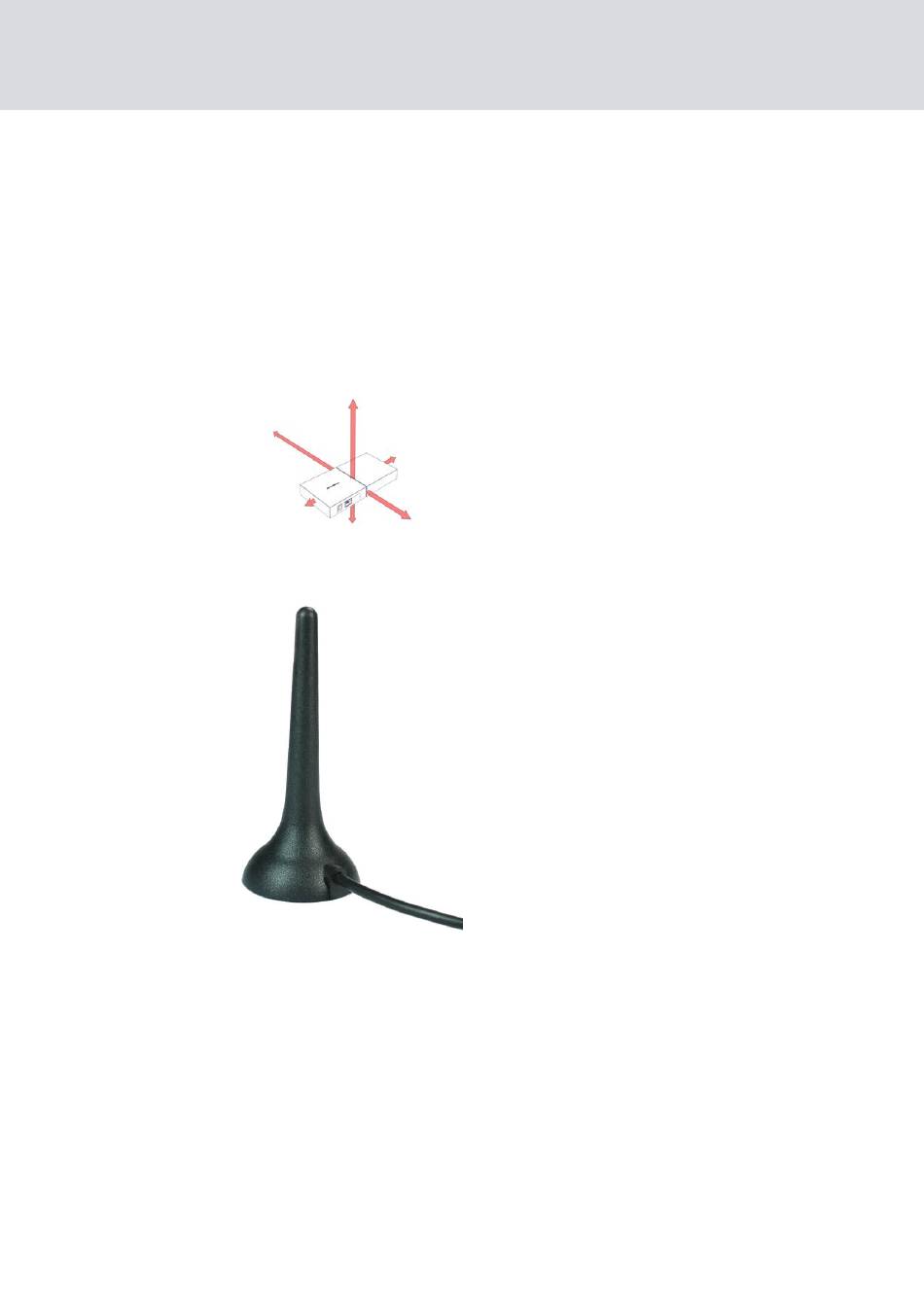

The internal antenna radiates as shown. The transmitting and receiving
power is therefore different depending on the direction and is possibly
influenced by the environment (sources of interference and/or metallic
surfaces).
External antennas
Use the external antenna if any of the following problems occur.
Transmission and reception behaviour not stable

Range too short

Transmission and reception outdoors (LockNodes available outdoors)

The external antenna is suitable for outdoor use. This allows you to place
the device in the protected area while the antenna is outdoors.
The scope of delivery of the external antenna includes:
Integrated magnetic base

Wall mounting material

7. Installation
15 / 34
