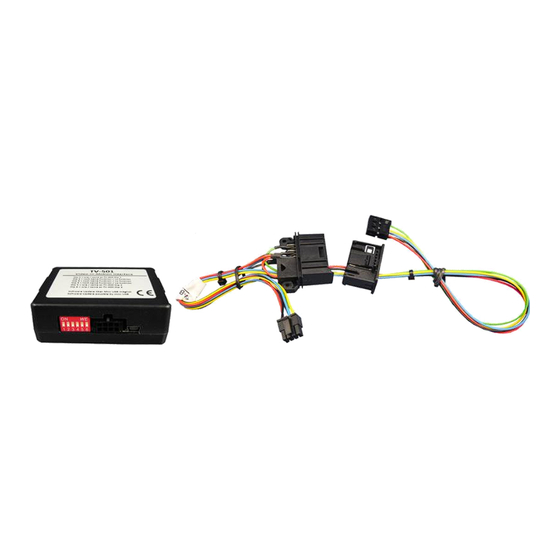

TV-Free
Video-in-motion Interface
CI-TF-E65
Compatible with BMW E65 Professional
navigation systems
with 8.8" monitor
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 20.09.2017
CI-TF-E65
Advertisement
Table of Contents
Related Manuals for Car-Interface TV-Free CI-TF-E65
Summary of Contents for Car-Interface TV-Free CI-TF-E65
- Page 1 TV-Free Video-in-motion Interface CI-TF-E65 Compatible with BMW E65 Professional navigation systems with 8.8” monitor Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product.
-
Page 2: Table Of Contents
Contents 1. Prior to installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 1.3. Setting the Dip-switches of the CAN-Box TV-501 1.4. Pin-assignments 2. Installation 3. Activation of the video-in-motion function 4. Specifications 1. Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. -
Page 3: Check Compatibility Of Vehicle And Accessories
1.2. Check compatibility of vehicle and accessories Requirements Vehicle 7series (E65/E66) Navigation Navigation system Professional E65 with 8.8” monitor 1.3. Setting the Dip-switches of the Can-Box TV-501 Vehicle/ navigation Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 Video-in-motion permanent Video-in-motion selective* * With dip1 to OFF the included green cable is used to activate the video-in-motion function. -
Page 4: Installation
2. Installation Switch off ignition and disconnect the vehicle’s battery! If according to factory rules disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle is sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a resistor lead. - Page 5 Remove the black connector at the backside of the screen as shown below. Remove 12-pin insert from black vehicle harness connector. Insert 12-pin insert into black connector of the harness TV-BM65. Insert the completed black connector into harness TV-BM65. Version 20.09.2017 CI-TF-E65...
-
Page 6: Activation Of The Video-In-Motion Function
Connect 12-pin insert from TV-BM65 into black connector from vehicle harness. Insert completed connector into the plug on the backside of the navigation monitor. Connect 8pin Molex connector of TV-BM65 to CAN-box TV-401. NOTE: Pictures do NOT show the fibre optics connected in car! 3. -
Page 7: Specifications
4. Specifications Operation voltage 10.5 – 14.8V Stand-by power drain <2mA Operation power drain ~60mA Power consumption ~0,08W Temperature range -30°C to +80°C Weight Measurements (box only) W x H x D 76 x 27 x 54 mm Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ®...
