TV-Free
Video-in-motion Interface
CI-TF-UCON22
compatible with Chrysler, Dodge, Fiat, Lancia,
Maserati Uconnect 8,4" system
with 22 pin connector
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 11.03.2015
CI-TF-UCON22
Advertisement
Table of Contents
Related Manuals for Car-Interface TV-Free CI-TF-UCON22
Summary of Contents for Car-Interface TV-Free CI-TF-UCON22
- Page 1 TV-Free Video-in-motion Interface CI-TF-UCON22 compatible with Chrysler, Dodge, Fiat, Lancia, Maserati Uconnect 8,4“ system with 22 pin connector Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product.
- Page 2 Contents 1. Prior to installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 1.3. Setting the Dip-switches of the CAN-Box TV-500 1.4. Pin-assignments 2. Installation 3. Activation of the video-in-motion function 4. Specifications 1. Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources.

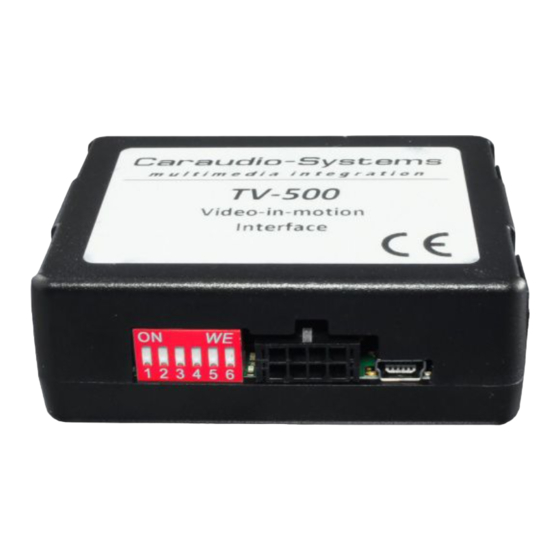

- Page 3 1.2. Check compatibility of vehicle and accessories Requirements Vehicle Chrysler, Dodge, Fiat, Lancia, Maserati System Uconnect 8,4” display with 22 pin connector 1.3. Setting the Dip-switches of the Can-Box TV-500 Vehicle/ navigation Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 Video-in-motion permanent Video-in-motion selective* * With dip1 to OFF the included green cable is used to activate the video-in-motion function.
- Page 4 Pin-assignment of the CAN-Box TV-500 (Molex 8pin) Cable colour Pin-No. Assignment ● Yellow Pin 4 CAN-HIGH – connection to the head-unit ● Blue Pin 3 CAN-LOW – connection to the head-unit ●● Yellow/Black Pin 8 CAN-HIGH – connection to the vehicle ●●...
- Page 5 4. Specifications Operation voltage 10.5 – 14.8V Stand-by power drain <2mA Operation power drain ~60mA Power consumption ~0,08W Temperature range -30°C to +80°C Weight Measurements (box only) W x H x D 76 x 27 x 54 mm Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ®...
