TV-Free
Video-in-motion Interface
CI-TF-NTG3
Compatible with Mercedes Benz COMAND
NTG 3, NTG 3.5 and NTG 5 navigation systems
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 26.03.2018
CI-TF-NTG3
Advertisement
Table of Contents
Related Manuals for Car-Interface TV-Free CI-TF-NTG3
Summary of Contents for Car-Interface TV-Free CI-TF-NTG3
- Page 1 TV-Free Video-in-motion Interface CI-TF-NTG3 Compatible with Mercedes Benz COMAND NTG 3, NTG 3.5 and NTG 5 navigation systems Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product.

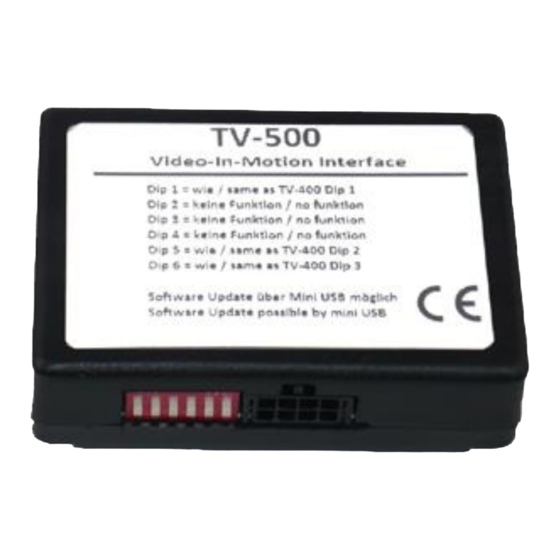

- Page 2 Contents 1. Prior to installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 1.3. Setting the Dip-switches of the CAN-Box TV-500 1.4. Pin-assignments 2. Installation on COMAND NTG3 / NTG3.5 systems 3. Installation on COMAND NTG5 system in Mercedes W222 / C217 4.
- Page 3 1.2. Check compatibility of vehicle and accessories Requirements Vehicle Mercedes Benz S-class (W221) from 10/05, CL-class (W216) from 2006, CL-class (W216) with Dual-View, S-class (W222, C217) Navigation NTG 3, NTG 3.5 1.3. Setting the Dip-switches of the Can-Box TV-500 Vehicle/ navigation Video-in-motion permanent Video-in-motion selective* S-Klasse (W221) with factory rear-view camera and...
- Page 4 2. Installation on COMAND NTG3 / NTG3.5 systems Switch off ignition and disconnect the vehicle’s battery! If according to factory rules disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle is sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a resistor lead.
- Page 5 Loosen Pin 1 (yellow / white cable, CAN HIGH) and Pin 11 (yellow cable, CAN LOW) from the 20-pin socket and, as shown in the right-hand-side illustration, pin it in the included 3-pin socket. CAN LOW (yellow) Pin 1 111 111111111111 CAN HIGH (yellow / white) Pin 3 1111111111 Connect the 3-pin socket with the counterpart on the...
- Page 6 3. Installation on COMAND NTG5 system in Mercedes W222 / C217 Switch off ignition and disconnect the vehicle’s battery! If according to factory rules disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle is sleep-mode.
- Page 7 4. Activation of the video-in-motion function The video-in-motion can be activated and deactivated by Dip 1 or alternatively by the included loose green cable in connection with a switch (not included in delivery). Video-in-motion permanent With dip1 to ON the video-in-motion function is activated permanently without disturbing the navigation performance.
