TV-Free
Video-in-motion Interface
CI-TF-C20
Compatible with Mercedes Benz
Comand 2.0
Comand APS CD
Comand APS 220
navigation systems
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 20.09.2017
CI-TF-C20
Advertisement
Table of Contents
Related Manuals for Car-Interface TV-Free CI-TF-C20
Summary of Contents for Car-Interface TV-Free CI-TF-C20
- Page 1 TV-Free Video-in-motion Interface CI-TF-C20 Compatible with Mercedes Benz Comand 2.0 Comand APS CD Comand APS 220 navigation systems Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product.
- Page 2 Contents 1. Prior to installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 1.3. Setting the Dip-switches of the CAN-Box TV-500 1.4. Pin-assignments 2. Installation 3. Activation of the video-in-motion function 4. Specifications 1. Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources.
- Page 3 1.2. Check compatibility of vehicle and accessories Requirements Vehicle Mercedes Benz C-Class (W203) til 04/2004, CL-Class (C215) from 09/2002 til 09/2003, CLK-Class (C208 W208) all years, CLK-Class (C209 W209) til 05/2004 , E-Class (W210) all years , G-Modell (W463) til 03/2007, ML-Class (W163) all jears, S-Class (W220) from 09/2002 til 09/2003, SL-Class (R230) til 06/2004 Navigation Comand 2.0, Comand APS CD...

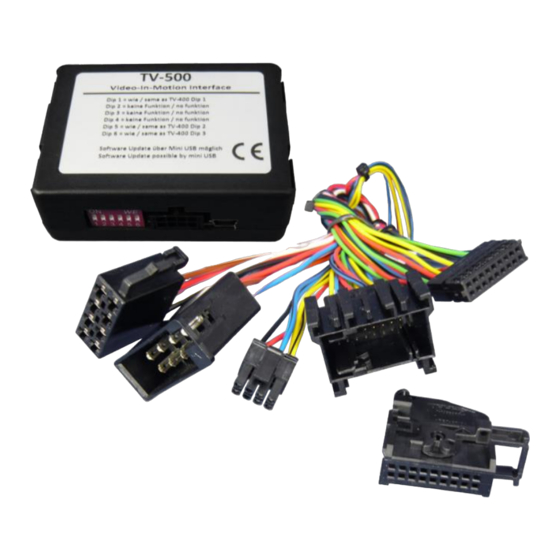

- Page 4 Pin-assignment of the CAN-Box TV-500 (Molex 8pin) Cable colour Pin-No. Assignment ● Yellow Pin 4 CAN-HIGH – connection to the head-unit ● Blue Pin 3 CAN-LOW – connection to the head-unit ●● Yellow/Black Pin 8 CAN-HIGH – connection to the vehicle ●●...
- Page 5 3. Activation of the video-in-motion function The video-in-motion can be activated and deactivated by Dip 1 or alternatively by the included loose green cable in connection with a switch (not included in delivery). Video-in-motion permanent With dip1 to ON the video-in-motion function is activated permanently without disturbing the navigation performance.
