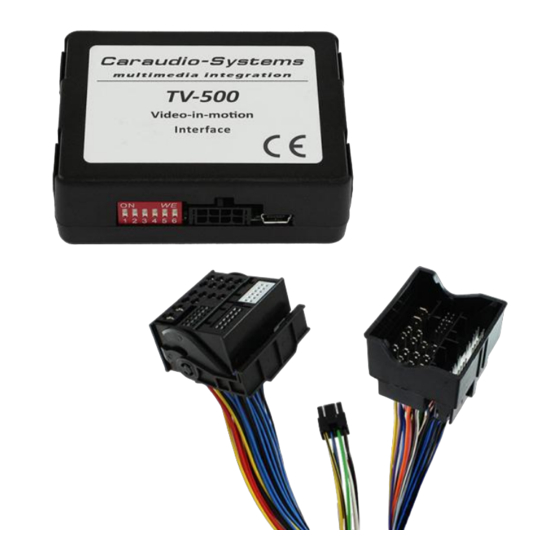

TV-Free
Video-in-motion Interface
CI-TF-SC14
for Volvo
with
Sensus 2014 navigation system
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 13.01.2015
CI-TF-SC14
Advertisement
Table of Contents
Related Manuals for Car-Interface TV-Free CI-TF-SC14
Summary of Contents for Car-Interface TV-Free CI-TF-SC14
- Page 1 TV-Free Video-in-motion Interface CI-TF-SC14 for Volvo with Sensus 2014 navigation system Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product.
- Page 2 Contents 1. Prior to installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 1.3. Setting the Dip-switches of the CAN-Box TV-500 1.3.1. Exception: Vehicles with affected navigation performance 1.4. Pin-assignments 2. Installation 3. Activation of the video-in-motion function 4.
- Page 3 1.2. Check compatibility of vehicle and accessories Requirements Vehicle Volvo Navigation Sensus 2014 Limitations Vehicles with lane pilot, The included green cable is used to activate the video-in-motion distance assistant and function (+12V = activated). city safety system Lane pilot, distance assistant and city safety system do not work while TV-free is activated! 1.3.
- Page 4 1.4. Pin-assignments Assignment +12V permanent Pin 12 Ground Pin 15 CAN HIGH Pin 4 CAN LOW Pin 3 No liability for vehicle wire colors and pin definition! Possible changes by the vehicle manufacturer. The given information must be verified by the installer. Pin-assignment of the CAN-Box TV-500 (Molex 8pin) Cable colour Pin-No.
- Page 5 3. Activation of the video-in-motion function The video-in-motion can be activated and deactivated by Dip 1 or alternatively by the included loose green cable in connection with a switch (not included in delivery). Video-in-motion permanent With dip1 to ON the video-in-motion function is activated permanently without disturbing the navigation performance.
