TV-Free
Video-in-motion Interface
CI-TF-PCM30
compatible with Porsche
PCM 3.0 navigation systems
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 30.01.2013
CI-TF-PCM30
Advertisement
Table of Contents
Related Manuals for Car-Interface TV-Free CI-TF-PCM30
Summary of Contents for Car-Interface TV-Free CI-TF-PCM30
- Page 1 TV-Free Video-in-motion Interface CI-TF-PCM30 compatible with Porsche PCM 3.0 navigation systems Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product.
- Page 2 Contents 1. Prior to installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 1.3. Setting the Dip-switches of the CAN-box TV-500 1.4. Pin-assignments 2. Installation 3. Activation of the video-in-motion function 4. Specifications 1. Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources.
- Page 3 1.2. Check compatibility of vehicle and accessories Requirements Vehicle Cayenne E1, 911, Boxster, Cayman Navigation PCM 3.0 Limitations Internal DVD video cannot be watched! 1.3. Setting the Dip-switches of the Can-Box TV-500 Vehicle/ navigation Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 Vehicles without rear-view camera or with after-market rear-view camera Vehicles with factory rear-view camera...

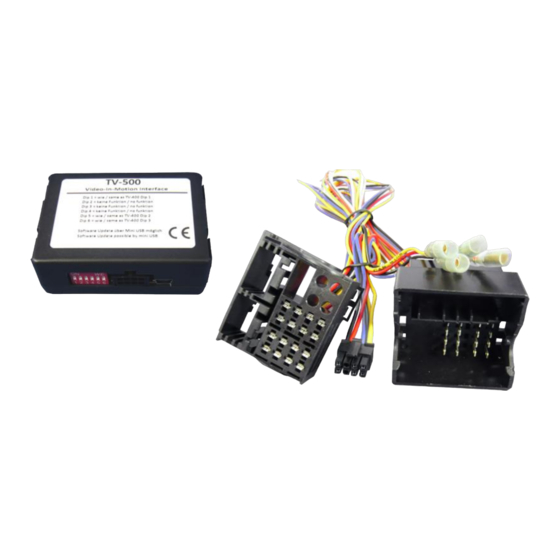

- Page 4 Pin-assignment of the CAN-Box TV-500 (Molex 8pin) Cable colour Pin-No. Assignment ● Yellow Pin 4 CAN-HIGH – connection to the head-unit ● Blue Pin 3 CAN-LOW – connection to the head-unit ●● Yellow/Black Pin 8 CAN-HIGH – connection to the vehicle ●●...
- Page 5 3. Activation of the video-in-motion function The video-in-motion can be activated and deactivated by Dip 1 or alternatively by the included loose green cable in connection with a switch (not included in delivery). Video-in-motion permanent With dip1 to ON the video-in-motion function is activated permanently without disturbing the navigation performance.
