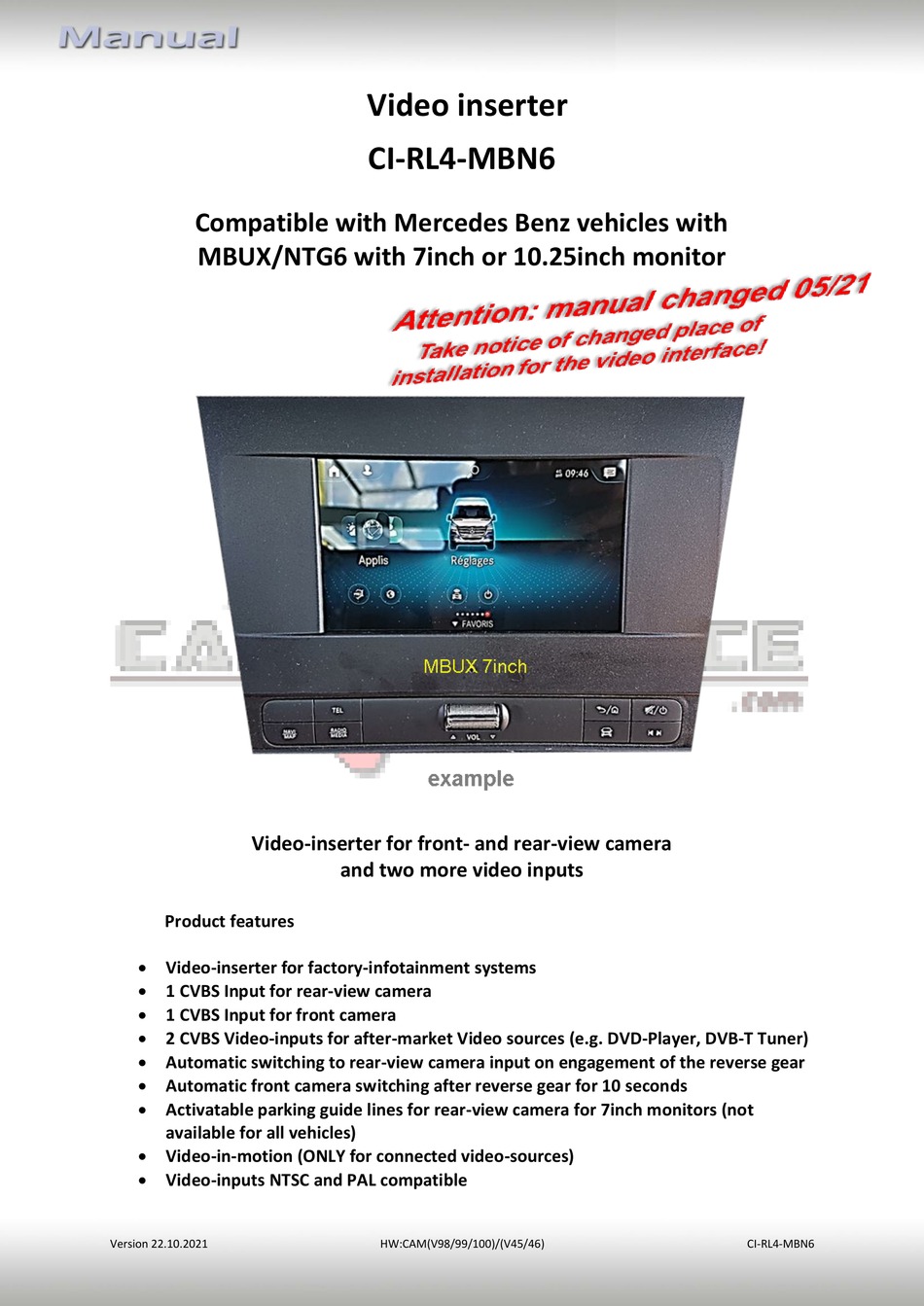

Video inserter
CI-RL4-MBN6
Compatible with Mercedes Benz vehicles with

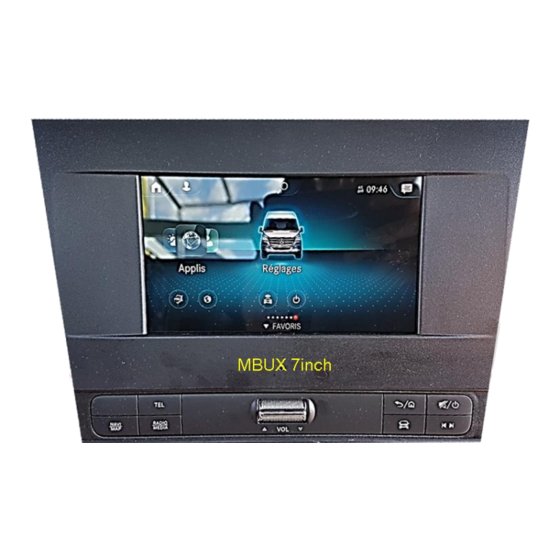

MBUX/NTG6 with 7inch or 10.25inch monitor
Video-inserter for front- and rear-view camera
and two more video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS Video-inputs for after-market Video sources (e.g. DVD-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for rear-view camera for 7inch monitors (not
available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible
Version 22.10.2021
HW:CAM(V98/99/100)/(V45/46)
CI-RL4-MBN6
Advertisement
Table of Contents
Related Manuals for Car-Interface CI-RL4-MBN6
Summary of Contents for Car-Interface CI-RL4-MBN6
- Page 1 Video inserter CI-RL4-MBN6 Compatible with Mercedes Benz vehicles with MBUX/NTG6 with 7inch or 10.25inch monitor Video-inserter for front- and rear-view camera and two more video inputs Product features Video-inserter for factory-infotainment systems 1 CVBS Input for rear-view camera ...
-
Page 2: Table Of Contents
Power supply output 2.3.6.1. After-market front camera 2.4. Connection - video-interface and external keypad 2.5. Connection - video-sources 2.6. Audio insertion 2.7. Picture settings and guide lines 3. Interface operation 4. Specifications 5. FAQ – Trouble Shooting-Interface functions Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
(see chapter: "Case 2: Interface does not receive a reverse gear signal"). Vehicles with park pilot system While the factory park pilot system is in use, the displaying of the reverse camera is not possible. Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 5: Boxes And Connectors - Video Interface
10 seconds Guide lines Enabled (7inch only) disabled Monitor selection 7inch monitor 10.25inch monitor *The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. See the following chapters for detailed information. Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 6: Adjustment - Power Supply Output (Dip 1)
Disconnect the 10pin plug at the interface box between every change of the dip setting. After each Dip-switch-change a power-reset of the interface box has to be performed! Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 7: Settings - 6 Dip Switches (Top Of Box-Black)
Vehicle/Navigation Dip 2 Dip 3 Dip 4 All vehicles Vehicles with factory park pilot system Hinweis: Während Nutzung von Parkpilotsystemen ist kein Rückfahrkamerabild verfügbar After each Dip-switch-change a power-reset of the interface-box has to be performed! Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 8: Installation
2.1.1. Removing the MBUX head-unit in the Sprinter (W907) Remove air vents by using MB special tool. Remove one hidden screw under each air vents Remove front cover – monitor will stay in front. Remove the head-unit. Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 9: Place Of Installation - Rl4-Mbn6
Particularly in the Sprinter W907/910 in the area around the MBUX head unit exists high heat generation due to solar radiation and the heating pipes. For the Sprinter W907/910, it is recommended to install the video interface in the centre console below the MBUX system, as shown in the pictures. Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 10: Connection Schema
2.2. Connection schema Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 11: Connection
2.3. Connection Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 12: Picture Signal Cable - Head Unit Type
Double-Fakra connector. Attention: The picture signal cabel’s connection has always to be done at the head unit’s Double Fakra, even if only one side of the factory Double Fakra is occupied! Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 13: Picture Signal Cable Head Unit Type
Double Fakra connector and connect it to the male waterblue coloured double Fakra connector of the enclosed picture signal cable. Connect the picture signal cable’s waterblue coloured female Double-Fakra connector to the head-unit’s previously become free green coloured Double-Fakra connector. Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 14: 10Pin Power/Can Cable
Connect the single grey wire of the 10pin power / CAN cable to the vehicle’s CAN-Low Connect the blue wire of the 10pin Power / CAN Cable to the vehicle’s CAN-High. Connection diagrams: see next chapter Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 15: Installation With Connection To Can Bus Or Analogue (Without Can Bus)
+12V battery yellow Pin 1 red • • Ground black Pin 6 brown Alternatively, the plug&play connection can be made with article PNP-MBUX31P. ** The CAN bus colours on the vehicle can also be yellow/white and yellow! Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 16: Alternative Connection Point Power/Can - Sprinter W907/910
• twice-connected on the head unit. Ground black brown There`s no liability for the vehicle`s pin diagram! Changes in the manufacturer`s production are possible any time. The mentioned information has to be verified by the installer. Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 17: Installation With Analogue Connection (Without Can-Bus)
With analogue connection of the video interface (without CAN bus), the connection of the rear-view camera must also be made manually. (see point 2.3.5.2.: Case 2: Interface does not receive a reverse gear signal). Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 18: After-Market Rear-View Camera
CAN bus. In this case, connect the rear-view camera as described in the following chapter "Case 2". Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 19: Case 2: Interface Does Not Receive The Reverse Gear Signal
(86) of the relay. Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 20: Power Supply Output
Note: In addition, a manual switch-over to the front camera input is possible via keypad (short press) from any image mode. The power supply output supplies +12V then, too (if Dip 1 is set to ON and the front camera input is selected). Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 21: Connection - Video-Interface And External Keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 22: Connection - Video-Sources
Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 23: Audio Insertion
Generally, guide lines are only available for vehicles equipped with 7inch monitors. Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 24: Interface Operation
7V - 25V Stand-by power drain 10mA Power 270mA @12V Video input 0.7V - 1V Video input formats NTSC/PAL Temperature range -40°C to +85°C Dimensions video-box 119 x 24 x 100 mm (W x H x D) Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... -
Page 25: Faq - Trouble Shooting-Interface Functions
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6... - Page 26 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-05 0068 Made in China Version 22.10.2021 HW:CAM(V98/99/100)/(V45/46) CI-RL4-MBN6...
