VW
vehicles with MIB2 High - Discover Pro infotainment
Skoda Seat
infotainment and 9.2inch monitor
Video-inserter for front- and rear-view camera
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T2
Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible
Version 27.08.2021

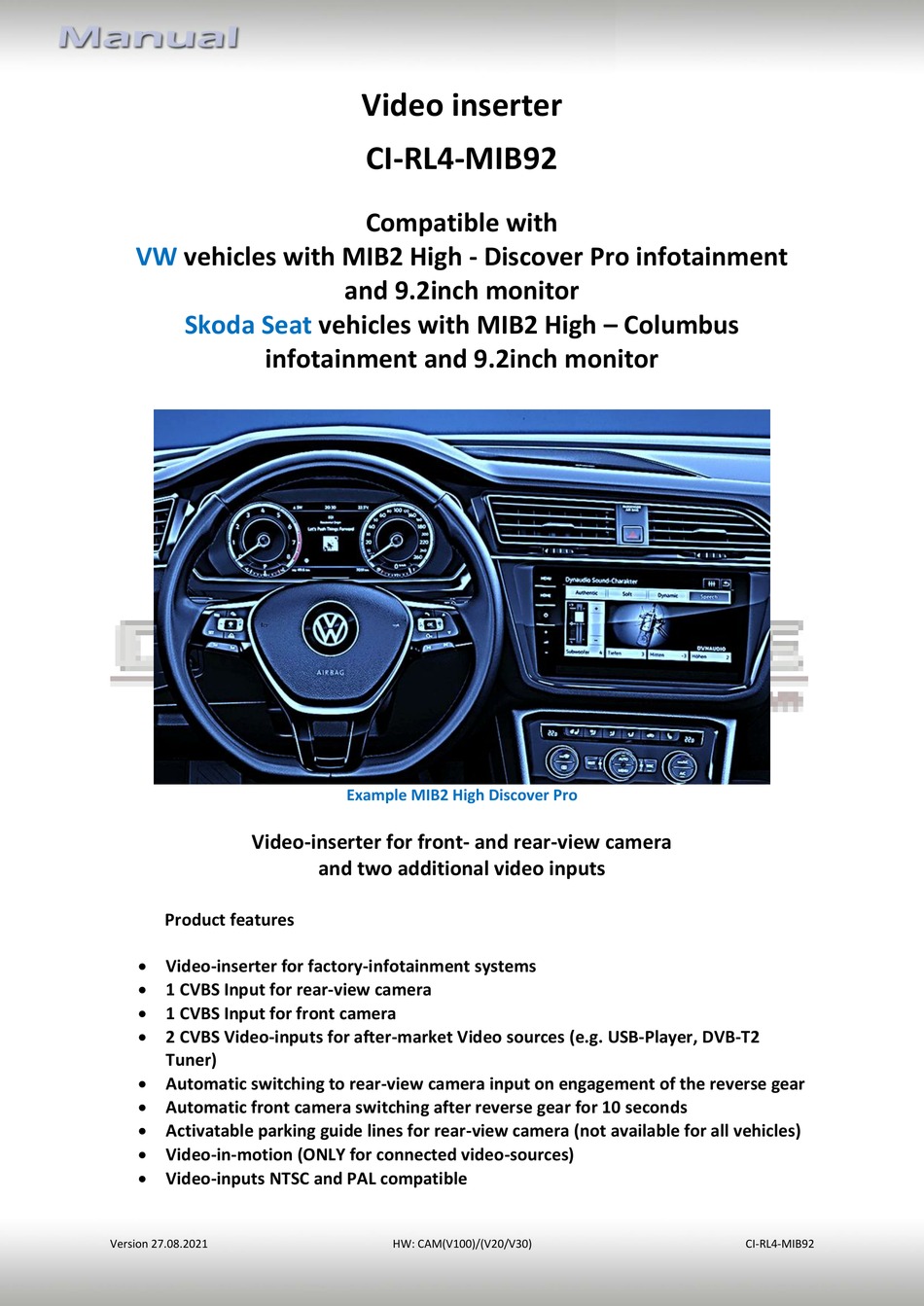

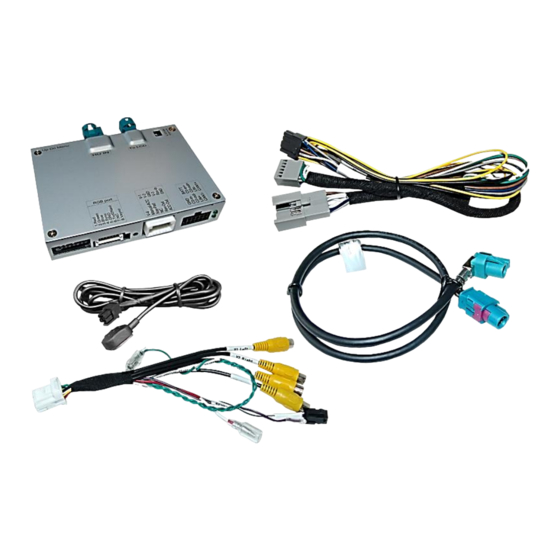

Video inserter
CI-RL4-MIB92
Compatible with
and 9.2inch monitor
vehicles with MIB2 High – Columbus
Example MIB2 High Discover Pro
and two additional video inputs
HW: CAM(V100)/(V20/V30)
CI-RL4-MIB92
Advertisement
Table of Contents
Related Manuals for Car-Interface CI-RL4-MIB92
Summary of Contents for Car-Interface CI-RL4-MIB92
- Page 1 Video inserter CI-RL4-MIB92 Compatible with vehicles with MIB2 High - Discover Pro infotainment and 9.2inch monitor Skoda Seat vehicles with MIB2 High – Columbus infotainment and 9.2inch monitor Example MIB2 High Discover Pro Video-inserter for front- and rear-view camera and two additional video inputs Product features ...
-
Page 2: Table Of Contents
Case 2Interface does not receive the reverse gear signal 2.5. Connection - video-interface and external keypad 2.6. Picture -, guide-lines- and PDC settings 3. Interface operation 3.1. By factory infotainment button 3.2. By keypad 4. Specifications 5. FAQ – Trouble Shooting-Interface functions Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
PDC and guidelines If the video interface does not receive the required information from the vehicle CAN-bus, neither guide-lines nor optical PDC display will be supported. Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 5: Boxes And Connectors - Video Interface
Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 6: Settings - 8 Dip Switches (Black)
*The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. see also chapter "Picture settings and guide lines". After each Dip-switch-change a power-reset of the Video interface has to be performed! See the following chapters for detailed information. Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 7: Activating The Front Camera (Dip 1)
Dip-8 aktiviert die im Menü vertikale und horizontale manuelle Einstellbarkeit der Bildposition falls diese im Display nicht automatisch einwandfrei dargestellt wird. Mit Dip-8 in der OFF Position ist die manuelle Einstellung im Menü nicht möglich (siehe hierzu auch Kapitel „Bildeinstellungen, Führungslinien und PDC“. Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... - Page 8 Warning! Dip position up is ON and position down is OFF (vice versa to the black 8 dips and the red 2 dips). Head Unit Dip 1 Dip 2 Alle Fahrzeuge Set both dips to ON position. Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92...
-
Page 9: Installation
The interface needs a permanent 12V source! 2.1. Place of installation The interface is supposed to be installed at a suitable location behind the vehicle`s head- unit. Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 10: Connection Schema
2.2. Connection schema Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 11: Connection - Factory Head-Unit
12pin connector of the enclosed PNP harness. Clip in the female 12pin connector of the PNP harness in the previously become free position of the female Quadlock connector, before finishing the Quadlock reconnection at the rear of the head-unit. Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 12: Connection - Power
Connect the single black wire of the 10pin power/CAN cable to the vehicle’s negative ground. Note: If, after connecting the 10pin Power / CAN cable, no interface LED lightens up while the ignition is turned on, refer to chapter “Analogue power supply for the video interface”. Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 13: Analog Power Supply
If, after connecting the PNP harness, no interface LED lightens up while the ignition is turned on, the purple coloured wire Manual ACC of the 12pin interface cable has to be connected additionally to S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 14: Power Supply Output
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear is disengaged and +12V by manual switching to front camera by keypad (short press) Dip 1 OFF +12V (max. 3A) ACC Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 15: Connection - Video-Sources
Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 16: Audio Insertion
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip 1 is set to ON and the front camera input is selected). Attention: A long press of the external keypad push button will switch the interface to the next source. Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 17: After-Market Rear-View Camera
“Camera IN” while the reverse gear is engaged. Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken from the green wire of the 12pin interface cable. Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 18: Case 2Interface Does Not Receive The Reverse Gear Signal
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 19: Connection - Video-Interface And External Keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 20: Picture -, Guide-Lines- And Pdc Settings
Dip-8 (the black 8-dips) was previously set to ON. Note: If the video interface does not receive the required information from the vehicle CAN- bus, neither moving guide-lines nor PDC will be supported. Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 21: Interface Operation
Each striking-off will switch to the next enabled input. Inputs which are not enabled will be skipped. Switchover by infotainment buttons isn’t possible in all vehicles. In some vehicles the external keypad has to be used. Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 22: By Keypad
Stand-by power drain Power 300mA @12V Video input 0.7V - 1V Video input formats NTSC and PAL Temperature range -40°C to +85°C Dimensions video-box 116 x 25 x 103 mm (W x H x D) Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... -
Page 23: Faq - Trouble Shooting-Interface Functions
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92... - Page 24 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-05 0068 Made in China Version 27.08.2021 HW: CAM(V100)/(V20/V30) CI-RL4-MIB92...
