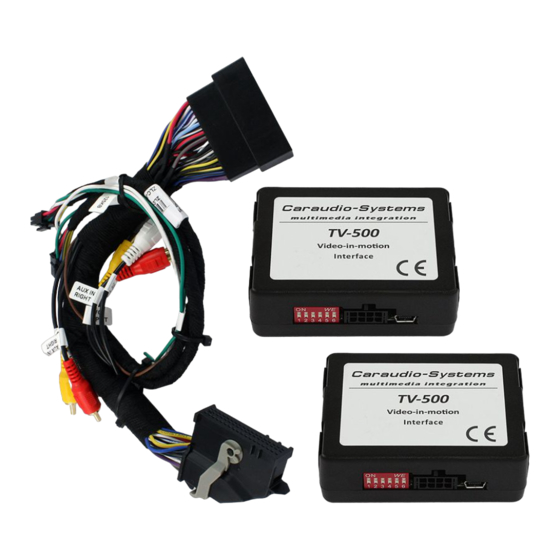

TV-Free
Video-in-motion Interface
CI-TF-FSYNC54
compatible with Ford, Lincoln
Sync system
with 54 pin connector
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 29.04.2015
CI-TF-FSYNC54
Advertisement
Table of Contents
Related Manuals for Car-Interface TV-Free CI-TF-FSYNC54
Summary of Contents for Car-Interface TV-Free CI-TF-FSYNC54
- Page 1 TV-Free Video-in-motion Interface CI-TF-FSYNC54 compatible with Ford, Lincoln Sync system with 54 pin connector Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product.
- Page 2 Contents 1. Prior to installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 1.3. Dip-switch settings of the CAN-Box TV-500 modules 1.4. Pin-assignments 1.5. Connection schema 2. Installation 3. Activation of the video-in-motion function 4. Specifications 1. Prior to installation Read the manual prior to installation.
- Page 3 1.2. Check compatibility of vehicle and accessories Requirements Vehicle Ford, Lincoln Navigation Sync with 54 pin connector Limitations Navigation While the video-in-motion function is active, the navigation will not work! 1.3. Dip-switch settings of the Can-Box TV-500 modules Setting the Dip-switches of the Can-Box TV-500 connected on the 500KB 8Pin Molex plug Vehicle/ navigation Dip 1 Dip 2 Dip 3 Dip 4 Dip 5 Dip 6 Video-in-motion permanent...
- Page 4 1.4. Pin-assignments Pin-assignment vehicle connector Assignment +12Volt Permanent - Pin 1 Ground - Pin 37 CAN HIGH (500KB) - Pin 19 CAN LOW (500KB) - Pin 18 CAN HIGH (125KB) - Pin 16 CAN LOW (125KB) - Pin 17 Pin-assignment of the CAN-Box TV-500 (Molex 8pin) Cable colour Pin-No.
- Page 5 1.5. Connection schema 2. Installation Switch off ignition and disconnect the vehicle’s battery! If according to factory rules disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle is sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a resistor lead.
- Page 6 4. Specifications Operation voltage 10.5 – 14.8V Stand-by power drain <2mA Operation power drain ~60mA Power consumption ~0,08W Temperature range -30°C to +80°C Weight Measurements (box only) W x H x D 76 x 27 x 54 mm Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered trademarks ®...
