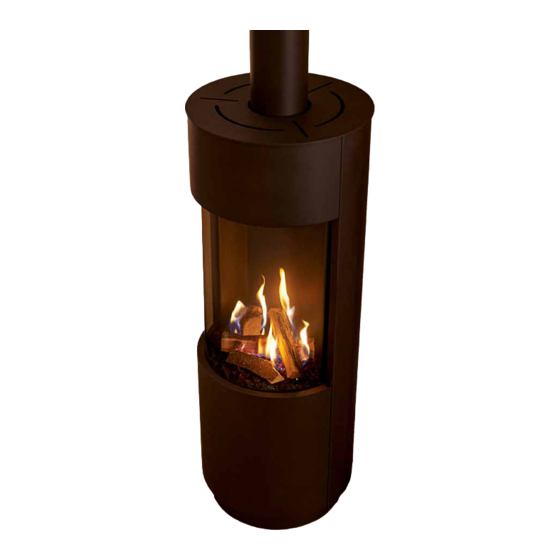

- Page 1 Trimline Opal 1121 INSTALLATION INSTRUCTION...
-
Page 2: Table Of Contents
CONTENTS GENERAL INSTRUCTIONS ................................3 PLACING THE APPLIANCE ................................3 Preparation and installation ..........................3 Cover removal ..............................4 Connection to the gas supply pipes .......................4 Glass panel removal ............................5 Connection of the concentric flue system ....................6 Restrictor and baffle plate ..........................8 Refitting the glass panel ...........................8 INSTALLATION OF THE BURNER MESH AND DISPERSION MEDIUM ............... -
Page 3: General Instructions
GENERAL INSTRUCTIONS NOTE first. The glass panel must not be in place when venting The installation may only be carried out by an authorised and igniting the first time. person. • Ignite the appliance according to the user manual and check the flame is burning evenly. -
Page 4: Cover Removal
2.3 Connection to the gas supply pipes NOTE Do not start the installation until you have read and • You can determine where the gas supply pipes will be understood the installation instructions. placed, dependent on the layout. Ensure control equipment is not twisted during installation and there is no excessive •... -
Page 5: Glass Panel Removal
2.4 Glass panel removal To remove the glass panel, the lower and upper covers must be removed, paragraph 2.2 Cover removal on page 4. • Loosen the four bolts on the vertical glazing bars. They can be accessed through the slotted holes to which the covers attach. -
Page 6: Connection Of The Concentric Flue System
2.5 Connection of the concentric flue system • If necessary, remove the baffle and restrictor, see paragraph As standard, the appliance is equipped with a top connection 2.6 Restrictor and baffle plate. for the concentric flue system. If you intend to use the top •... - Page 7 • Place the supplied (long) flue stub with the assembled seal At the front, the baffle plate and possibly the restrictor still need on the rear. to be installed: • Place the air supply stub with seal on the rear. 5 •...
-
Page 8: Restrictor And Baffle Plate
2.6 Restrictor and baffle plate 2.7 Refitting the glass panel The restrictor 1 and/or baffle plate 2 can be mounted Carefully push the glass panel into place in a straight line inside the appliance, at the location of the flue gas duct. from the front. -
Page 9: Installation Of The Burner Mesh And Dispersion Medium
INSTALLATION OF THE BURNER MESH AND DISPERSION MEDIUM Handle the logs carefully, the ceramic material is very fragile • Place the coal embers on the left and right part of (for example, if dropped or bumped). Do this as accurately the grille 4. as possible;... - Page 10 Installation instruction Trimline Opal...
-
Page 11: Technical Details Maxitrol Gv60
TECHNICAL DETAILS MAXITROL GV60 Maxitrol GV60 Gas valve type B6R-R8P (Wifi Ready) Automatic ignition control type Remote control operation and piezo ignition Ignition Gas connection Pilot flame connection Multi cable Thermocouple connection Piezo connection Gas inlet 3/8" ... -
Page 12: Instructions For Maxitrol Gv60
INSTRUCTIONS FOR MAXITROL GV60 WARNING NOTE • Ensure the fuel supplied to the appliance is clean and free • Do not tighten the contact breaker and the thermocouple from particles and moisture. connection too tightly on the gas valve. • The appliance must not be turned on if the glass pane(s) •... - Page 13 NOTE In the event of an emergency, the I/0 switch can be used to switch off the appliance. The I/0 switch is located behind the bottom cover. Installation instruction Trimline Opal...
-
Page 14: Gas-Technical Specifications
GAS-TECHNICAL SPECIFICATIONS Type of indication(s) Trimline Opal – 1121 Appliance type C11, C31, C91 Concentric extraction system Holetherm CC 100-150 Gas type G25,3 G20/G25 G 20DG 25 Supply pressure in mbar 20/25 Country AT/CH/CZ/DE/DK/ BE/FR EE/ES/FI/GB/GR/ HR/IE/IT/LT/LU/ LV/NO/PL/PT/RO/ SE/SI/SK/TR Category H/-/I (43,46-45,3 MJ/m Primary air per burner... - Page 15 Trimline Opal – 1121 Type of indication(s) C11, C31, C91 Appliance type Holetherm CC 100-150 Concentric extraction system G30/G31 Gas type (28-30)-37 30/50 Supply pressure in mbar BE/CH/CY/CZ/ES/FR/GB/GR/IE/IT/LT/PT/ NL/AT/CH/CY/CZ/DE/DK/EE/FI/GR/ Country SI/TR HR/HU/IT/LT/NO/PL/RO/SE/SI/TR Category L=4x Ø6,0 M=4x Ø8,0 R=4x Ø7,0 L=4x Ø6,0 M=4x Ø8,0 R=4x Ø7,0 Primary air per burner (28-30)-37 30/50...
-
Page 16: Concentric Pathways
CONCENTRIC PATHWAYS Table of concentric pathways Pathway Illustration X total in metres Y total in metres Restriction x = vertical and y = horizontal Min* Max* Min* Max* Trimline Opal – 1121 See restriction conditions Indirect façade outlet G20/25 Indirect façade outlet G30/G31 –... -
Page 17: Concentric Flue System
1 m min. 1 m min. 1 m min. 1 m min. 1 m min. 1 m min. 1 m min. 1 m min. CONCENTRIC FLUE SYSTEM 8.2 Construction of concentric flue system The concentric flue system is composed of an inner flue and an outer flue. -
Page 18: Installation Instructions Regarding Existing Flues
8.4 Parts • An adjustable pipe can be used between the bends or when connecting to the appliance. If necessary, use wall brackets Check all parts for damage before commencing the to support the flue. installation. For the conversion of a brick flue to concentric flue, connected to CC flue system, you need the components Mounting using the roof pass-through option described in appendix 2. -
Page 19: Pass-Through Positions And Function Correctly
PASS-THROUGH POSITIONS AND FUNCTION CORRECTLY Roof pass-through External extension pipe Plot boundary Dimensions Outlet positions Distance mm Distance to ventilation openings Room* Distance to ventilation openings Room* Distance to ventilation openings Room* Lower gutter bottom pipes or exhaust lines Under the eaves Under a carport, roof or balcony, inside and outside corners From ground level and rainwater drainage pipes Inside and outside a corner... -
Page 20: Cleaning And Maintenance
10 CLEANING AND MAINTENANCE Measuring points • The appliance must be checked and serviced by a recognised installer at least once a year. The glass is also cleaned during The appliance has 4 measuring points: 2 on the gas control this process. - Page 21 AR glass (Anti-Reflective glass) cleaning instructions AR glass is a non-reflecting glass. This glass has an AR coating on both sides of the glass. The anti-reflection layer reduces the reflection to a minimal gloss. Remove the glass panel See Paragraph 2.4 Removing the glass panel on page 5.
-
Page 22: Fitting The Led Glow Bed Module
11 FITTING THE LED GLOW BED MODULE 11.1 Installation instructions for the LED glow 11.2 Fitting the glass plate bed module • Remove the front glass panel, Paragraph 2.3 Removing The LED glow bed module consists of: the front glass panel. •... - Page 23 • Place glass plate 9 on top of the seal, glossy side up and matte side down. • Clamp the glass plate in place using the glazing bars , the short glazing bars are fitted on the left and right side, the long glazing bars ...
-
Page 24: Fitting The Led Unit
11.3 Fitting the LED unit • The LED unit is fastened to the mounting plate from below with two screws. • Remove the lower cover from the mantle. • Position the LED unit under the mounting plate. 6. The easiest method is to push the LED unit as far back as possible initially (against the back wall of the mantle). -
Page 25: Quick Reference Guide For Faultssearch For Enclosed Appliances Using Maxitrol Gv60 Gascontrol
12 QUICK REFERENCE GUIDE FOR FAULTSSEARCH FOR ENCLOSED APPLIANCES USING MAXITROL GV60 GASCONTROL Function Possible cause Solution 1. Acoustic signals 1 long beep reset switch OFF (0) Set switch to (I) 1 long beep connections not complete Check connections in thermocouple circuit 1 long beep ... - Page 26 Function Possible cause Solution 7. Pilot light goes out when the False air along pilot flame holder/gasket Check pilot flame holder and gasket for leaks appliance is closed False air hatches Check pressure hatches/gasket is completely closed Main flame causes pilot flame to go out Check restrictor/baffle in accordance with regulations 8.
-
Page 27: Appendix 1 Dimensional Drawings
Appendix 1 DIMENSIONAL DRAWINGS Trimline Tourmaline Measurements in mm Installation instruction Trimline Opal... -
Page 28: Appendix 2 Construction Diagram Double-Wall Concentric
Appendix 2 CONSTRUCTION DIAGRAM DOUBLE-WALL CONCENTRIC Material: Stainless steel AISI 316 L - Allow number 1.4404 Application: for the discharge of flue gases and the supply of combustion air from gas-fired appliances or stoves with a closed combustion system Roof pass-through Roof pass-through Storm collar Lead flashing Roof mounting bracket...
