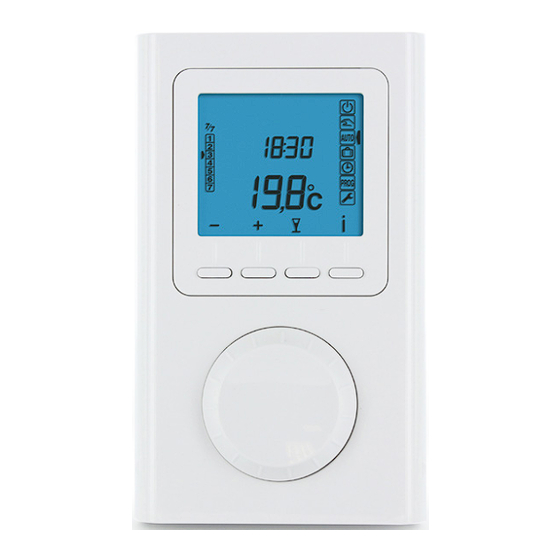

- Page 1 Delta 8000 TAP Bus Programmable thermostat for Delta 8000 system Instructions for use...
-
Page 2: Table Of Contents
CONTENTS 1/ Description 2/ Information button 3/ Setting the clock 4/ Programming 5/ AUTO mode 6/ Manual mode 7/ 'Party' mode 8/ Absence mode 9/ Locking down settings 10/ Off mode 11/ Troubleshooting... -
Page 3: 1/ Description
1/ DESCRIPTION ❶ Shutdown mode ❶ Time ❷ Manual mode ❷ HEAT or COOL mode for ❸ Auto mode reversible installation ❹ Absence mode ❸ Day ❺ Date and time settings ❹ Measured temperature ❻ Programming or temperature setting ❼ Configuration ❺... -
Page 4: 2/ Information Button
2/ INFORMATION BUTTON 3/ SETTING THE CLOCK ❶ Turn the selector knob to From the modes. The information button ( ) shows the following information: - measured temperature or current temperature setting (according to configuration), - outdoor temperature (if an outdoor sensor is associated with the channel), ❷... -
Page 5: 4/ Programming
3/ SETTING THE CLOCK 4/ PROGRAMMING ❹Set the hour value with + and - and Programming involves changing different temperature settings confirm with OK. for each day of the week (Heat: +5°C to +30°C, Cool: +16°C to +35°C) according to requirements. You can programme from 1 to 7 setting changes, as well as the corresponding temperature. - Page 6 5/ PROGRAMMING ❶ Turn the selector knob to Repeat these operations as many times as necessary. , select the day to programme To close the day's programming, press with + and - . Initialisation is recommended by pressing '-' for 3 The day cursor flashes.
-
Page 7: 5/ Auto Mode
5/ AUTO MODE 6/ MANUAL MODE In AUTO mode, the thermostat follows This mode sets a temperature setting for an the day's programme. The automatic undetermined period of time. programme can be temporarily suspended by: ❶ Turn the selector knob to - a temporary change in temperature, ❷... -
Page 8: 7/ 'Party' Mode
7/ 'PARTY' MODE 8/ ABSENCE MODE The 'Party' mode temporarily suspends This mode protects your home from frost if you are absent for the automatic (or manual) programme by several days (from 1 to 365). applying a selected temperature setting over a Example: Away on Friday 10 - Back on Sunday 19, programme 9 programmed period (30 minutes to 12 hours). -
Page 9: 9/ Locking Down Settings
9/ LOCKING DOWN SETTINGS 11/ TROUBLESHOOTING From the modes. • The screen displays the symbol. The batteries are spent. Replace the batteries Press and hold the 'i' button for 5 seconds. symbol appears. When a defect is detected on the system, the symbol flashes on the thermostat display. - Page 10 www.deltadore.com...
