Bender LINETRAXX CTBC Series Manual

LINETRAXX® CTBC-Serie
AC/DC sensitive measuring current
transformer cores
Intended use

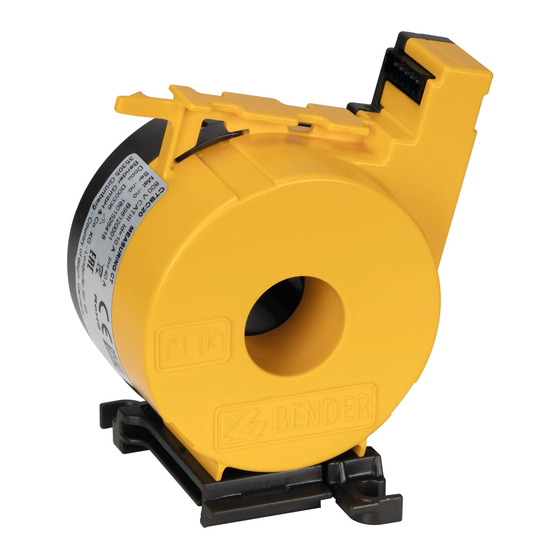

The AC/DC sensitive measuring current transformer
cores of the CTBC series can only be used in combi-
nation with one of the follwing devices:
• MRCDB300 series (see manual D00343)
• CTUB100 series (see manual D00362)
• RCMB300 series (see manual D00372)
The measuring current transformer cores convert
system leakage and fault currents into a signal to be
processed by the devices mentioned above. The
measuring current transformers can be used in DC,
AC, and 3(N)AC systems. The devices are suitable for
detecting fault currents with smooth DC compo-
nents. CTBC...P are insensitive to load currents due
to full magnetic shield, can be used for high short-
term system-related load currents.
Dimension diagrams
a
b
c
d
i
CTBC20(P)/CTBC35(P)
Dimensions (mm), tolerance: ±0.5 mm
CTBC a b
20(P) 75 45
35(P) 94 54
60(P) 126 70
120(P) – –
210(P) – –
CTBC-series_D00336_04_M_XXEN/11.2023
a
g
h
k
j
c d e
83 40 ø 20
100 58.4 ø 35
137 84.5 ø 60
211 139 ø 120
324 277 ø 201
General safety instructions
Part of the device documentation in addition to this
manual is the enclosed "Important safety instructions
for Bender products".
Installation, connection and commissioning are to
be carried out by electrically skilled persons only! It is
essential to follow the existing safety instructions.
I
This symbol indicates a high risk of danger
that will result in death or serious injury if not
avoided.
I
This symbol indicates a low-level risk that can
result in minor or moderate injury or damage
to property if not avoided.
i
This symbol refers to information that is de-
signed to help you make the best use of the
product.
g
b
c
h
l
i
d
j
CTBC60(P)
f g
ø 60 46 37
ø 79.5 45 46
ø 111 55 57
ø 188 66 96
ø 302 68 153
c
d
CTBC120/210(P)
h i j
6 60.5
5 60.5
16 78.5
7.5 96
7.5 113
g
l
i
j
k l
– –
– –
23 1.5
– 17
– 26
Manual EN
