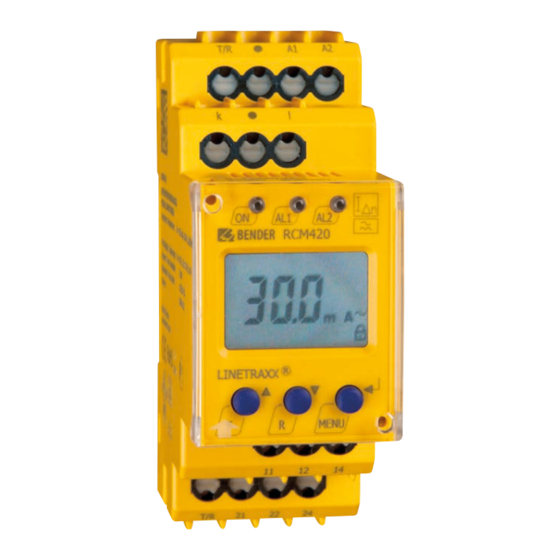

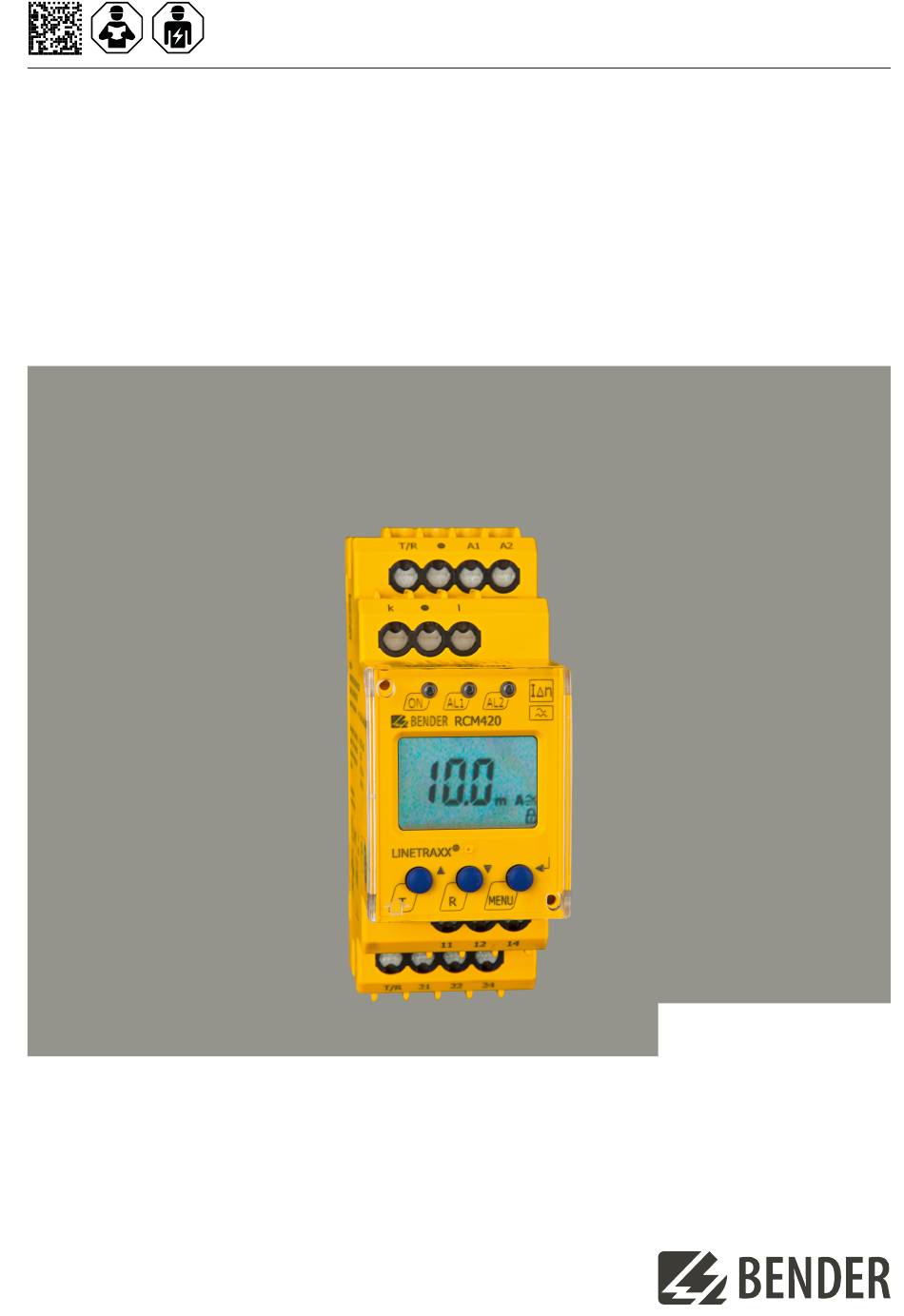

- Page 1 Manual EN LINETRAXX® RCM420 Residual current monitor for AC current monitoring in TN and TT systems RCM420_D00057_06_M_XXEN/12.2023...
- Page 2 RCM420_D00057_06_M_XXEN/12.2023...
-
Page 3: Table Of Contents
Indication of important instructions and information...............5 Signs and symbols............................5 Service and Support............................5 Training courses and seminars........................6 Delivery conditions............................6 Inspection, transport and storage......................6 Warranty and liability.............................6 Disposal of Bender devices..........................7 1.10 Safety..................................7 Function.......................8 Intended use..............................8 Device features..............................8 Function................................8 2.3.1... - Page 4 Table of contents Operation and setting..................14 Display elements in use..........................14 Function of the operating elements......................15 Menu structure...............................15 Display in standard mode..........................17 Display in menu mode..........................17 Parameter settings................... 19 Response value setting for overcurrent....................19 Fault memory..............................20 Alarm relays..............................20 Alarm categories............................21 Set the time delays............................22 Changeover: overcurrent/undercurrent/window mode..............
-
Page 5: General Information
Protect from dust Temperature range Recycling RoHS directives Service and Support Information and contact details about customer service, repair service or field service for Bender devices are available on the following website: Fast assistance | Bender GmbH & Co. KG. RCM420_D00057_06_M_XXEN/12.2023... -
Page 6: Training Courses And Seminars
Regular face-to-face or online seminars for customers and other interested parties: www.bender.de > know-how > seminars. Delivery conditions The conditions of sale and delivery set out by Bender GmbH & Co. KG apply. These can be obtained in printed or electronic format. The following applies to software products: ‘Software clause in respect of the licensing of standard software as part of deliveries,... -
Page 7: Disposal Of Bender Devices
LINETRAXX® RCM420 Disposal of Bender devices Abide by the national regulations and laws governing the disposal of this device. For more information on the disposal of Bender devices, refer to www.bender.de > service & support. 1.10 Safety If the device is used outside the Federal Republic of Germany, the applicable local standards and regulations must be complied with. -
Page 8: Function
Function Intended use The AC and pulsed DC sensitive residual current monitor RCM420 (Type A) from Bender is designed for fault and residual current monitoring in earthed power supply systems (TN/TT systems) where an alarm is to be activated in the event of a fault, but disconnection must be prevented. In addition, the device can be used to monitor single conductors, such as PE conductors, N-PE connections and PE-PAS connections. -
Page 9: Connection Monitoring
2.3.5 Functional faults If an internal functional fault occurs, all three LEDs flash. An error code will appear on the display (E01…E32). In such a case please contact the Bender Service. 2.3.6 Set the number of reload cycles If faults occur only temporarily, but recurrently, in the system being monitored, with the fault memory M deactivated, the alarm relays would switch synchronously to the error status. -
Page 10: Residual Current Monitoring In Window Discriminator Mode
Function If the residual current increases above or falls below the response value the response time t expires. After the expiry of the response time an alarm is signalled. A set response delay t (0…10 s) adds up to the device- on1/2 related operating time t and delays alarm signalling (total delay time t... -
Page 11: Installation, Connection And Commissioning
LINETRAXX® RCM420 Installation, connection and commissioning Only skilled persons are permitted to carry out the work necessary to install, put into service and run a device or system. DANGER Risk of fatal injury due to electric shock! Touching live parts of the system carries the risk of: •... - Page 12 Installation, connection and commissioning Wiring diagram Terminal Connections A1, A2 Connection to supply voltage k, l Connection of measuring current transformers Connection to the combined test/reset button 11, 12, 14 Alarm relay K1 21, 22, 24 Alarm relay K2 RCM420_D00057_06_M_XXEN/12.2023...
-
Page 13: Commissioning
= X1:X2 = 100:10 = 10. The correction factor can be set via the SEt/n menu. The correction factor is factory set to 1 and relates to normal operation with one Bender measuring current transformer only (X = 600:1). Commissioning Prior to commissioning, check proper connection of the residual current monitor. -
Page 14: Operation And Setting
Operation and setting Operation and setting Display elements in use A detailed description of the meaning of the display elements in use is given in the table below. RI. n12 > < onoffHysM Display-Elemente Element Function Reload function with memory = off (L = I.) Transformation ratio factor for a second external measuring current transformer Response value I as mA (Alarm 2, main alarm) -
Page 15: Function Of The Operating Elements
LINETRAXX® RCM420 Function of the operating elements Operating elementes Element Function LED ON lighting continuously: Power On ON, green Flashing LED ON: System fault or connection monitoring fault LED AL 1 lights: Response value 1 reached (I AL1, yellow LED AL 2 lights: Response value 2 reached (I AL2, yellow Test button (>... - Page 16 Operation and setting Menu Sub menu Menu item Activation Adjustable parameter Fault memory Operating mode K1 (n.c.) Operating mode K2 (n.c.) Reload function (memory = off ) 1 Err Device error at K1 PrewarningI at K1 r1 I1 r1 (K1: assignment (output alarm category) Main alarm I...
-
Page 17: Display In Standard Mode
LINETRAXX® RCM420 Display in standard mode By default, the currently measured residual current is displayed. The current response values I1 (prewarning) and I2 (alarm) can be displayed using the Up and Down key. Press the Enter key to return to the measured value. - Page 18 Operation and setting Menu item Adjustable parameter Configuration of the fault memory and the alarm relays • Activate/deactivate the fault memory or assign continuous mode (on/off/con) • Select N/O operation (n.o.) or N/C operation (n.c.) individually for each K1/K2 • Specify the number of the reload cycles •...
-
Page 19: Parameter Settings
LINETRAXX® RCM420 Parameter settings An example is given here on how to change the alarm response value I1 (I ). It is presumed that the option Δn1 overcurrent (HI) has been selected in the SEt/I 12 menu (factory setting). Proceed as follows: Press the MENU/Enter key for more than 1.5 seconds. -
Page 20: Fault Memory
Parameter settings Setting the hysteresis of the response values I Δn1 Δn2 > Fault memory Setting the fault memory to con mode Alarm relays Setting the alarm relay K1 to N/O operation (n.o.) RCM420_D00057_06_M_XXEN/12.2023... -
Page 21: Alarm Categories
LINETRAXX® RCM420 Setting the number of reload cycles > 1,5 s Alarm categories Overcurrent, undercurrent and device-related errors of the residual current monitor can be assigned to the alarm relays K1 (r1, 1) and K2 (r2, 2). By default, the alarm relays K1 and K2 signal prewarning and alarm in case of overcurrent and device-related errors. -
Page 22: Set The Time Delays
Parameter settings Alarm relay K1: Activating the category response value I2 > 1,5 s Alarm relay K1: Deactivating the category ‘Alarm by device test’ > 1,5 s CAUTION When an alarm relay (K1/K2) has been deactivated in the menu, an alarm will not be signalled by the respective changeover contact! An alarm will only be indicated by the respective alarm LED (AL1/AL2)! Set the time delays The following delays can be set... -
Page 23: Changeover: Overcurrent/Undercurrent/Window Mode
LINETRAXX® RCM420 Setting the response delay t > 1,5 s t on t on t on t on Setting the starting delay t > 1,5 s Changeover: overcurrent/undercurrent/window mode The operating mode can be changed in the SEt/I 12 menu using the parameters HI, Lo and In. By default, overcurrent operation (HI) is set. -
Page 24: Cascaded Current Transformer
Parameter settings Cascaded current transformer Setting the correction factor for an additional cascaded current transformer Factory setting without cascaded transformer: n = 1. Password protection Use this menu to activate the password protection, to change the password or to deactivate the password protection. -
Page 25: Factory Settings
LINETRAXX® RCM420 Changing the password >1,5 s Deactivating the password protection >1,5 s Factory settings In this menu you can reset the device to its factory settings. Restoring factory settings ..RCM420_D00057_06_M_XXEN/12.2023... -
Page 26: Device Information Query
Parameter settings 5.10 Device information query Example This function is used to query the software (1.xx) version. After activating this function, data will be displayed as a scrolling text. Once one pass is completed you can select individual data sections using the Up/Down keys.. -
Page 27: Technical Data
Appropriate action when error codes > 02 occur: Carry out a reset. Reset the device to E… factory setting. After eliminating the fault, the error code will be automatically deleted. If the fault continues to exist, please contact the Bender Service Tabular data ( )* = factory setting... - Page 28 Technical Data Insulation coordination acc. to IEC 60664-1/IEC 60664-3 Rated insulation voltage 100 V RCM420-D-1 Overvoltage category/pollution degree III/3 Rated impulse voltage 2.5 kV Rated insulation voltage 250 V RCM420-D-2 Overvoltage category/pollution degree III/3 Rated impulse voltage 4 kV Supply voltage Supply voltage range U AC 24…60 V / DC 24…78 V Operating range U...
- Page 29 LINETRAXX® RCM420 Response values Rated residual operating current I (prewarning, AL1) 50…100 % xI (50 %)* Rated residual operating current I (main alarm, AL2) AC / DC 10 mA…10 A (30 mA)* Hysteresis 10…25 % (15 %)* Specified time Starting delay t 0…10 s (0.5 s)* Response delay t (prewarning)
- Page 30 Technical Data Cable lengths for measuring current transformers Single wire ≥ 0.75 mm 0…1 m Single wire, twisted ≥ 0.75 mm 0…10 m Shielded cable ≥ 0.75 mm 0…40 m shielded, shield on one side connected to Cable terminal l of the RCM420, not connected to earth recommended CAT6/CAT7 min.
- Page 31 LINETRAXX® RCM420 Option ‘W’ data different from the standard version Classification of climatic conditions acc. to IEC 60721 3K23 (condensation and Stationary use (IEC 60721-3-3) formation of ice is possible) Classification of mechanical conditions acc. to IEC 60721 3M12 Stationary use (IEC 60721-3-3) Connection For UL applications: Use copper wire only! For UL applications: Use 60/70 °C copper conductors only!
-
Page 32: Standards, Approvals And Certifications
Technical Data Other Weight ≤ 150 g ( )* = factory setting Standards, approvals and certifications UL508 - Standard for Industrial Control Equipment CSA C22.2 No. 14-13 - Industrial Control Equipment UL File number E173157 (für alle RCM420) UL1053 - Standard for Safety Ground-Fault Sensing and Relaying Equipment UL File number E478610 (Nur für B74014002 und B94014002 und ausschließlich in Kombination mit Marina Guard MG-1.3 und MG-T.3. -
Page 33: Document Revision History
LINETRAXX® RCM420 Shape Inner diameter Type Art. No. Manual No. 20 x 30 mm WS20x30 B98080601 split-core 50 x 80 mm WS50x80 B98080603 D00077 80 x 120 mm WS80x120 B98080606 RCM420 accessories Art. No. Mounting clip for screw fixing (1 piece per device) B98060008 Document revision history Date... - Page 34 Technical Data RCM420_D00057_06_M_XXEN/12.2023...
- Page 35 LINETRAXX® RCM420 RCM420_D00057_06_M_XXEN/12.2023...
- Page 36 Alle Rechte vorbehalten. 35305 Grünberg Nachdruck und Vervielfältigung nur mit Germany Genehmigung des Herausgebers. © Bender GmbH & Co. KG, Germany Subject to change! The specified Tel.: +49 6401 807-0 All rights reserved. standards take into account the edition info@bender.de Reprinting and duplicating only with valid until 12.2023 unless otherwise...
