Quick Installation Guide
TQ7403 Wireless Access Point
The access point model included in this Quick Installation guide is:
AT-TQ7403

Installation and User's Guides
This document contains an abbreviated version of the installation instructions for the
TQ7403 Wireless Access Point. For complete installation and management instructions,
see the TQ7403 Wireless Access Point Installation Guide and TQ7403 Management
Software User's Guide on the Allied Telesis web site at www.alliedtelesis.com/library.

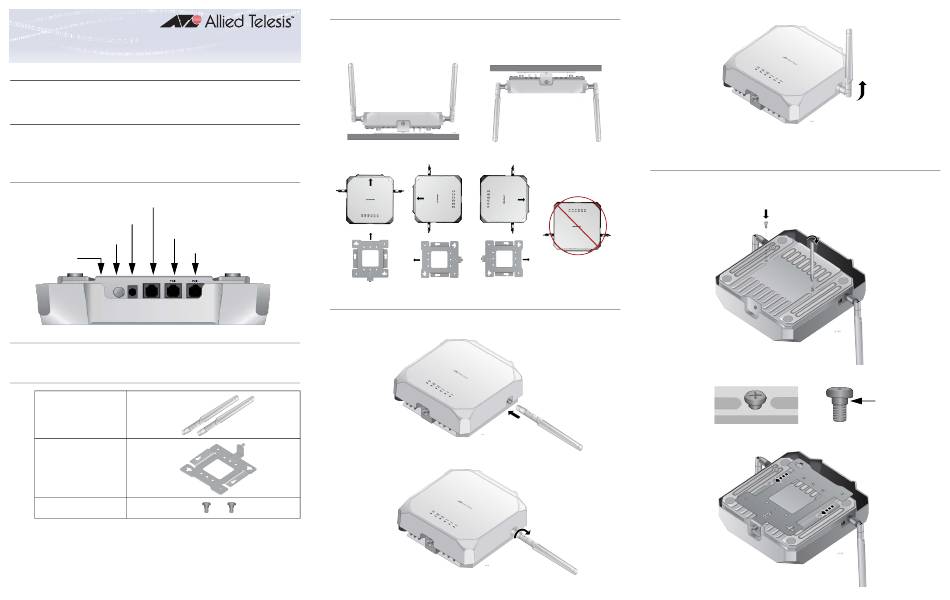

Physical Description
Console Port
(For manufacturing purpose only)
DC IN Connector for AC/DC Adapter
PORT1 POE+ Port
Power Switch
PORT2 POE+ Port
Reset Button
Safety Precautions and Site Requirements
Review the safety precautions and site requirements in the TQ7403 Wireless Access Point
Installation Guide before installing the device.
Package Contents
Two 2.4GHz/5GHz dual
band external antennas
One Mounting Bracket
Two M5 x 4.5 mm,
Pan-head Screws
If any item is missing or damaged, contact your Allied Telesis sales representative for
assistance. Retain the original shipping material to return the unit to Allied Telesis.
*613-003247 Rev B*
613-003247 Rev B
Installation Options
You can install the access point on a desktop, celling, or wall. See the approved and
unapproved orientations:
Desktop
Wall
Attaching the External Antenna
1. Place the access point on a level, secure surface.
2. Align the antenna to the antenna connector on the side of the access point.
3. Screw the antenna onto the antenna connector.
1
4.
Ceiling
5.
Pre-fitting the Mounting Bracket
Before installing the mounting bracket on a wall or ceiling, pre-fit the bracket to the
access point.
1.
Do not install the access
point facing down.
2.
2
Bend the antenna to adjust the position.
Repeat the procedure to attach the other antenna to the other side of the access
point.
Install the two screws (provided) fully into the bottom panel of the access point.
The screw collar provides the proper spacing for the mounting bracket beneath the
screw head.
Make sure that the mounting bracket fits to the access point by sliding the bracket
beneath the screws.
Collar
3
