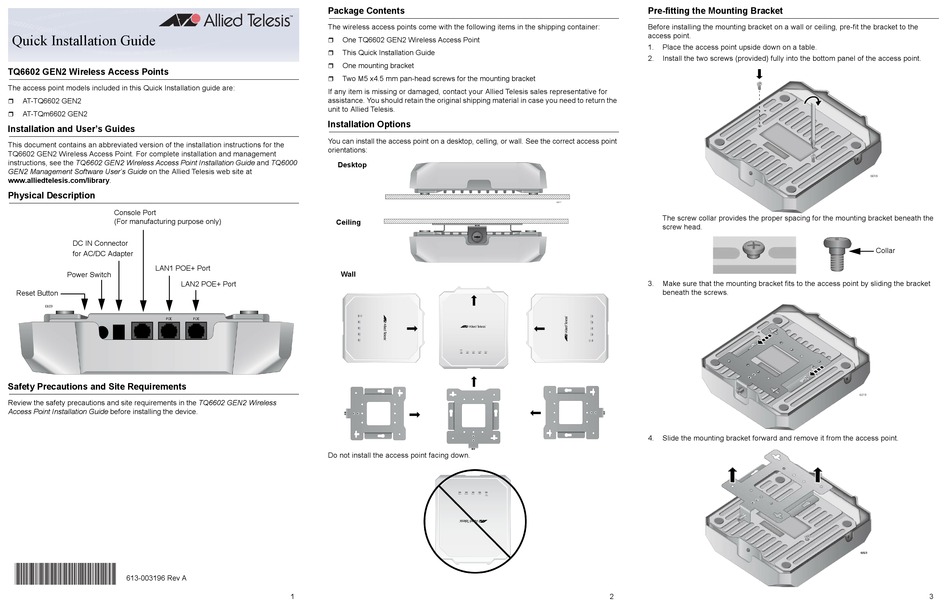

Allied Telesis TQ6602 GEN2 Quick Installation Manual

Quick Installation Guide

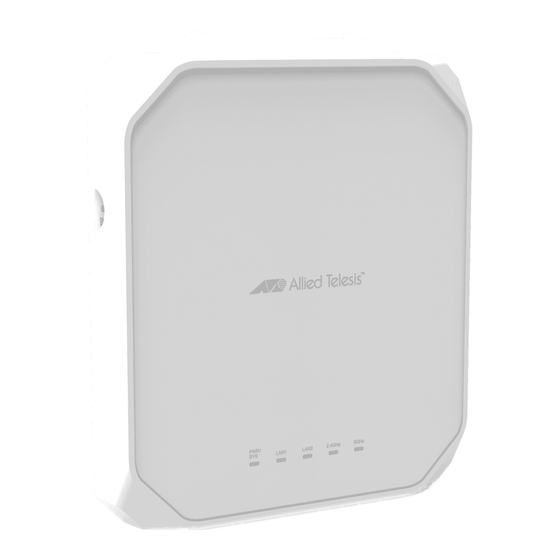

TQ6602 GEN2 Wireless Access Points
The access point models included in this Quick Installation guide are:
AT-TQ6602 GEN2

AT-TQm6602 GEN2

Installation and User's Guides
This document contains an abbreviated version of the installation instructions for the
TQ6602 GEN2 Wireless Access Point. For complete installation and management
instructions, see the TQ6602 GEN2 Wireless Access Point Installation Guide and TQ6000
GEN2 Management Software User's Guide on the Allied Telesis web site at
www.alliedtelesis.com/library.
Physical Description
Console Port
(For manufacturing purpose only)
DC IN Connector
for AC/DC Adapter
LAN1 POE+ Port
Power Switch
LAN2 POE+ Port
Reset Button
Safety Precautions and Site Requirements
Review the safety precautions and site requirements in the TQ6602 GEN2 Wireless
Access Point Installation Guide before installing the device.
*613-003196 Rev A*
613-003196 Rev A
Package Contents
The wireless access points come with the following items in the shipping container:
One TQ6602 GEN2 Wireless Access Point

This Quick Installation Guide

One mounting bracket

Two M5 x4.5 mm pan-head screws for the mounting bracket

If any item is missing or damaged, contact your Allied Telesis sales representative for
assistance. You should retain the original shipping material in case you need to return the
unit to Allied Telesis.
Installation Options
You can install the access point on a desktop, celling, or wall. See the correct access point
orientations:
Desktop
Ceiling
Wall
Do not install the access point facing down.
1
Pre-fitting the Mounting Bracket
Before installing the mounting bracket on a wall or ceiling, pre-fit the bracket to the
access point.
1. Place the access point upside down on a table.
2. Install the two screws (provided) fully into the bottom panel of the access point.
The screw collar provides the proper spacing for the mounting bracket beneath the
screw head.
3. Make sure that the mounting bracket fits to the access point by sliding the bracket
beneath the screws.
4. Slide the mounting bracket forward and remove it from the access point.
2
Collar
3
