Page 2
Allied Telesis, Inc. has been advised of, known, or should have known, the...
Page 3
TQ6702 GEN2 Access Points Installation Guide Electrical Safety and Emissions Standards This product meets the following standards: “Safety and Electromagnetic Emissions” on page 4 “Translated Safety Statements” on page 7 ...
Page 4
Safety and Electromagnetic Emissions Standard Compliance RoHs compliant European Union RoHS (Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.) Wire Communication IEEE 802.1...
Page 5
TQ6702 GEN2 Access Points Installation Guide Electro Magnetic Interference (EMI) FCC part15 Subpart B/ Class B EN55032 Class B VCCI-CISPR 32 / Class B AS/NZS CISPR 32 Electro Magnetic Susceptibility - EN55024 and EN55035 IEC 61000-4-2 ...
Page 6
AS/NZS CISPR 32 AS/NZS 4268 ICES-003 RSS-102 RSS-247 Japan JATE ARIB STD-T66 ARIB STD-T71 Hong Kong OFCA India WPC Malaysia SIRIM Singapore IMDA TS SRD Complies with IMDA Standards DB102434 Figure 1. Singapore IMDA Logo Taiwan BSMI &...
Page 7
PDF document titled Translated Safety Statements on the Allied Telesis website at www.alliedtelesis.com/library. Remarque: Les consignes de sécurité portant le symbole sont traduites dans plusieurs langues dans le document Translated Safety Statements, disponible à...
Contents Preface ................................15 Safety Symbols Used in this Document ....................16 Contacting Allied Telesis ........................... 17 Chapter 1: Product Description ........................19 Hardware Components ..........................20 Cable Hide............................22 Console Port............................22 Power Switch............................22 Kensington Lock Hole.......................... 22 Reset Button............................22 LAN1 and LAN2 Ports..........................
Page 10
Operating Frequencies and Maximum Transmission Power Levels ............67 Radiation Exposure Statement ......................67 Importer..............................67 Appendix C: Radiation Patterns ........................69 TQ6702 GEN2, TQ6702 GEN2-R, and TQm6702 GEN2 Access points ........... 70 Antenna Locations ..........................70 Axes on the Access Point ........................70 4x4 2.4G...............................71 4x4 5G..............................72...
Page 11
Figure 34: Pin Layout for RJ45 Connector on LAN Port.................. 60 Figure 35: Antenna Axes on the TQ6702 GEN2, TQ6702 GEN2-R, and TQm6702 GEN2 Access Points ..70 Figure 36: Axes on the TQ6702 GEN2, TQ6702 GEN2-R, and TQm6702 GEN2 Access Points....70...
GEN2 Access Points. The access point models included in this manual are: TQ6702 GEN2 TQ6702 GEN2-R TQm6702 GEN2 This preface contains the following sections: “Safety Symbols Used in this Document” on page 16 “Contacting Allied Telesis” on page 17 ...
Preface Safety Symbols Used in this Document This document uses the following conventions. Note Notes provide additional information. Caution Cautions inform you that performing or omitting a specific action may result in equipment damage or loss of data. Warning Warnings inform you that performing or omitting a specific action may result in bodily injury.
TQ6702 GEN2 Access Points Installation Guide Contacting Allied Telesis If you need assistance with this product, visit the Allied Telesis web site at www.alliedtelesis.com/support.
Chapter 1 Product Description The sections in this chapter describe the hardware components of the TQ6702 GEN2 Wireless Access Points: “Hardware Components” on page 20 “LAN1 and LAN2 Ports” on page 23 “AC Adapter for External Power Supply” on page 27 ...

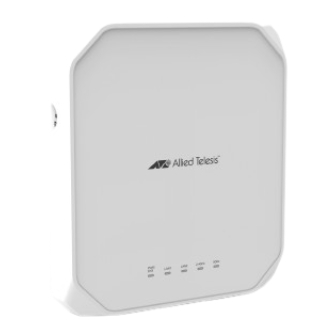

Chapter 1: Product Description Hardware Components The top view of the TQ6702 GEN2 Access Point is illustrated in Figure 1. Back Edge Front Edge Figure 1. TQ6702 GEN2 Access Point Top View The bottom view is illustrated in Figure 2.
Page 21
TQ6702 GEN2 Access Points Installation Guide The front edge view is illustrated in Figure 3. Mounting Bracket Thumb Screw Hole Figure 3. Front Edge View The back edge view is illustrated in Figure 4. Console Port LAN1 POE+ Port DC IN Connector for AC/DC Adapter...
Figure 2 on page 20. Console Port The Console Serial ports on the TQ6702 GEN2 and TQm6702 GEN2 models are for manufacturing purposes only. For the TQ6702 GEN2-R device, you can access the AlliedWare Plus™...
TQ6702 GEN2 Access Points Installation Guide LAN1 and LAN2 Ports The wireless access point has two Ethernet ports, labeled LAN1 and LAN2. You use the ports to connect the wireless access point to your wired network. Here are their basic properties: LAN1 and LAN2 ports support PoE+.
Chapter 1: Product Description Note Do not enable and cable the LAN2 port until after you have configured the other network device for the static LAG. Cascade Mode The LAN2 port also has a Cascade mode. The mode allows you to use the port to connect another device to your network.
TQ6702 GEN2 Access Points Installation Guide Power Over You can power the wireless access point with either PoE+ on the LAN1 port, LAN2 port or an AC/DC power adapter. The wireless access point is Ethernet Plus a PoE+ Class 4 powered devices, with maximum power consumption of (PoE+) 25.5 watts.
Chapter 1: Product Description You cannot disable automatic MDIX detection. For automatic MDIX detection to work properly, this feature must also be present on the Ethernet switch. The LAN port defaults to MDIX if it is connected to a network device that does not support automatic MDIX detection. Cable The minimum cable requirements for the ports are listed here.
TQ6702 GEN2 Access Points Installation Guide AC Adapter for External Power Supply The access point can be powered in two ways: PoE+ Sourcing Equipment (PSE) on LAN1 and/or LAN2 ports AC power adapter You can also power it with both methods for power redundancy. The power sources are not load-sharing.
Chapter 1: Product Description LEDs The LEDs on the top panel display status information. See Figure 10 for LEDs and Table 1 for the status definition. Figure 10. TQ6702 GEN2 Access Point Top View - LEDs Table 1. LED Status Information Description State...
Page 29
TQ6702 GEN2 Access Points Installation Guide Table 1. LED Status Information (Continued) Description State TQ6702 GEN2 and TQ6702 GEN2-R TQm6702 GEN2 Green The 2.4GHz radio is enabled. 2.4GHz The 2.4GHz radio is disabled. Green The 5GHz radio is enabled. 5 GHz...
Chapter 2 Installing the Wireless Access Point This chapter contains the installation procedures for the TQ6702 GEN2 Access Points. The procedures are detailed in the following sections: “Reviewing Safety Precautions” on page 32 “Unpacking the Shipping Box” on page 35 ...
Chapter 2: Installing the Wireless Access Point Reviewing Safety Precautions Please review the following safety precautions before installing the access point. Important: Safety statements that have the symbol are translated into multiple languages in the Translated Safety Statements document, which is available at www.alliedtelesis.com/library.
TQ6702 GEN2 Access Points Installation Guide Warning FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Note The access point must be powered by: 1.
Page 34
Chapter 2: Installing the Wireless Access Point Note If you are not using PoE to power to unit, use only an approved AC/ DC adapter. Refer to “Power Specifications” on page 58. Caution The unit does not contain serviceable components. Please return damaged units for servicing.
Allied Telesis. 2. Verify the contents of the shipping box listed in Table 11. If any item is missing or damaged, contact your Allied Telesis sales representative for assistance. Figure 11. Shipping Box Components...
Chapter 2: Installing the Wireless Access Point Reviewing Installation Guidelines Review the following guidelines before installing the access point: The ceiling or wall mounting surface must be of proper material to accommodate the screws and strong enough to support the weight of the access point and cables.
Page 37
TQ6702 GEN2 Access Points Installation Guide Ceiling Installation Wall Installation Table Installation Figure 12. Approved Installation Orientations on a Ceiling, Wall, or Table...
Chapter 2: Installing the Wireless Access Point Installing the Access Point on a Table You need the following items to install the access point on a table: TQ6702 GEN2 Access Point One or two Ethernet cables External AC power adapter (Optional if using PoE+. Required if not ...
TQ6702 GEN2 Access Points Installation Guide Overview to Installing the Access Point on a Wall or Ceiling Here are the procedures for installing the wireless access point on a wall or ceiling: “Pre-fitting the Mounting Bracket on the Access Point” on page 40 ...
Chapter 2: Installing the Wireless Access Point Pre-fitting the Mounting Bracket on the Access Point To pre-fit the mounting bracket on the access point, perform the following procedure: 1. Place the wireless access point upside down on a table. 2. Install the two screws (provided) fully into the bottom panel of the access point.
Page 41
TQ6702 GEN2 Access Points Installation Guide 3. Make sure that the mounting bracket fits to the access point by sliding the bracket beneath the screws as shown in Figure 15. Figure 15. Attaching the Mounting Bracket on the Access Point 4.
Chapter 2: Installing the Wireless Access Point Installing the Mounting Bracket on a Wall or Ceiling To install the mounting bracket on a wall of ceiling, perform the following procedure: 1. Choose the location and orientation for the access point on the wall or ceiling.
Page 43
TQ6702 GEN2 Access Points Installation Guide 5. Install two M4 screws and anchors (if required). Leave the screws loose enough so that the bracket can slide under the screw heads. Refer to Figure 18. Note For a wooden wall or ceiling, use M4 x 25 mm flat-head wood screws and anchors, if required.
Page 44
Chapter 2: Installing the Wireless Access Point 6. Insert the openings of the bracket key-hole slots under the two screw heads and slide the bracket into the narrow end of the key-hole slot openings. See Figure 19. Figure 19. Installing the Mount Bracket On the Screws 7.
Page 45
TQ6702 GEN2 Access Points Installation Guide 9. Install and tighten two M4 screws (not provided) in the holes prepared in Step 8. The bracket installation is now complete.See Figure 21. Figure 21. Securing the Mount Bracket 10. Go to “Connecting Ethernet Cables to LAN1 and LAN2 Ports” on...
Chapter 2: Installing the Wireless Access Point Connecting Ethernet Cables to LAN1 and LAN2 Ports This section describes the instructions for connecting Ethernet cables to the LAN1 and LAN2 ports. Guidelines Review the following guidelines before connecting cables to the LAN1 and LAN2 ports: For information on cable specifications, see “Cable Requirements”...
Page 47
TQ6702 GEN2 Access Points Installation Guide 2. Connect the other end of the Ethernet cable to a network Ethernet device, such as an Ethernet switch or router. Note If the device is PoE+ power sourcing equipment (PSE), the access point begins to power on and initialize its management software.
AC power adapter, or both. A wireless access point that is powered by both methods uses the AC adapter as its primary power and PoE as redundant power. For an AC power adapter, Allied Telesis recommends the PWRADP-01 (DA-48Z12) Power Adapter.
TQ6702 GEN2 Access Points Installation Guide Attaching the Access Point to the Mounting Bracket To attach the wireless access point on the mounting bracket on the wall or ceiling, perform the following procedure: 1. Align the bottom of the access point over the bracket so that the two screws on the bottom of the device fit into the bracket keyholes.
Page 50
Chapter 2: Installing the Wireless Access Point Figure 26. Seating the Access Point on the Mounting Bracket 3. Tighten the thumbscrew to secure the access point to the mounting bracket. Refer to Figure 27. Figure 27. Tightening the Mounting Bracket Thumbscrew...
Page 51
TQ6702 GEN2 Access Points Installation Guide 4. Place the Ethernet cable(s) and power cable (if any) along the cable guides inside of the top cover in the cable hide space. See Figure 28. Figure 28. Fitting the Cables in the Cable Hide 5.
Note Anti-theft devices are not available from Allied Telesis. 1. Follow the instructions provided with the vendor’s anti-theft device for the installation. See Figure 29 for the Kensington lock port location.
GEN2 Management Software User’s Guide. Note You can access the TQ6702 GEN2-R model using the Console port, in addition to using the Web User Interface. To start a management session via the Console port of the TQ6702 GEN2-R model, see “Starting a Local Management Session”...
Page 54
Chapter 2: Installing the Wireless Access Point Figure 30. Login Prompt for TQ6702 GEN2 Figure 31. Login Prompt for TQ6702 GEN2-R 3. Enter the login information. Username: manager Password: friend Note The user name and password are case-sensitive.
This section is for the TQ6702 GEN2-R model only. This procedure explains how to start a local management session on the TQ6702 GEN2-R device. It assumes that you powered on the device and waited about two minutes for it to initialize its operating software.
Page 56
Chapter 2: Installing the Wireless Access Point Note User names and passwords are case sensitive. The local management session starts when the User Exec mode prompt, shown in Figure 32. is displayed. awplus> Figure 32. User Exec Mode Prompt Note The AlliedWare™...
Appendix A Technical Specifications This appendix contains the specifications for the TQ6702 GEN2 Access Points in the following sections: “Physical Specifications” “Environmental Specifications” “Power Specifications” on page 58 “Cable Specifications” on page 59 “LAN Ports Specifications and Pinouts” on page 60 ...
Table 5 lists the PoE+ specifications for the PoE LAN ports. Requirements Table 5. PoE+ Power Specifications on LAN Ports Maximum Power Consumption 25.5 watts Rated Voltage DC 48V Rated Current 0.67A Note Allied Telesis recommends using UL-certified PoE injectors.
Appendix A: Technical Specifications LAN Ports Specifications and Pinouts Port The access point port specifications are shown in Table 6. Specifications Table 6. LAN Port Specifications Connector Specification PoE standard - LAN1 and LAN2 IEEE 802.3at (class 4) Port Pinouts The pin signal definitions for ports LAN1 and LAN2 are given here.
Appendix B Regulatory Statements This appendix contains the following regulatory statements: “Federal Communication Commission Interference Statement” on page 62 “Industry Canada Statement” on page 64 “Europe - EU Declaration of Conformity” on page 66 “UK - UKCA Declaration of Conformity” on page 67 ...
Appendix B: Regulatory Statements Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 63
TQ6702 GEN2 Access Points Installation Guide Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The access points should be installed and operated with minimum distance 22 cm between the radiator and your...
Appendix B: Regulatory Statements Industry Canada Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
Page 65
TQ6702 GEN2 Access Points Installation Guide Avertissement: Le guide d’utilisation des dispositifs pour réseaux locaux doit inclure des instructions précises sur les restrictions susmentionnées, notamment: (i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles...
20 cm between the radiator and your Statement body. Importer Allied Telesis International BV Incheonweg 7, 1437 EK Rozenburg Note Contact Allied Telesis for the EU conformity statement. To contact Allied Telesis, visit our web site at www.alliedtelesis.com/contact.
20 cm between the radiator and your Statement body. Importer Allied Telesis International BV 11 Pine Court, Kembrey Park Swindon Wiltshire SN2 8AD, United Kingdom Note Contact Allied Telesis for the UK conformity statement. To contact Allied Telesis, visit our web site at www.alliedtelesis.com/contact.
Appendix C Radiation Patterns This appendix contains the following sections: “TQ6702 GEN2, TQ6702 GEN2-R, and TQm6702 GEN2 Access points” on page 70...
Appendix C: Radiation Patterns TQ6702 GEN2, TQ6702 GEN2-R, and TQm6702 GEN2 Access points Antenna Locations Figure 34. Antenna Axes on the TQ6702 GEN2, TQ6702 GEN2-R, and TQm6702 GEN2 Access Points Axes on the Access Point Figure 35. Axes on the TQ6702 GEN2, TQ6702 GEN2-R, and TQm6702...
