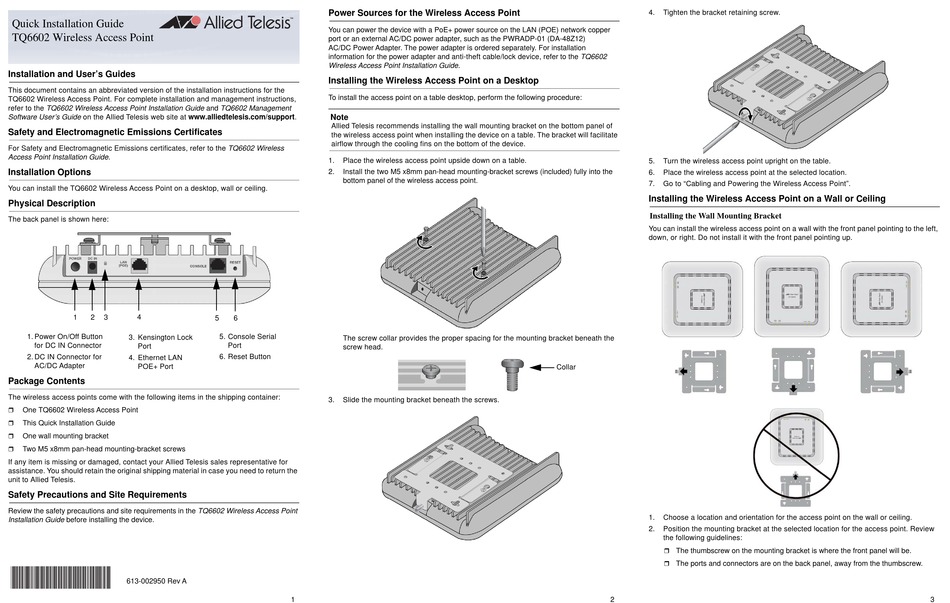

Quick Installation Guide
TQ6602 Wireless Access Point
Installation and User's Guides
This document contains an abbreviated version of the installation instructions for the
TQ6602 Wireless Access Point. For complete installation and management instructions,
refer to the TQ6602 Wireless Access Point Installation Guide and TQ6602 Management
Software User's Guide on the Allied Telesis web site at www.alliedtelesis.com/support.
Safety and Electromagnetic Emissions Certificates
For Safety and Electromagnetic Emissions certificates, refer to the TQ6602 Wireless
Access Point Installation Guide.
Installation Options
You can install the TQ6602 Wireless Access Point on a desktop, wall or ceiling.
Physical Description
The back panel is shown here:
1
2
3
4
1. Power On/Off Button
3. Kensington Lock
for DC IN Connector
Port
2. DC IN Connector for
4. Ethernet LAN
AC/DC Adapter
POE+ Port
Package Contents
The wireless access points come with the following items in the shipping container:
One TQ6602 Wireless Access Point
This Quick Installation Guide
One wall mounting bracket
Two M5 x8mm pan-head mounting-bracket screws
If any item is missing or damaged, contact your Allied Telesis sales representative for
assistance. You should retain the original shipping material in case you need to return the
unit to Allied Telesis.
Safety Precautions and Site Requirements
Review the safety precautions and site requirements in the TQ6602 Wireless Access Point
Installation Guide before installing the device.
*613-002950 Rev A*
613-002950 Rev A
Power Sources for the Wireless Access Point
You can power the device with a PoE+ power source on the LAN (POE) network copper
port or an external AC/DC power adapter, such as the PWRADP-01 (DA-48Z12)
AC/DC Power Adapter. The power adapter is ordered separately. For installation
information for the power adapter and anti-theft cable/lock device, refer to the TQ6602
Wireless Access Point Installation Guide.
Installing the Wireless Access Point on a Desktop
To install the access point on a table desktop, perform the following procedure:
Note
Allied Telesis recommends installing the wall mounting bracket on the bottom panel of
the wireless access point when installing the device on a table. The bracket will facilitate
airflow through the cooling fins on the bottom of the device.
1.
Place the wireless access point upside down on a table.
2.
Install the two M5 x8mm pan-head mounting-bracket screws (included) fully into the
bottom panel of the wireless access point.
6
5
5. Console Serial
The screw collar provides the proper spacing for the mounting bracket beneath the
Port
screw head.
6. Reset Button
3.
Slide the mounting bracket beneath the screws.
1
4.
Tighten the bracket retaining screw.
5.
Turn the wireless access point upright on the table.
6.
Place the wireless access point at the selected location.
7.
Go to "Cabling and Powering the Wireless Access Point".
Installing the Wireless Access Point on a Wall or Ceiling
Installing the Wall Mounting Bracket
You can install the wireless access point on a wall with the front panel pointing to the left,
down, or right. Do not install it with the front panel pointing up.
Collar
1.
Choose a location and orientation for the access point on the wall or ceiling.
2.
Position the mounting bracket at the selected location for the access point. Review
the following guidelines:
The thumbscrew on the mounting bracket is where the front panel will be.
The ports and connectors are on the back panel, away from the thumbscrew.
2
3
