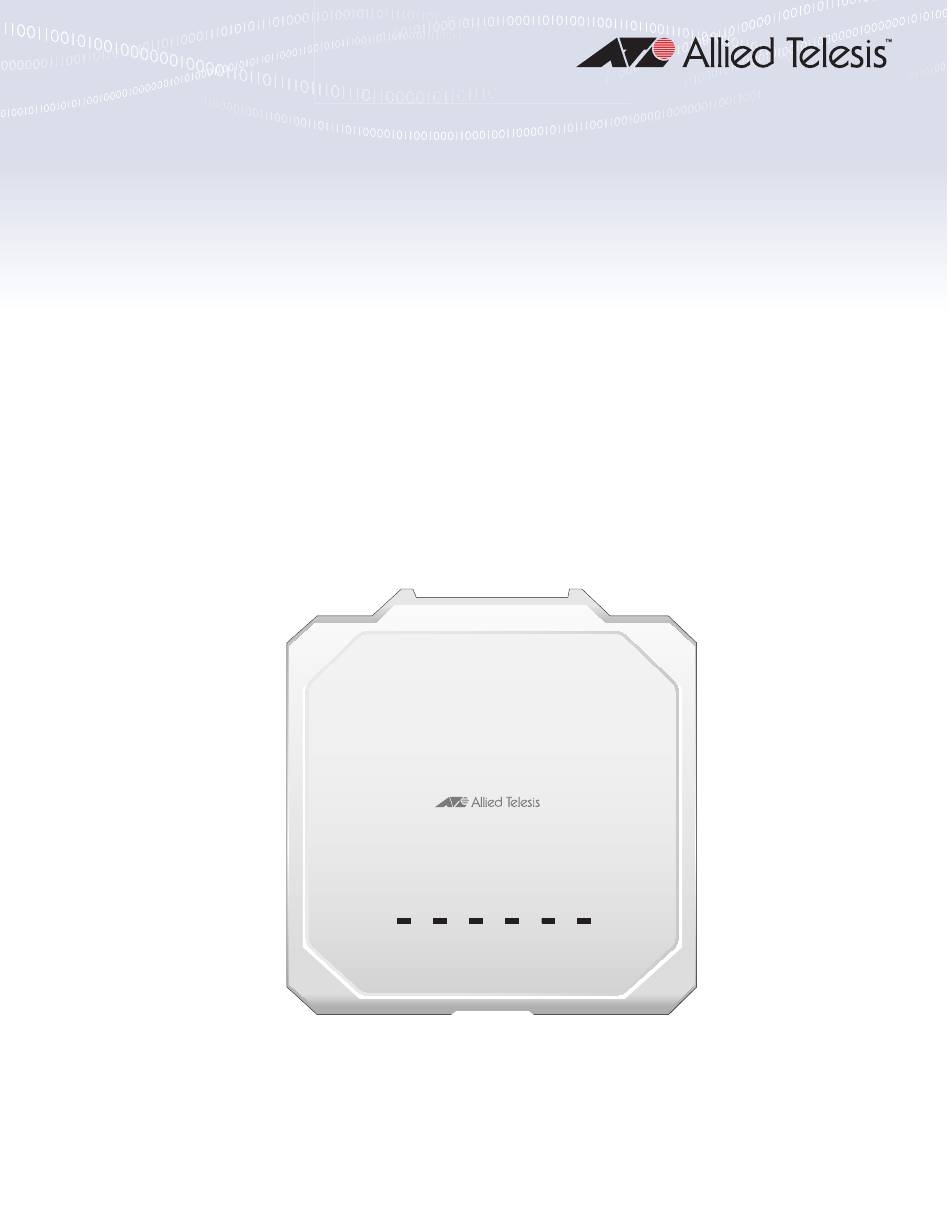

  • Page 1 TQ6403 GEN2 WIRELESS ACCESS POINTS AT-TQ6403 GEN2 ® IEEE802.11ax Tri-radio 5G/5G/2.4GHz 2x2+2x2+2x2+Bluetooth Low Energy Wireless AP AT-TQm6403 GEN2 IEEE802.11ax Tri-radio 5G/5G/2.4GHz 2x2+2x2+2x2 Wireless AP PWR/ PORT1 PORT2 (POE) (POE) 2.4GHz 5GHz1 5GHz2 6060 Installation Guide 613-003092 Rev. A...
  • Page 2 Allied Telesis, Inc. has been advised of, known, or should have known, the...
  • Page 3 European Union Restriction of the Use of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment This Allied Telesis RoHS-compliant product conforms to the European Union Restriction of the Use of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment. Allied Telesis ensures RoHS conformance by requiring supplier Declarations of Conformity, monitoring incoming materials, and maintaining manufacturing process controls.
  • Page 4 Safety and Electromagnetic Emissions Standard Compliance RoHs compliant  European Union RoHS (Directive 2011/65/EU of the European Parliament and of the Council  of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.) Wire Communication IEEE 802.1...
  • Page 5 TQ6403 GEN2 Access Points Installation Guide Electro Magnetic Interference (EMI) FCC part15 Subpart B/ Class B  EN55032 Class B  VCCI-CISPR 32 / Class B  AS/NZS CISPR 32  Electro Magnetic Susceptibility - EN55024 and EN55035 IEC 61000-4-2 ...
  • Page 6 AS/NZS CISPR 32  AS/NZS 4268  ICES-003  RSS-102  RSS-247  Japan JATE  ARIB STD-T66  ARIB STD-T71  Hong Kong OFCA India WPC Malaysia SIRIM Singapore IMDA TS SRD Complies with IMDA Standards DB102434 Figure 1. Singapore IMDA Logo Taiwan BSMI &...
  • Page 7 PDF document  titled Translated Safety Statements on the Allied Telesis website at www.alliedtelesis.com/library. Remarque: Les consignes de sécurité portant le symbole  sont traduites dans plusieurs langues dans le document Translated Safety Statements, disponible à...

  • Page 9: Table Of Contents

    Contents Preface ................................15 Safety Symbols Used in this Document ....................16 Contacting Allied Telesis ........................... 17 Chapter 1: Product Description ........................19 Features ..............................20 Hardware Components ..........................21 Cable Hide............................23 Console Port............................23 Power Switch............................23 Kensington Lock Hole.......................... 23 Reset Button............................
  • Page 10 Contents PoE+ Power Requirements........................56 Cable Specifications ...........................57 LAN Ports (PORT1 and PORT2) Specifications and Pinouts..............58 Port Specifications ..........................58 Port Pinouts............................58 Appendix B: Regulatory Statements ......................59 Federal Communication Commission Interference Statement ..............60 Industry Canada Statement........................62 Europe - EU Declaration of Conformity ......................64 Operating Frequencies and Maximum Transmission Power Levels ............64 Radiation Exposure Statement ......................65 Importer..............................65...
  • Page 11 Figures Figure 1: Singapore IMDA Logo ........................6 Figure 2: Access Point Top View........................21 Figure 3: Access Point Bottom View ....................... 21 Figure 4: Front Edge View..........................22 Figure 5: Back Edge View ..........................22 Figure 6: Left Edge View ..........................22 Figure 7: PORT1 and PORT2 in a Static LAG ....................
  • Page 12 List of Figures...
  • Page 13 Tables Table 1. LED Status Information ........................29 Table 2. Shipping Box Components ....................... 35 Table 3. Physical Specifications ........................55 Table 4. Environmental Specifications ......................55 Table 5. External AC/DC Adapter Specifications ................... 56 Table 6. PoE+ Power Specifications on LAN Ports ..................56 Table 7.
  • Page 14 List of Tables...

  • Page 15: Preface

    This guide contains the hardware installation instructions for the following access points: TQ6403 GEN2  TQm6403 GEN2  This preface contains the following sections: “Safety Symbols Used in this Document” on page 16  “Contacting Allied Telesis” on page 17 ...

  • Page 16: Safety Symbols Used In This Document

    Preface Safety Symbols Used in this Document This document uses the following conventions. Note Notes provide additional information. Caution Cautions inform you that performing or omitting a specific action may result in equipment damage or loss of data. Warning Warnings inform you that performing or omitting a specific action may result in bodily injury.

  • Page 17: Contacting Allied Telesis

    TQ6403 GEN2 Access Points Installation Guide Contacting Allied Telesis If you need assistance with this product, visit the Allied Telesis web site at www.alliedtelesis.com/support.
  • Page 18 Preface...

  • Page 19: Chapter 1: Product Description

    Chapter 1 Product Description The sections in this chapter describe the hardware components of the TQ6403 GEN2 and TQm6403 GEN2 access points: “Features” on page 20  “Hardware Components” on page 21  “PORT1 and PORT2 LAN Ports” on page 24 ...

  • Page 20: Features

    Chapter 1: Product Description Features Hardware features include: One 2.4GHz radio  Two 5GHz radios  Internal omni-directional antennas  Two 100/1000Mbps/2.5G Ethernet ports with RJ-45 connectors  PoE+ Class 4 powered device  One Reset button for restoring the default settings ...

  • Page 21: Hardware Components

    TQ6403 GEN2 Access Points Installation Guide Hardware Components The top view of the TQ6403 GEN2 and TQm6403 GEN2 access points is illustrated in Figure 1. Back Edge Front Edge Figure 1. Access Point Top View The bottom view is illustrated in Figure 2. Back Edge Cable Hide...
  • Page 22 Chapter 1: Product Description The front edge view is illustrated in Figure 3. Mounting Bracket Thumb Screw Hole Figure 3. Front Edge View The back edge view is illustrated in Figure 4. Console Port DC IN Connector for AC/DC Adapter PORT1 POE+ Power Switch PORT2 POE+...

  • Page 23: Cable Hide

    TQ6403 GEN2 Access Points Installation Guide Cable Hide The top cover of the access point is larger than the access point chassis to create space on the back for cable connectors and cables shown in Figure 2 on page 21. Console Port The Console Serial port on the back panel is for manufacturing purposes only.

  • Page 24: Port1 And Port2 Lan Ports

    Chapter 1: Product Description PORT1 and PORT2 LAN Ports The wireless access point has two Ethernet ports, labeled PORT1 and PORT2. You use the ports to connect the wireless access point to your wired network. Here are their basic properties: PORT1 and PORT2 support PoE+.

  • Page 25: Cascade Mode

    TQ6403 GEN2 Access Points Installation Guide Note Do not enable and cable the PORT2 until after you have configured the other network device for the static LAG. Cascade Mode PORT2 also has a Cascade mode. The mode allows you to use the port to connect another device to your network.

  • Page 26: Power Over Ethernet Plus (Poe+)

    Chapter 1: Product Description Power Over You can power the wireless access point with either PoE+ on PORT1, PORT2, or an AC/DC power adapter. The wireless access point is a PoE+ Ethernet Plus Class 4 powered devices, with maximum power consumption of 25.5 (PoE+) watts.

  • Page 27: Cable Requirements

    TQ6403 GEN2 Access Points Installation Guide You cannot disable automatic MDIX detection. For automatic MDIX detection to work properly, this feature must also be present on the Ethernet switch. The port defaults to MDIX if it is connected to a network device that does not support automatic MDIX detection.

  • Page 28: Ac Adapter For External Power Supply

    AC power adapter as its primary power source and PoE+ as redundant power. For technical specifications, refer to “Power Specifications” on page 56. The PWRADP-01 (DA-48Z12) Power Adapter, shown in Figure 9, from Allied Telesis is approved for this product. Figure 9. PWRADP-01 (DA-48Z12) Power Adapter...

  • Page 29: Leds

    TQ6403 GEN2 Access Points Installation Guide LEDs The LEDs on the top panel display status information. See Figure 10 for LEDs and Table 1 for the status definition. Figure 10. Top View - LEDs Table 1. LED Status Information State Description Green The access point is powered ON and...
  • Page 30 Chapter 1: Product Description Table 1. LED Status Information (Continued) State Description Green The 5GHz radio is enabled. 5GHz The 5GHz radio is disabled. Green The 5GHz radio is enabled. 5GHz The 5GHz radio is disabled.

  • Page 31: Chapter 2: Installing The Wireless Access Point

    Chapter 2 Installing the Wireless Access Point This chapter contains the installation procedures for the TQ6403 Access Points. The procedures are detailed in the following sections: “Reviewing Safety Precautions” on page 32  “Unpacking the Shipping Box” on page 35 ...

  • Page 32: Reviewing Safety Precautions

    Chapter 2: Installing the Wireless Access Point Reviewing Safety Precautions Please review the following safety precautions before installing the access point. Important: Safety statements that have the  symbol are translated into multiple languages in the Translated Safety Statements document, which is available at www.alliedtelesis.com/library.
  • Page 33 TQ6403 GEN2 Access Points Installation Guide Warning FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.  Note The access point must be powered by: 1.
  • Page 34 Chapter 2: Installing the Wireless Access Point Note If you are not using PoE to power to unit, use only an approved AC/ DC adapter. Refer to “Power Specifications” on page 56. Caution The unit does not contain serviceable components. Please return damaged units for servicing.

  • Page 35: Unpacking The Shipping Box

    Allied Telesis. 2. Verify the contents of the shipping box listed in Table 2. If any item is missing or damaged, contact your Allied Telesis sales representative for assistance. Table 2: Shipping Box Components...

  • Page 36: Reviewing Installation Guidelines

    Chapter 2: Installing the Wireless Access Point Reviewing Installation Guidelines Review the following guidelines before installing the access point: The ceiling or wall mounting surface must be of proper material to  accommodate the screws and strong enough to support the weight of the access point and cables.
  • Page 37 TQ6403 GEN2 Access Points Installation Guide Ceiling Installation Wall Installation Table Installation Figure 11. Approved Installation Orientations on a Ceiling, Wall, or Table...

  • Page 38: Installing The Access Point On A Table

    Chapter 2: Installing the Wireless Access Point Installing the Access Point on a Table You need the following items to install the access point on a table: TQ6403 GEN2 or TQm6403 GEN2 Access Point  One or two Ethernet cables ...

  • Page 39: Overview To Installing The Access Point On A Wall Or Ceiling

    TQ6403 GEN2 Access Points Installation Guide Overview to Installing the Access Point on a Wall or Ceiling Here are the procedures for installing the wireless access point on a wall or ceiling: “Pre-fitting the Mounting Bracket on the Access Point” on page 40 ...

  • Page 40: Pre-Fitting The Mounting Bracket On The Access Point

    Chapter 2: Installing the Wireless Access Point Pre-fitting the Mounting Bracket on the Access Point To pre-fit the mounting bracket on the access point, perform the following procedure: 1. Place the wireless access point upside down on a table. 2. Install the two screws (provided) fully into the bottom panel of the access point.
  • Page 41 TQ6403 GEN2 Access Points Installation Guide 3. Make sure that the mounting bracket fits to the access point by sliding the bracket beneath the screws as shown in Figure 14. Figure 14. Attaching the Mounting Bracket on the Access Point 4.

  • Page 42: Installing The Mounting Bracket On A Wall Or Ceiling

    Chapter 2: Installing the Wireless Access Point Installing the Mounting Bracket on a Wall or Ceiling To install the mounting bracket on a wall of ceiling, perform the following procedure: 1. Choose the location and orientation for the access point on the wall or ceiling.
  • Page 43 TQ6403 GEN2 Access Points Installation Guide 5. Install two M4 screws and anchors (if required). Leave the screws loose enough so that the bracket can slide under the screw heads. Refer to Figure 17. Note For a wooden wall or ceiling, use M4 x 25 mm flat-head wood screws and anchors, if required.
  • Page 44 Chapter 2: Installing the Wireless Access Point 6. Insert the openings of the bracket key-hole slots under the two screw heads and slide the bracket into the narrow end of the key-hole slot openings. See Figure 18. Figure 18. Installing the Mount Bracket On the Screws 7.
  • Page 45 TQ6403 GEN2 Access Points Installation Guide 9. Install and tighten two M4 screws (not provided) in the holes prepared in Step 8. The bracket installation is now complete.See Figure 20. Figure 20. Securing the Mount Bracket 10. Go to “Connecting Ethernet Cables to PORT1 and PORT2” on page 46.

  • Page 46: Connecting Ethernet Cables To Port1 And Port2

    Chapter 2: Installing the Wireless Access Point Connecting Ethernet Cables to PORT1 and PORT2 This section describes the instructions for connecting Ethernet cables to PORT1 and PORT2. Guidelines Review the following guidelines before connecting cables to PORT1 and PORT2: For information on cable specifications, see “Cable Requirements” ...
  • Page 47 TQ6403 GEN2 Access Points Installation Guide 2. Connect the other end of the Ethernet cable to a network Ethernet device, such as an Ethernet switch or router. Note If the device is PoE+ power sourcing equipment (PSE), the access point begins to power on and initialize its management software. 3.

  • Page 48: Connecting The Ac Power Adapter

    AC power adapter, or both. A wireless access point that is powered by both methods uses the AC adapter as its primary power and PoE as redundant power. For an AC power adapter, Allied Telesis recommends the MWS0091 Power Adapter.

  • Page 49: Attaching The Access Point To The Mounting Bracket

    TQ6403 GEN2 Access Points Installation Guide Attaching the Access Point to the Mounting Bracket To attach the wireless access point on the mounting bracket on the wall or ceiling, perform the following procedure: 1. Align the bottom of the access point over the bracket so that the two screws on the bottom of the device fit into the bracket keyholes.
  • Page 50 Chapter 2: Installing the Wireless Access Point Figure 25. Seating the Access Point on the Mounting Bracket 3. Tighten the thumbscrew to secure the access point to the mounting bracket. Refer to Figure 26. Figure 26. Tightening the Mounting Bracket Thumbscrew...
  • Page 51 TQ6403 GEN2 Access Points Installation Guide 4. Place the Ethernet cable(s) and power cable (if any) along the cable guides inside of the top cover in the cable hide space. See Figure 27. Figure 27. Fitting the Cables in the Cable Hide 5.

  • Page 52: Installing An Anti-Theft Device

    Note Anti-theft devices are not available from Allied Telesis. 1. Follow the instructions provided with the vendor’s anti-theft device for the installation. See Figure 28 for the Kensington lock port location.

  • Page 53: Starting The First Management Session

    TQ6403 GEN2 Access Points Installation Guide Starting the First Management Session This section contains an abbreviated version of the procedure to start the first management session. For complete instructions, refer to the TQ6403 GEN2 and TQm6403 GEN2 Management Software User’s Guide. The wireless access point firmware includes a DHCP client.
  • Page 54 Chapter 2: Installing the Wireless Access Point...

  • Page 55: Appendix A: Technical Specifications

    Appendix A Technical Specifications This appendix contains the specifications for the TQ6403 Access Points in the following sections: “Physical Specifications”  “Environmental Specifications”  “Power Specifications” on page 56  “Cable Specifications” on page 57  “LAN Ports (PORT1 and PORT2) Specifications and Pinouts” on ...

  • Page 56: Power Specifications

    Table 6 lists the PoE+ specifications for the PoE LAN ports (PORT1 and PORT2). Requirements Table 6. PoE+ Power Specifications on LAN Ports TQ6403 GEN2 TQm6403 GEN2 Maximum Power Consumption 24.1 watts 23.9 watts Rated Voltage DC 48V Rated Current 0.67A Note Allied Telesis recommends using UL-certified PoE injectors.

  • Page 57: Cable Specifications

    TQ6403 GEN2 Access Points Installation Guide Cable Specifications The minimum cable requirements for PORT1 and PORT2 are listed here. 100Mbps ports: Standard TIA/EIA 568-B-compliant Category 3  shielded or unshielded cabling. 1G/2.5G ports: Standard TIA/EIA 568-A-compliant Category 5 or TIA/ ...

  • Page 58: Lan Ports (Port1 And Port2) Specifications And Pinouts

    Appendix A: Technical Specifications LAN Ports (PORT1 and PORT2) Specifications and Pinouts Port The LAN port specifications are shown in Table 7. Specifications Table 7. LAN Port Specifications Connector Specification PoE standard - PORT1 and PORT2 IEEE 802.3at (class 4) Port Pinouts The pin signal definitions for PORT1 and PORT2 are given here.

  • Page 59: Appendix B: Regulatory Statements

    Appendix B Regulatory Statements This appendix contains the following regulatory statements: “Federal Communication Commission Interference Statement” on  page 60 “Industry Canada Statement” on page 62  “Europe - EU Declaration of Conformity” on page 64  “UK - UKCA Declaration of Conformity” on page 66 ...

  • Page 60: Federal Communication Commission Interference Statement

    Appendix B: Regulatory Statements Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 61 Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The AT-TQ6403 GEN2 and AT-TQm6403 GEN2 access points should be installed and operated with minimum distance 51 cm between the radiator and your body.

  • Page 62: Industry Canada Statement

    Radiation Exposure Statement: This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. The AT-TQ6403 GEN2 and AT-TQm6403 GEN2 access points should be installed and operated with minimum distance 25 cm between the radiator and your body.
  • Page 63 Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. Les points d'accès AT-TQ6403 GEN2 et AT-TQm6403 GEN2 doivent être installés et utilisés avec une distance minimale de 25 cm entre le radiateur et votre corps.

  • Page 64: Europe - Eu Declaration Of Conformity

    Appendix B: Regulatory Statements Europe - EU Declaration of Conformity Hereby, Allied Telesis declares that the radio equipment type [AT-TQ6403 GEN2, AT-TQm6403 GEN2] is in compliance with Directive 2014/53/EU. Operating The operating frequencies and maximum transmission power levels for wireless devices operated in the EU are listed below:...

  • Page 65: Radiation Exposure Statement

    20 cm between the radiator and your Statement body. Importer Allied Telesis International BV Incheonweg 7, 1437 EK Rozenburg Note Contact Allied Telesis for the EU conformity statement. To contact Allied Telesis, visit our web site at www.alliedtelesis.com/contact.

  • Page 66: Uk - Ukca Declaration Of Conformity

    Appendix B: Regulatory Statements UK - UKCA Declaration of Conformity Hereby, Allied Telesis declares that the radio equipment type [AT-TQ6403 GEN2, AT-TQm6403 GEN2] is in compliance with the Radio Equipment Regulations 2017 Operating The operating frequencies and maximum transmission power levels for...

  • Page 67: Radiation Exposure Statement

    20 cm between the radiator and your Statement body. Importer Allied Telesis International BV 11 Pine Court, Kembrey Park Swindon Wiltshire SN2 8AD, United Kingdom Note Contact Allied Telesis for the UK conformity statement. To contact Allied Telesis, visit our web site at www.alliedtelesis.com/contact.
  • Page 68 Appendix B: Regulatory Statements...

This manual is also suitable for:

Tq6403 gen2At-tqm6403 gen2
