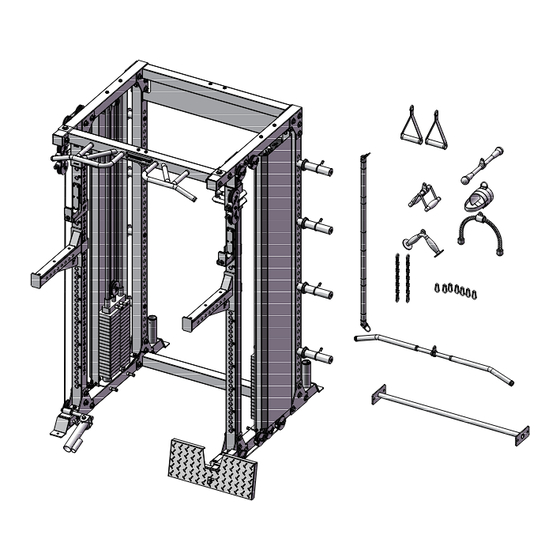

Force F-X15-V2 User Manual

All-in-one trainer
Hide thumbs

Advertisement

Quick Links

Download this manual
F-X15-V2 ALL-IN-ONE TRAINER
USER MANUAL | F-X15-V2

Advertisement

loading
Need help?

Need help?

Do you have a question about the F-X15-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Force F-X15-V2

Summary of Contents for Force F-X15-V2

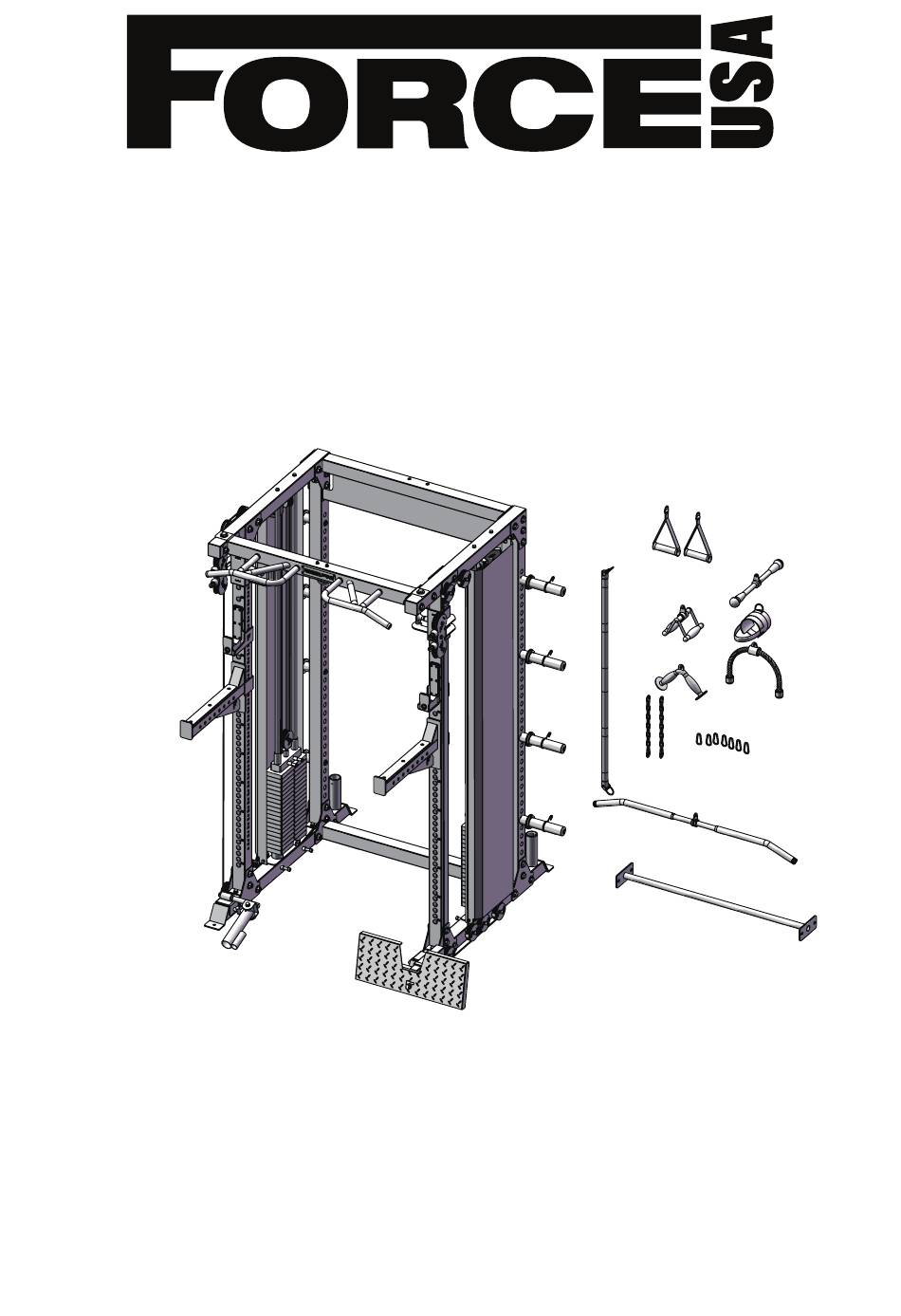

  • Page 1 F-X15-V2 ALL-IN-ONE TRAINER USER MANUAL | F-X15-V2...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGES SECTION Before you Start and Safety Information ForceUSA App Preventative Maintenance 5-12 Parts Identification 13-30 Assembly Steps 31-49 Exploded Diagrams 50-53 Parts Lists Warranty Information F-X15-V2...

  • Page 3: Before You Start And Safety Information

    Only use attachments recommended by the manufacturer Never operate if parts are not functioning correctly Always stretch prior to using equipment Stop immediately if you experience any pain, dizziness or nausea Before starting any exercise program consult your doctor F-X15-V2...

  • Page 4: Forceusa App

    FORCE USA TRAINING APP The Force USA training app offers programs, tutorials, progress tracking and more. Not compatible with all Force USA equipment. DOWNLOAD F-X15-V2...

  • Page 5: Preventative Maintenance

    (where applicable) Inspect pulleys for any damage or cracks (where applicable) Knurling can be cleaned using a soft bristled brush to help remove any particles that may be nestled within the knurling Vacuum around the machine/equipment to prevent dust acclimation F-X15-V2...

  • Page 6: Parts Identification

    Rear Base Frame Rear Base Fixing Plate Front Upright - Left (silver) Front Upright - Right (silver) Front External Base Fixing Plate - Left Front External Base Fixing Plate - Right Pulley Slider - Left Pulley Slider - Right F-X15-V2...
  • Page 7 (Includes Top Weight Plate) Weight Stack Pulley Frame Rubber Bumper - Weight Stack Weight Stack Selector Pin Weight Stack Locking Shaft Internal Hex Column Screw Upper Frame - Right Upper Frame - Left Logo Board Rear External Top Fixing Plate F-X15-V2...
  • Page 8 Front External Top Fixing Plate - Left Front Internal Top Fixing Plate Front External Top Fixing Plate - Right Chin Up Frame Pulley Cover Pulley (96mm) Weight Stack Cable External Weight Stack Shield Plate Storage Horn Spring Collars Core Trainer Bracket F-X15-V2...
  • Page 9 Parts Schematic Diagram Core Trainer T-Shaped Pin Low Row Foot Plate Support Frame Low Row Foot Plate Front Safety - Right Front Safety - Left J-Hook - Right J-Hook - Left J-Hook Flat Shock Pad Horizontal Bar Single Stirrup - Nylon F-X15-V2...
  • Page 10 PARTS IDENTIFICATION Key No. Description Quantity Parts Schematic Diagram Extension Chain Carabiner V Bar Lat Pull Down Bar Connection Bar -Straight Tricep Rope Short Straight Bar Ankle Cuff Close Grip Triangle F-X15-V2...
  • Page 11 45.φ8 Flat Washer 8PCS 25.Ф10 Flat Washer 24PCS 48.φ10 Big Flat Washer 8PCS 10.φ17×φ40×3 Flat Washer 74PCS φ10 Spring Washer 12PCS M16 Lock Nut 36PCS 4.φ12 Flat Washer 8PCS 5.φ12 Spring Washer 8PCS 39.M10×45 Hexagon Bolt 4PCS 40.M10 Lock Nut 4PCS F-X15-V2...
  • Page 12 PARTS IDENTIFICATION 44.M8×16 Hexagon Bolt 8PCS 49.M10×25 Hexagon Bolt 8PCS 3.M12×25 Hexagon Bolt 8PCS 24.M10×50 Inner Hexagon Column Screw 12PCS 6.M10×95 Hexagon Bolt 4PCS 28.M16×105 Hexagon Bolt 8PCS 9.M16×110 Hexagon Bolt 30PCS 14-17 1PC 4mm 1PC 8mm 1PC 17-19 2PCS F-X15-V2...
  • Page 13 59.J-Hook Flat Shock 61.Single Stirrup - Nylon 64.V-bar 1pcs Pad 2pcs 2pcs 63.Carabiner 11pcs 70.Close Grip Triangle 1pcs 68.Short Straight Bar 1pcs 69.Ankle Cuff 1pcs 67.Tricep Rope 1pcs 66.Connection Bar -Straight 1pcs 65.Lat Pull Down Bar 1pcs （60）Horizontal Bar 1pcs F-X15-V2...

  • Page 14: Assembly Steps

    ASSEMBLY STEP 1 Description Note Quantity Key No. Base Frame - Left Rear Upright Hexagon Bolt M12×25 φ12 Flat Washer Spring Washer φ12 Base Frame - Right F-X15-V2...
  • Page 15 ASSEMBLY STEP 2 11 10 Key No. Description Note Quantity Rear Base Frame Rear Base Fixing Plate Hexagon Bolt M16×110 Flat Washer φ17×φ40×3 Lock Nut F-X15-V2...
  • Page 16 ASSEMBLY STEP 3 Key No. Description Note Quantity Hexagon Bolt M12×25 Flat Washer φ12 φ12 Spring Washer Front Upright - Left (silver) Front Upright - Right (silver) F-X15-V2...
  • Page 17 ASSEMBLY STEP 4 15 10 Key No. Description Note Quantity T-shaped Fixing Plate Hexagon Bolt M16×110 Flat Washer φ17×φ40×3 Lock Nut Front External Base Fixing Plate - Left Front External Base Fixing Plate - Right F-X15-V2...
  • Page 18 ASSEMBLY STEP 5 Key No. Note Quantity Description Pulley Slider - Left Pulley Slider - Right F-X15-V2...
  • Page 19 ASSEMBLY STEP 6 Key No. Description Note Quantity Weight Stack Guide Rod Weight Stack (Includes Top Weight Plate) Weight Stack Pulley Frame Rubber Bumper - Weight Stack φ60×φ27×42 φ10×100 Weight Stack Selector Pin F-X15-V2...
  • Page 20 ASSEMBLY STEP 7 Key No. Description Note Quantity Weight Stack Locking Shaft φ17.8×17-M12 13×30-M10 Internal Hex Column Screw F-X15-V2...
  • Page 21 ASSEMBLY STEP 8 Quantity Key No. Description Note Flat Washer φ17×φ40×3 Lock Nut Flat Washer φ10 Hexagon Bolt M10×95 Upper Frame - Right Hexagon Bolt M16×105 Upper Frame - Left F-X15-V2...
  • Page 22 ASSEMBLY STEP 9 Quantity Key No. Description Note M16×110 Hexagon Bolt Flat Washer φ17×φ40×3 Lock Nut Logo Board Rear External Top Fixing Plate F-X15-V2...
  • Page 23 ASSEMBLY STEP 10 10 32 33 10 11 11 Quantity Key No. Description Note Hexagon Bolt M16×110 Flat Washer φ17×φ40×3 Lock Nut Front External Top Fixing Plate - Left Front Internal Top Fixing Plate Front External Top Fixing Plate - Right F-X15-V2...
  • Page 24 ASSEMBLY STEP 11 Quantity Key No. Description Note Flat Washer φ17×φ40×3 Lock Nut Hexagon Bolt M16×105 Chin Up Frame F-X15-V2...
  • Page 25 ASSEMBLY STEP 12 25 36 Description Quantity Key No. Note Flat Washer φ10 Pulley Cover Pulley (96mm) φ92 Spring Washer φ10 Hexagon Bolt M10×45 Lock Nut Hexagon Socket Button Head Screw M10×50 F-X15-V2...
  • Page 26 ASSEMBLY STEP 13 Description Quantity Key No. Note Weight Stack Cable F-X15-V2...
  • Page 27 ASSEMBLY DRAWING Attention: Avoid the plate to rub with the wire. F-X15-V2...
  • Page 28 ASSEMBLY STEP 14 Quantity Key No. Description Note External Weight Stack Shield Hexagon Bolt M8×16 Flat Washer φ8 F-X15-V2...
  • Page 29 ASSEMBLY STEP 15 Quantity Key No. Description Note Plate Storage Horn Assembly Part Spring Collars φ50 Big Flat Washer φ30*φ10*3 M10×25 Hexagon Bolt F-X15-V2...
  • Page 30 ASSEMBLY STEP 16 Quantity Key No. Description Note Core Trainer Bracket Core Trainer T-Shaped Pin φ10×100 Low Row Foot Plate Support Frame Low Row Foot Plate F-X15-V2...
  • Page 31 ASSEMBLY STEP 17 Quantity Key No. Description Note Front Safety - Right Front Safety - Left J-Hook - Right J-Hook - Left F-X15-V2...

  • Page 32: Exploded Diagrams

    EXPLODED DIAGRAM 1.Base Frame - Left, 1 pc 118 118 Quantity Key No. Description Note Ground Tube Left Countersunk Hexagon Rivet Nut Barbell Bar Protection Bushing φ63*5.8×175 F-X15-V2...
  • Page 33 EXPLODED DIAGRAM 6.Base Frame - Right, 1 pc Quantity Key No. Description Note Barbell Bar Protection Bushing φ63*5.8×175 Ground Tube Right Countersunk Hexagon Rivet Nut F-X15-V2...
  • Page 34 φ10 Hexagon Bolt M10×45 Lock Nut Hexagon Bolt M10×25 Umbrella Pin φ12×M20×40 Two Layer Spring Nut φ23-M10 Sliding Sleeve Left Welding Part Bushing 75-89 Internal Thread Shaft Φ19.8*50 φ33×φ29×φ20×18 Powder Sleeve Three Pulley Weldment Pulley φ60 Handgrip Tube φ25×2×138 F-X15-V2...
  • Page 35 Spring Washer φ10 Hexagon Bolt M10×45 Lock Nut Hexagon Bolt M10×25 Umbrella Pin φ12×M20×40 Two Layer Spring Nut φ23-M10 Bushing 75-89 Φ19.8*50 Internal Thread Shaft Powder Sleeve φ33×φ29×φ20×18 Three Pulley Weldment Pulley φ60 Handgrip Tube φ25×2×138 Sliding Sleeve Right F-X15-V2...
  • Page 36 EXPLODED DIAGRAM 18.Weight Stack Guide Rod, 4 pcs 2218 Quantity Key No. Description Note Guide Rod φ25×1.5 φ23-M10 Two Layer Spring Nut F-X15-V2...
  • Page 37 EXPLODED DIAGRAM 19.Weight Stack (Includes Top Weight Plate), 2 pcs Quantity Key No. Description Note Selector Rod φ25 Weight Pin 10×60 Weight 19+1(90KG) F-X15-V2...
  • Page 38 EXPLODED DIAGRAM 20.Weight Stack Pulley Frame, 2 pcs Quantity Key No. Description Note Flat Washer φ10 Pulley (96mm) φ92 Hexagon Bolt M10×45 Lock Nut Weight Pulley Bracket Hexagon Nut F-X15-V2...
  • Page 39 EXPLODED DIAGRAM 29.Upper Frame - Left, 1 pc Quantity Key No. Description Note Square Tube Inner Plug □75×75×2.5 Upper Beam Left Weldment F-X15-V2...
  • Page 40 EXPLODED DIAGRAM 30.Logo Board , 1 pc Quantity Key No. Description Note Rear Upper Beam Countersunk Hexagon Rivet Nut F-X15-V2...
  • Page 41 EXPLODED DIAGRAM 35.Chin Up Frame, 1 pc Quantity Key No. Description Note φ8 Flat Washer Front Upper Beam Face Hanging Ring Round Tube Plug φ32×1.5 Lock Nut Oval Round No Core Rivet 4×10 Scutcheon T1.5 F-X15-V2...
  • Page 42 46.Plate Storage Horn, 8 pcs Quantity Key No. Description Note Barbell Plate Holder Outer Sleeve Tube φ49.5*0.6*200 Rubber Stop Collar φ70×φ50×φ10 Barbell Bar Holder Inner Rod Four Layer Spring Screw φ23-M10 Decorative Cover φ11×φ18×φ42×φ50 M10×25 Hexagon Socket Button Head Screw F-X15-V2...
  • Page 43 M12×25 Flat Washer φ12 φ12 Spring Washer Core Trainer New Weldment Double Barbell Core Trainer Powder Sleeve φ50×φ47×φ25×15 Internal Thread Shaft φ25*77*M12 Barbell Bar Plug φ25*86 Barbell Bar Limit Shaft φ22*39.5 Limit Ring φ25*φ20*5 Round Tube Inner Plug Φ25×2 F-X15-V2...
  • Page 44 EXPLODED DIAGRAM 53.Low Row Foot Plate Support Frame, 1 pc Quantity Key No. Description Note Foot Plate Bracket Weldment Reducer Sleeve □50×50/45×45 Umbrella Pin φ12×M20×40 Square Tube Inner Plug □60×60×2 F-X15-V2...
  • Page 45 EXPLODED DIAGRAM 55.Front Safety - Right, 1 pc Quantity Key No. Description Note Safety Spotter Weldment Right Safety Spotter Rubber Sheet Countersunk Hexagon Screw M6×16 F-X15-V2...
  • Page 46 EXPLODED DIAGRAM 56.Front Safety - Left, 1 pc Quantity Key No. Description Note Safety Spotter Rubber Sheet Countersunk Hexagon Screw M6×16 Safety Spotter Weldment Left F-X15-V2...
  • Page 47 Key No. Description Note Big Flat Washer φ30*φ10*3 J Hook Right Weldment J Hook Rollar φ40*88 Deep Groove Ball Bearing 6000 Rubber Sheet φ190×45×7 Hexagon Socket Button Head Screw M10×115 Countersunk Hexagon Screw M6×12 J Hook Front Rubber Sheet 12.3*96 F-X15-V2...
  • Page 48 Quantity Key No. Description Note Big Flat Washer φ30*φ10*3 J Hook Rollar φ40*88 Deep Groove Ball Bearing 6000 Rubber Sheet φ190×45×7 Hexagon Socket Button Head Screw M10×115 Countersunk Hexagon Screw M6×12 J Hook Front Rubber Sheet 12.3*96 J-hook Left F-X15-V2...
  • Page 49 Welding Part φ17*38 Internal Thread Shaft Gasket φ33*φ12.5*T3 Deep Groove Ball Bearing 6001-2RS φ33*φ22 Bearing Sleeve T-shaped Cotter Pin φ9.4*φ6.3 Cotter Pin Bushing φ13*φ9.45 U-shaped Fastener Stop Collar M8×16 Hexagon Socket Button Head Screw φ8 Spring Gasket Flat Gasket φ8 F-X15-V2...
  • Page 50 EXPLODED DIAGRAM 121.Upper Beam Right Weldment，1pc Quantity Key No. Description Note Upper Beam Right Weldment Square Tube Inner Plug □75×75×2.5 F-X15-V2...

  • Page 51: Parts Lists

    Logo Board Rear External Top Fixing Plate Front External Top Fixing Plate - Left Front Internal Top Fixing Plate Front External Top Fixing Plate - Right Chin Up Frame Pulley Cover φ92 Pulley (96mm) φ10 Spring Washer M10×45 Hexagon Bolt F-X15-V2...
  • Page 52 Ankle Cuff Close Grip Triangle Safety Spotter Weldment Right Safety Spotter Rubber Sheet Countersunk Hexagon Screw M6×16 Safety Spotter Weldment Left Core Trainer New Weldment Double Barbell Core Trainer Powder Sleeve φ50×φ47×φ25×15 Internal Thread Shaft φ25*77*M12 Barbell Bar Plug φ25*86 F-X15-V2...
  • Page 53 Selector Rod φ25 Weight Pin 10×60 Weight 19+1(90KG) Weight Pulley Bracket Welding Part Hexagon Nut Sliding Sleeve Left Welding Part 75-89 Bushing Internal Thread Shaft Φ19.8*50 Powder Sleeve φ33×φ29×φ20×18 Welding Part Three Pulley Weldment Pulley φ60 Handgrip Tube φ25×2×138 F-X15-V2...
  • Page 54 Internal Thread Shaft φ17*38 Gasket φ33*φ12.5*T3 Deep Groove Ball Bearing 6001-2RS Bearing Sleeve φ33*φ22 φ9.4*φ6.3 T-shaped Cotter Pin Cotter Pin Bushing φ13*φ9.45 U-shaped Fastener Stop Collar Hexagon Socket Button Head Screw M8×16 Spring Gasket φ8 Flat Gasket φ8 J-hook Left F-X15-V2...

  • Page 55: Warranty Information

    Force USA warranty is the responsibility of the user, and the customer will be responsible for any freight charges that apply. Force USA will not be liable for any consequential damages or breach of any implied warranty on the range of Force USA strength equipment.
