Summary of Contents for Walker Edison BR6DSLDR-T

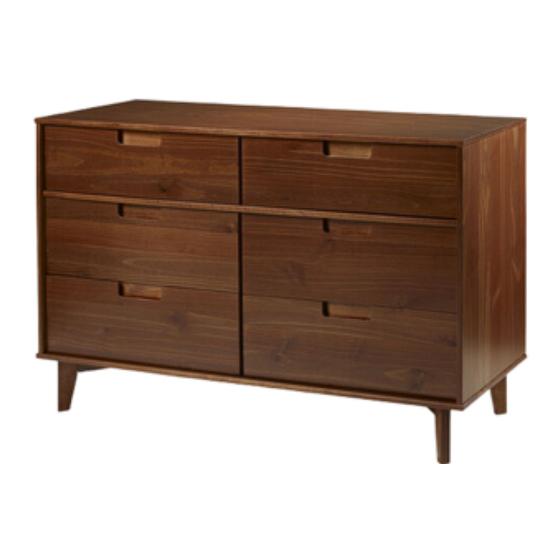

  • Page 1 Item: BR6DSLDR-T Revised 10/2023-V1...
  • Page 2 , hammmer and tape measure...
  • Page 3 The side drawer with WARNING LABEL, should be mounted in highest drawer. Drawer front Top panel Drawer back Left side panel Drawer bottom Right side panel Small drawer front Bottom panel Wood slider Front rail 02 pcs Large wood slider Small left drawer side Right drawer side with warning 01 pc Back panel...
  • Page 4 Ø8*30mm Wooden dowel Ø10*20mm Wooden dowel Ø4*25mm Screw Ø3,5*30mm Screw Ø4,0*40mm Screw Nail Ø10*10mm Screw Ø7*60mm Ø6*31mm Cam bolt Ø15*11mm Cam lock Hex Key Wall anchor Washer Ø4,0*16mm Screw Ø6*35mm Plastic bush Wooden dowel Ø8*40mm...
  • Page 5 Attention to the Step 1 dowel length: ø10*20mm Ø10*20mm Insert wood dowel (B) into part 6 and 17. Step 2 Insert wood dowel (A) into parts 2, 3, 5, 8, 9, 11, 12, 18, 19, 21, 22 and 23. Ø8*30mm...
  • Page 6 Step 3 1 - Ensure cam bolt is installed straight and not at an angle. 2 - Tighten cam bolt until shoulder on cam bolt is flush. Do not over-tigh- ten. Attach cam bolt (H) into the holes in parts 1, 2, 3, 13, and 16 with Phillips head screwdriver.
  • Page 7 Step 4 Rotate part 22. Secure parts 6 to part 2 and 3 with screw (C) and Phillips head screwdriver. Secure parts 17 to part 22 with screw (C) and Phillips head screwdriver. Ø4*25mm...
  • Page 8 Step 5 Attach part 23 to part 2. Step 6 Attach part 5 to part 22. Attach part 5 to part 2.
  • Page 9 Step 7 Align the opening in cam lock to the cam bolt and press into opening. Using a screwdriver, rotate the cam lock until it engages with the cam bolt and locks in place (anywhere between 90-180 degrees). Do not over-tighten the cam lock.
  • Page 10 Step 9 Attach part 1 to parts 2, 3, and 22. Insert Cam lock (I) into the holes in the parts 2, 3, and 22, and attach with Phillips head screwdriver. Ø15*11mm P.10...
  • Page 11 Step 10 Attach part 4 to parts 2, 3 and 22 with Screws (E) and Phillips head screwdriver. Ø4,0*40mm Step 11 Attach part 8 to part 4 with Screws (D) and Phillips head screwdriver. Ø3,5*30mm P.11...
  • Page 12 Step 12 Attach part 9 to part 10. Do these steps twice. Make sure that the assembly is mirrored. Step 13 Use screw (D) to attach part 9 to part 10 with a Phillips head screwdriver. Do these steps twice. Ø3,5*30mm Step 14 Insert wood dowel (A) in the part 9.
  • Page 13 Step 15 FRONT Make sure that the screw of the assembled leg is turn back Ø7*60mm Attach assembled leg to part 4 from inside the unit with bolt (G) and hex key (K). Step 16 Attach part 9 to part 4 with Screws (D) and Phillips head screwdriver.
  • Page 14 Step 17 Name and address of the supplier and date of production. Secure back panel 7 to the dresser back Ø10*10mm with nails (F) and hammer. P.14...
  • Page 15 Step 18 FRONT Insert wood dowel (A) into the front hole in the drawer rails 6 and 17. Ø8*30mm Step 19 Attach part 18 and 21 to part 16. Insert Cam lock (I) into the holes in the parts 18 and 21, and attach with Phillips head screwdriver.
  • Page 16 Step 20 Insert panel 15 into groves and secure part 20 with screws (D) and Phillips head screwdriver. Ø3,5*30mm Step 21 Attach part 11 and 12 to part 13. Insert Cam lock (I) into the holes in the parts 11 and 12, and attach with Phillips head screwdriver.
  • Page 17: Warning Label

    Step 22 Insert panel 15 into groves and secure part 14 with screws (D) and Phillips head screwdriver. Ø3,5*30mm Step 23 The side drawer with WARNING LABEL, should be mounted in highest drawer. Insert wood dowel (P) on the inside of all drawers, with the drawer inside the unit after having passed the wood dowel that is in the drawer slide.
  • Page 18 Step 24 Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before types of anchors. Ø6mm Attach part (L) with screw (N) and washer (M), in the frame of superior panel unit using Phillips head screwdriver. With drilling machine make one hole in the wall, insert part (O) in the hole.
  • Page 19 Assembly Complete! P.19...
