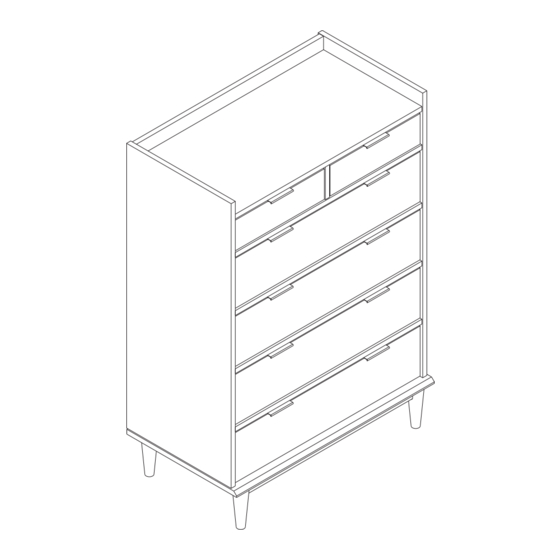

Item: BR6DRLEEDR-T
Assembly Instructions
Please visit our website for the most current instructions, assembly tips, to report damage
or request parts. www.walkeredison.com
Revised
01/2024 - V1
Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.
P.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BR6DRLEEDR-T and is the answer not in the manual?

Questions and answers

Related Manuals for Walker Edison BR6DRLEEDR-T

Summary of Contents for Walker Edison BR6DRLEEDR-T

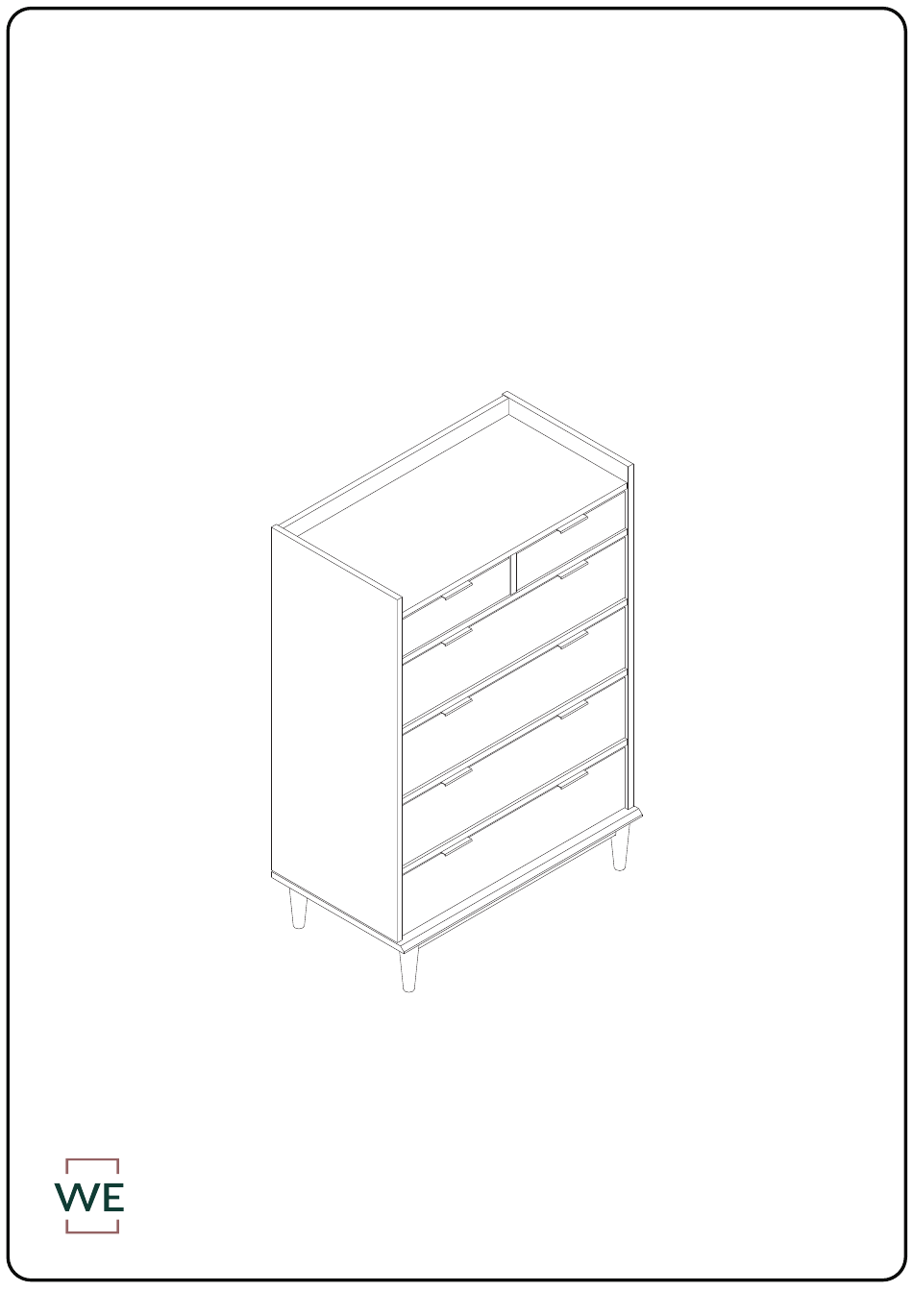

  • Page 1 Item: BR6DRLEEDR-T Assembly Instructions Please visit our website for the most current instructions, assembly tips, to report damage or request parts. www.walkeredison.com Revised 01/2024 - V1 Copyright © 2018, by Walker Edison Furniture Co., LLC, All rights reserved.

  • Page 2: General Assembly Guidelines

    General Assembly Guidelines Ensure that all parts and hardware are available before beginning assembly. Follow each step carefully to ensure the proper assembly of this product. III. Two people are recommended for ease in the assembly of this product. The three main types of hardware used to assemble this product are wood dowels, screws and bolts.

  • Page 3: Parts List

    Parts List The side drawer with WARNING LABEL, should be mou ted in highest drawer. Description Description Part # Part # Top panel 0 pc 0 pcs Foot Left side panel 0 pc 0 pc Front rail Right side panel 0 pc Upper front rail 0 pc...

  • Page 4: Hardware List

    Hardware List 51 pcs Ø8*30mm Wood dowel 12 pcs Ø8*40mm Wood dowel 36 pcs Ø10*20mm Wood dowel 20 pcs Ø3,0*12mm Screw 09 pcs Ø3,5*20mm Screw 36 pcs Ø4,0*25mm Screw 43 pcs Ø4,0*30mm Screw 07 pcs Ø4,0*40mm Screw 08 pcs Screw Ø4,5*50mm 10 pcs Handle...
  • Page 5 Step 1 Attention to the dowel size: Ø10*20mm Insert ood dowel ( ) into part Ø10*20mm Step 2 Insert wood dowel (A) into part 1, 2 3, 12, 13, 14, 15, 16, 18, 26 and 27. Ø8*30mm...
  • Page 6 Step 3 1 - Ensure cam bolt is installed straight and not at an angle. 2 - Tighten cam bolt until shoulder on cam bolt is flush. Do not over-tigh- ten. Screw cam bolts (K) into parts 1, 2, 3 and 8 with a screwdriver.
  • Page 7 Step 4 Secure parts 17 to parts 2, 3 and 18 with screw (F) and screwdriver. Ø4,0*25mm Step 5 Secure part 16 to part 1 with screw (G) and screwdriver. Ø4,0*30mm...
  • Page 8 Step 6 Align the opening in cam lock to the cam bolt and press into opening. Using a screwdriver, rotate the cam lock until it engages with the cam bolt and locks in place (anywhere between 90-180 degrees). Do not over-tighten the cam lock.
  • Page 9 Step 8 Secure parts 14 and 15 to part 2. Insert cam locks (L) into parts 14, 15, and tighten with a screwdriver. Ø15*11mm Step 9 18 with screw (H) Secure part 15 to part screwdriver. Ø4,0*40mm...
  • Page 10 Step 10 Secure parts 1, 14, 15 and 16 to part 3. Insert cam locks (L) into parts 1, 14, 15, 16, and tighten with a screwdriver. Ø15*11mm Step 11 Secure part 4 to parts 2 and 3 with screw (H) Ø4,0*40mm screwdriver.
  • Page 11 Step 12 Secure part 12 to parts 13, with screw (I) and screwdriver. Ø4,5*50mm Step 13 Secure part 11 to parts 13, with screw (I) and screwdriver. Ø4,5*50mm P.11...
  • Page 12 Step 14 Secure part 11 to parts 13, with screw (I) and screwdriver. Ø4,5*50mm Step 15 Secure parts 11 and 12 to part 4 with screw (G) screwdriver. Ø4,0*30mm P.12...
  • Page 13 Step 16 Name and address of the supplier and date of production. Secure back panel 19 as shown above with screw (E) and screwdriver. Ø3,5*20mm Step 17 Secure parts 5 and 6 to part 8. Secure parts 5 and 7 to part 8. Insert cam locks (L) into parts 5, 6, 7, and tighten with a screwdriver.
  • Page 14 Step 18 Insert parts 9 and 10 between parts 5, 6 and 7. Secure part 10 with screw (G) and screwdriver. Ø4,0*30mm Step 19 Ø3,0*12mm Secure handle (J) with screw (D) and screwdriver, in the pre-drilled holes on the drawer front 8. P.14...
  • Page 15 Step 20 Secure parts 26 and 27 to part 20 with screw (G) and screwdriver. Insert parts 21 and 22 between parts 26 and 27. Secure part 22 with screw (G) and screwdriver. Ø4,0*30mm Step 21 Ø3,0*12mm Secure handle (J) with screw (D) and screwdriver, in the pre-drilled holes on the drawer front 20.
  • Page 16 Step 22 Insert ood dowel ( ) into part to be the stop of the drawer. Ø8*30mm Step 23 The assembled drawer with this warning must be placed on top of the unit. Insert wood dowel (B) on the inside of all drawers, with the drawer inside the unit, after having passed the wood dowel that is in the drawer slide.
  • Page 17 Step 24 WARNING Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall. Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors.
