Summary of Contents for Walker Edison BR6DDDR

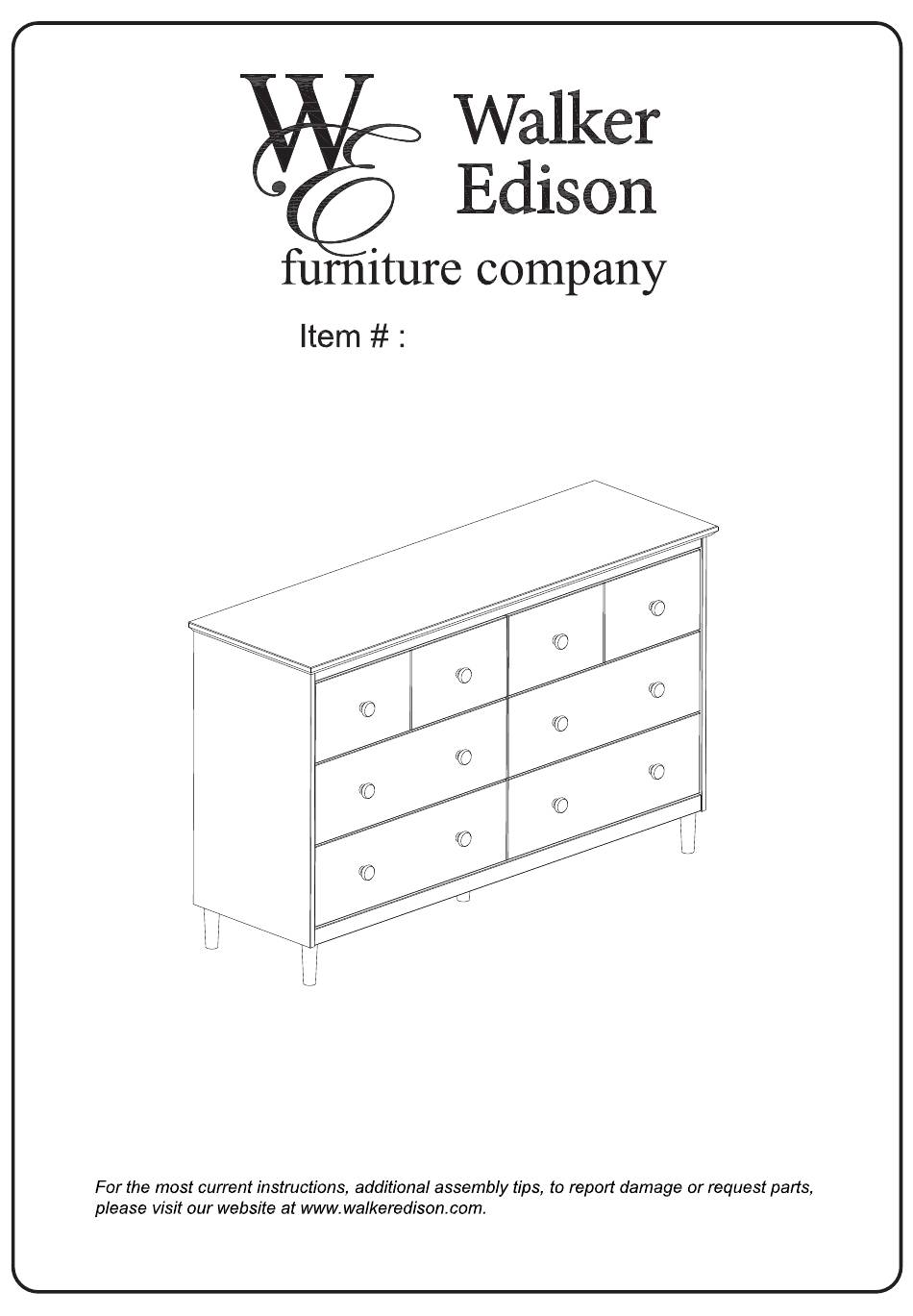

- Page 1 BR6DDDR Assembly Instructions Keep these instructions for future reference. Revised 03/2018...
- Page 3 Top panel 03 pcs Left foot 01 pcs Front drawer Right side panel 01 pcs 04 pcs Left side drawer Left side panel 01 pcs 06 pcs Right side drawer Bottom front crossbeam 01 pcs 06 pcs Back crossbeam Drawer bottom 06 pcs 01 pcs Upper front crossbeam...
- Page 4 Wooden dowel Ø8*30mm Ø3,0*14mm Screw Ø6,0*10mm Screw Screw Ø4,0*30mm Screw M4*22mm Screw Ø4,5*45mm Ø10*10 Nail 350mm Right Slide Left Slide 350mm Knob Glue 1374mm “H” Profile Ø6,0*20mm Screw Ø15*10mm Spacer Slide Wall anchor Washer Ø6mm Screw Ø3,0*20mm Tape measure and hammer recommended for assembly (not included)
- Page 5 Step 1 Please assemble on a clean soft surface to avoid damage. Glue tube Ø8*30mm Step 2 Pre-Drilled holes The wheel to The wheel to the Front 180º the Front The wheel to the Front Please assemble on Pre-Drilled a clean soft surface holes to avoid damage.
- Page 6 Step 3 Glue tube Ø4,0*30mm Step 4 Glue tube Ø4,0*30mm...
- Page 7 Step 5 Glue tube Ø4,0*30mm Step 6 Ø4,0*30mm...
- Page 8 Step 7 Apply glue to leg contact surfaces 1º 2º Ø4,5*45mm Glue tube Step 8 6 9 8 Ø10*10...
- Page 9 Step 9 The wheel to the Back Bottom M4x22mm Left slide 350mm Ø3,0*14mm Right slide 350mm Ø4,0*30mm Step 10 The wheel to the Back Bottom M4x22mm Left slide 350mm Ø3,0*14mm Right slide 350mm Ø4,0*30mm...
- Page 10 Step 11 To adjust the drawer front position: C or M Loosen the screw (part C or M) you used to install the drawer runner (either parts H or I) in step 2, to the side panel (parts 02 or 03), depending on the side (left or right), or division ( part 16) as shown.
- Page 11 Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before installing, as different wall materials may require different types of anchors. 1º 2º Wall Back panel Ø6mm Ø4,0*30mm P.11...
