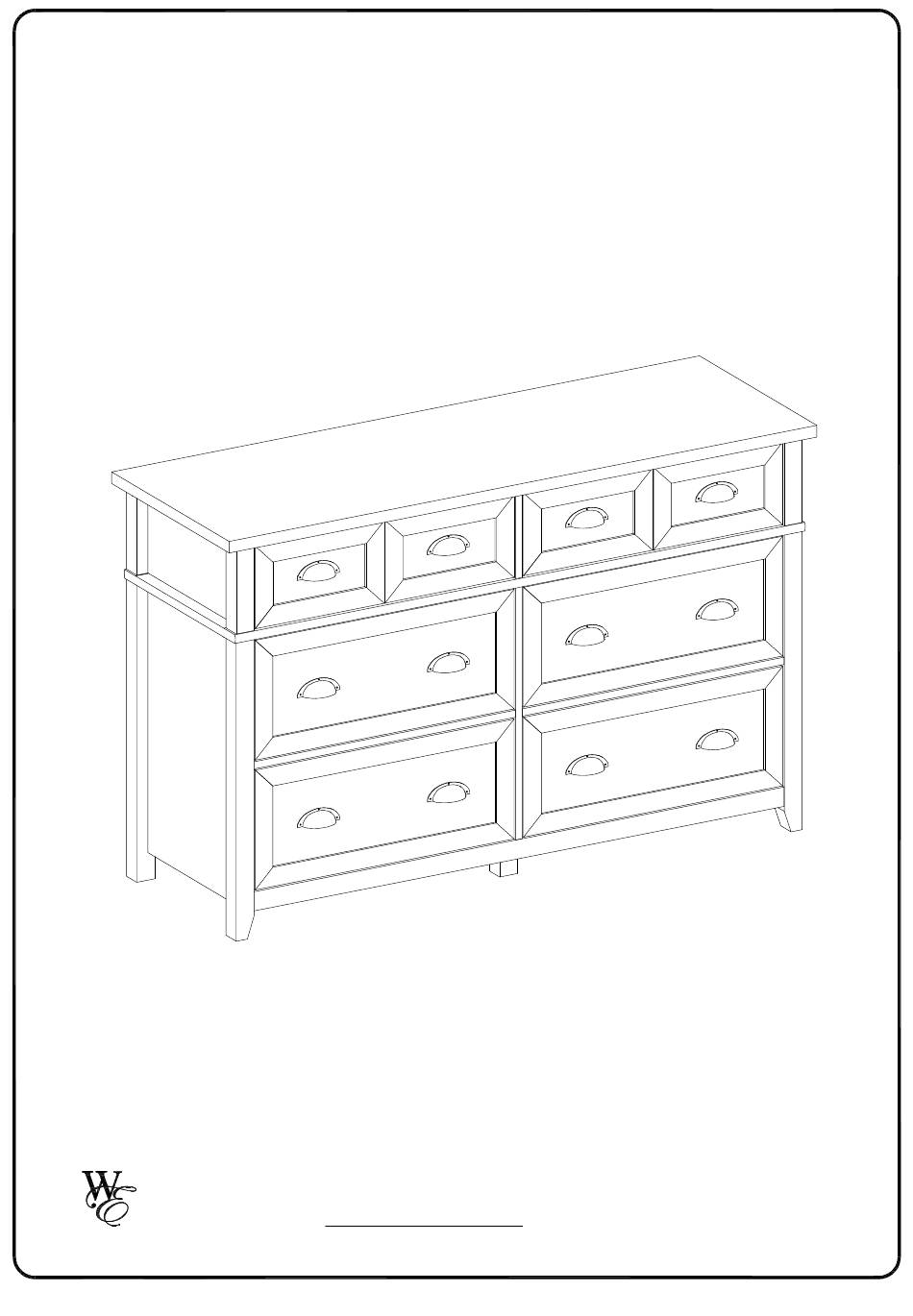

Item # : BR6DODDDR
Assembly Instructions
Please visit our website for the most current instructions, assembly tips, report damage,
or request parts. www.walkeredison.com
TM
Revised 23/10/2020 (L)
Walker Edison
®
©
Copyright
2020 b
Walker Edison Furniture Co., LLC. All rights reserved.
P.1
y

Advertisement

loading
Need help?

Need help?

Do you have a question about the BR6DODDDR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Walker Edison BR6DODDDR

Summary of Contents for Walker Edison BR6DODDDR

  • Page 1 Item # : BR6DODDDR Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Revised 23/10/2020 (L) Walker Edison ® © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.

  • Page 2: General Assembly Guidelines

    Power tools should not be used to assemble this product. VIII. Drill may be needed for securing product to wall. © © Copyright Copyright 2020 b 2020 b Walker Edison Furniture Co., LLC. All rights reserved. Walker Edison Furniture Co., LLC. All rights reserved.

  • Page 3: Parts List

    Parts List © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.

  • Page 4: Hardware List

    Screw Ø6x30mm 12 pcs Wooden dowel Sets Drawer slider 12" * Note: This piece comes preassembled for shipping purposes and must be disassembled to complete the desk assembly. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 5 Glue tube Philips head screwdriver required for assembly (not included) The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 6 (B) into part (20) , then secure cam bolt (C) into part (1),using cam lock (E) secure cam bolt (D) into part (20) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 7 Insert wooden dowel (A) into part (22) , then secure cam bolt (C) into part (23), using cam lock (E) secure part (23) into part (22) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 8 Step 3 Using screw (K) attach part (8) to parts (21,22) with Hex key (N) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 9 Step 4 Insert wooden dowel (A) into parts (12,13,14,15), then secure cam bolt (C) into parts (5,6,12,13,14,15) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 10 Step 5 Insert wooden dowel (A) into parts (2,3,4,9,10,11) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.10...
  • Page 11 Pick up the slider arm (W) and separate the slide runner for the following Steps. Extend the slide runner all the way forward,press the plastic release lever of the slider arm up and pull the slide runner complete out . © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.11...
  • Page 12 Using cam lock (E) secure parts (5,6) to part (2) and part (4) , then using screw (Q) attach drawer slider (W) to parts (2,4) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.12...
  • Page 13 Step 8 Using screw (Q) attach drawer slider (W) to parts (3) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.13...
  • Page 14 Step 9 Using cam lock (E) secure parts (12,13) to part (9) ,and parts (14,15) to part (11) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.14...
  • Page 15 Step 10 Using screw (Q) attach drawer slider (W) to parts (9,11) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.15...
  • Page 16 Step 11 Using screw (Q) attach drawer slider (W) to parts (10) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.16...
  • Page 17 Step 12 Using screw (K) attach part (10) into parts (21,22) with Hex key (N) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.17...
  • Page 18 Step 13 Attach part (20) into parts (9,13) ,then using Cam lock(E) secure part (20) to parts (9,13) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.18...
  • Page 19 Attach parts (21,22,23) into parts (9,12,13) ,and part (10) into part (20) ,then using Cam lock(E) secure parts (21,22,23) to parts (9,12,13) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.19...
  • Page 20 Step 15 Put part (18) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.20...
  • Page 21 Step 16 Using cam lock (E) secure part (19) to part (12) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.21...
  • Page 22 Step 17 Attach part (20) into part (10) ,then using Cam lock(E) secure part (20) to part (10) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.22...
  • Page 23 Step 18 Attach parts (11,14,15) into parts (19,20,21,22,23) , then using Cam lock(E) secure parts (11,14,15) to parts (19,20,21,22,23) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.23...
  • Page 24 Step 19 Put part (18) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.24...
  • Page 25 Step 20 Attach part (4) into part (1) , then using Cam lock(E) secure part (4) to part (1) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.25...
  • Page 26 Step 21 Attach parts (2,3) into part (1) , then using Cam lock(E) secure parts (2,3) to part (1) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.26...
  • Page 27 Step 22 Put part (16) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.27...
  • Page 28 Step 23 Using screw (K) attach part (17) to parts (2,3,4) with Hex key (N) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.28...
  • Page 29 Step 24 Secure cam bolt (C) into part (17) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.29...
  • Page 30 Step 25 Attach part (17) into parts (9,10,11) , then using Cam lock(E) secure part (17) to parts (9,10,11) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.30...
  • Page 31 Step 26 Using screw (M) secure plastic wedge (L) to parts (16,18) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.31...
  • Page 32 Using screw (Q) attach drawer slider (W) to parts (24,25) ,then using handle bolt (Y) secure handle (H) and secure cam bolt (C) into part (27) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.32...
  • Page 33 Using screw (Q) attach drawer slider (W) to parts (30,31) ,then using handle bolt (J) secure handle (H) and secure cam bolt (C) into part (7) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.33...
  • Page 34 Step 29 Using screw (P) attach parts (24,25) to part (26) , parts (30,31) to part (32) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.34...
  • Page 35 Step 30 Put part (28) as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.35...
  • Page 36 Step 31 Attach part (29) into part (26,32) ,and using screw (P) attach part (29) to parts (26,32) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.36...
  • Page 37 Step 32 Using Cam lock(F) secure part (27) to parts (24,25,29) , part (7) to parts (29,30,31) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.37...
  • Page 38 Step 33 Place sticker (G) cover the holes as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.38...
  • Page 39 . © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.39...
  • Page 40 Step 35 Position the assembled unit at the desired location ,if necessary adjust the floor leveler at the bottom of the support leg to level the unit . © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.40...
  • Page 41 Step 36 Using screw (U) attach Velcro strap (R) into part (1) with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.41...
  • Page 42 Wall Using screw (S) attach Velcro strap (R) into Nut (T) to wall with Philips head screwdriver as per diagram. © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.42...
  • Page 43 Step 38 Step 38 Final Assembly © Copyright 2020 b Walker Edison Furniture Co., LLC. All rights reserved. P.43...
