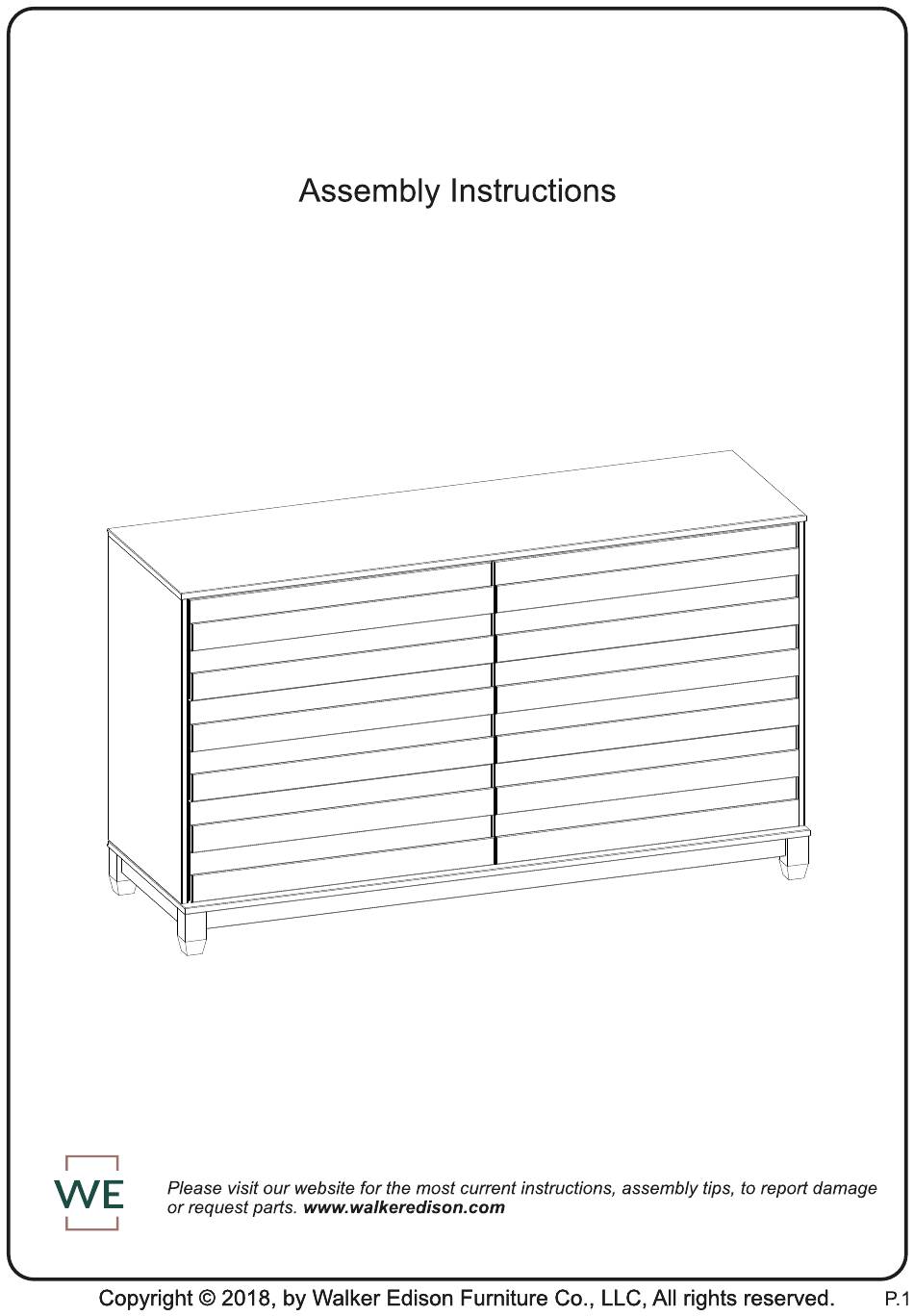

- Page 1 Item: BR6DPRIDR -T Revised 11/2023-V1...
- Page 2 , hammmer and tape measure...
- Page 3 The side drawer with WARNING LABEL, should be mounted in highest drawer. 06 pcs Top panel Left drawer side Right drawer side 05 pcs Left side panel Drawer handle 12 pcs Right side panel Drawer front Bottom panel 06 pcs Division Right drawer side with warning 01 pc...
- Page 4 44 pcs Ø8*30mm Wooden dowel Ø10*20mm Wooden dowel Ø4*25mm Screw Ø3,5*30mm Screw Ø4,0*40mm Screw Nail 10*7 Screw Ø7*60mm Ø6*31mm Cam bolt Ø15*11mm Cam lock Hex Key Wall anchor Washer Ø4,0*16mm Screw Ø6*35mm Plastic bush...
- Page 5 Wooden dowel Ø8*40mm Threaded foot insert Threaded 01 pc Ø1/4*25mm leveling foot...
- Page 6 Attention to the Step 1 dowel length: ø10*20mm Ø10*20mm Insert wood dowel (B) into part 6 and 17. Step 2 Insert wood dowel (A) into parts 2, 3, 5, 8, 11, 12, 15, and 20. Ø8*30mm...
- Page 7 Step 3 Insert wood dowel (P) into parts 7 and 8. Ø8*40mm Step 4 1 - Ensure cam bolt is installed straight and not at an angle. 2 - Tighten cam bolt until shoulder on cam bolt is flush. Do not over-tigh- ten.
- Page 8 Step 5 Rotate part 5. Secure parts 6 to part 2 and 3 with screw (C) and Phillips head screwdriver. Secure parts 17 to part 5 with screw (C) and Phillips head screwdriver. Ø4*25mm...
- Page 9 Step 6 Attach part 2 and 5 to part 1. Step 7 Align the opening in cam lock to the cam bolt and press into opening. Using a screwdriver, rotate the cam lock until it engages with the cam bolt and locks in place (anywhere between 90-180 degrees). Do not over-tighten the cam lock.
- Page 10 Step 8 Attach part 20 to part 2. Step 9 Attach part 3 to part 20 and to part 1. P.10...
- Page 11 Step 10 Insert Cam lock (I) into the holes in the part 3, and attach with Phillips head screwdriver. Ø15*11mm Step 11 Insert threaded foot insert (Q) into the hole in the part 10 and insert threaded leveling foot (R). Ø1/4*25mm Step 12 Ø7*60mm...
- Page 12 Step 13 Attach part 4 to parts 2, 3 and 5 with Screws (E) and Phillips head screwdriver. Ø4,0*40mm Step 14 Attach part 7 to parts 9 with Screws (E) and Phillips head screwdriver. Ø4*40mm P.12...
- Page 13 Step 15 Attach part 8 to parts 9 with Screws (E) and Phillips head screwdriver. Ø4*40mm Step 16 Attach parts 7 and 8 to part 4 with Screws (E) and Phillips head screwdriver. Ø4*40mm P.13...
- Page 14 Step 17 FRONT Ø8*30mm Insert wood dowel (A) into the front hole in the wood sliders 6 and 17. Step 18 Name and address of the supplier and date of production. Secure back panel 19 to the dresser back with nails (F) and hammer. 10*7 P.14...
- Page 15 Attention to the Step 19 dowel length: ø10*20mm Ø10*20mm Insert wood dowel (B) into part 14. Step 20 Attach part 14 to part 13 with screws (C) and Phillips head screwdriver. Ø4*25mm Step 21 Attach part 11 and 12 to part 14. Insert Cam lock (I) into the holes in the parts 11 and 12, and attach with Phillips head screwdriver.
-
Page 16: Warning Label
Step 22 Insert panel 16 into groves and secure part 18 with screws (D) and Phillips head screwdriver. Ø3,5*30mm Step 23 The side drawer with WARNING LABEL, should be mounted in highest drawer. Insert wood dowel (P) on the inside of all drawers, with the drawer inside the unit after having passed the wood dowel that is in the drawer slide. - Page 17 Step 24 Wall anchor and hardware are included with this product. Please make sure hardware is suitable for your walls before types of anchors. Ø6mm Attach part (L) with screw (N) and washer (M), in the frame of top panel unit using Phillips head screwdriver. With drilling machine make one hole in the wall, insert part (O) in the hole.
- Page 18 Assembly Complete! P.18...
