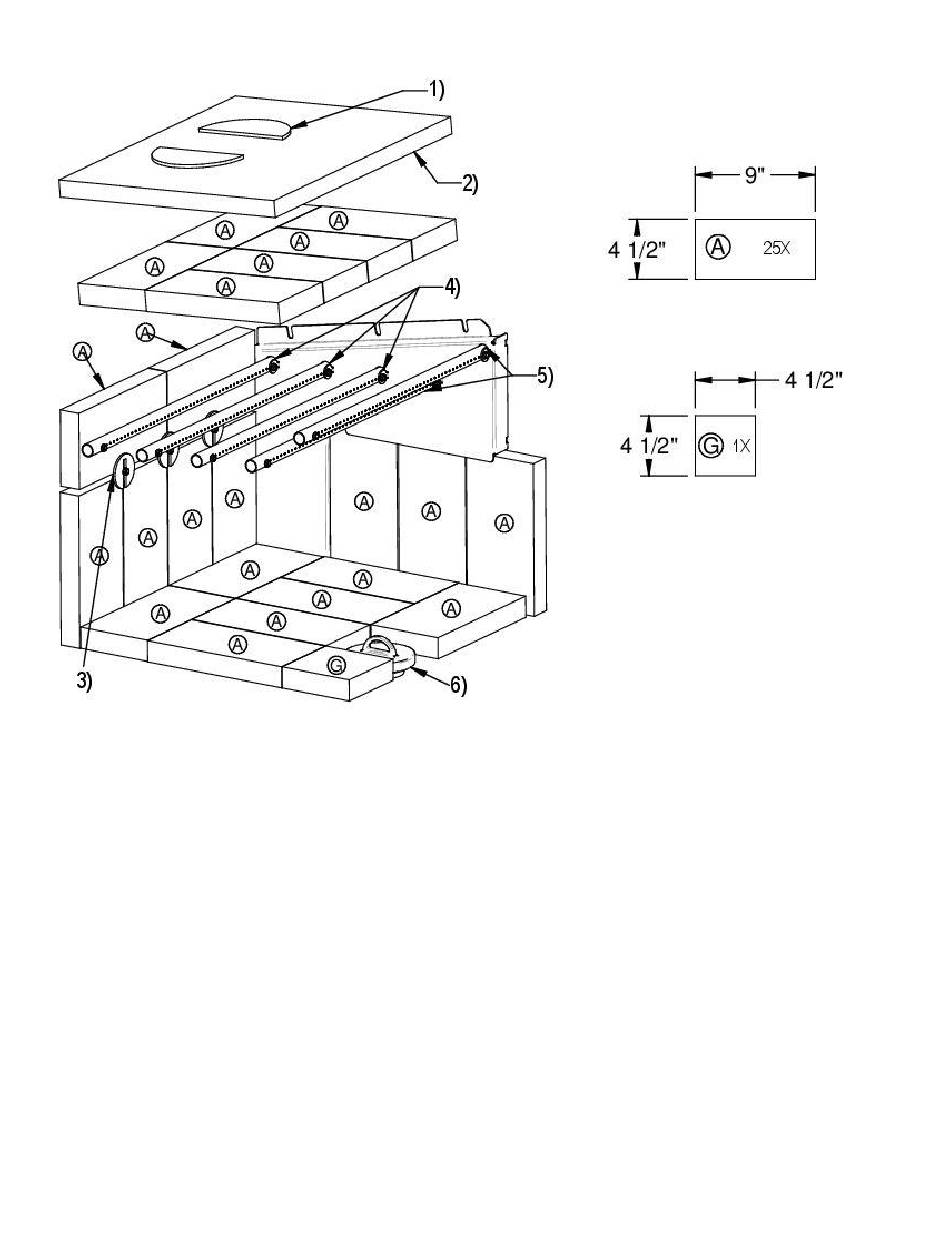

Firebox configuration & part list
List of components:
1) 2 x steel half round discs
2) 1 x ceramic wool
3) 3 screws and brick supports
4) 3 x Ø 3⁄4 '' x 19 '' simple pipe
5) 2 x Ø 3⁄4 '' x 19 '' double pipe
6) 1 ash dump plug
PR_I029/2023-08-24-EN
Revision: 7
17
