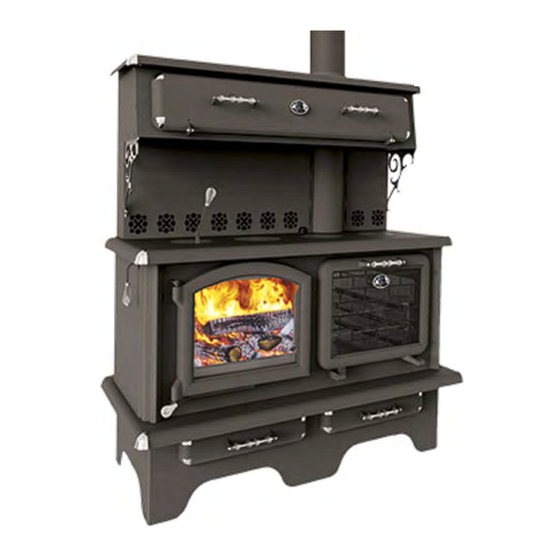

J. A. Roby CUISINIERE Instruction Manual

Hide thumbs Also See for CUISINIERE:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
PLEASE READ CAREFULLY AND KEEP
THIS MANUAL FOR FUTURE REFERENCE
Instruction Manual
CUISINIERE
Tested and listed to
ULC STD S627-00
UL 1482-7
CAN/CSA STD B415.1-10
490, rue de l'Argon
Quebec, CANADA G2N 2C9
November 5, 2015
Printed in Canada
Tel.: 418-849-8095
Fax: 418-849-0077
www.jaroby.com

Advertisement

Table of Contents
loading

Related Manuals for J. A. Roby CUISINIERE

Summary of Contents for J. A. Roby CUISINIERE

  • Page 1 PLEASE READ CAREFULLY AND KEEP THIS MANUAL FOR FUTURE REFERENCE Instruction Manual CUISINIERE Tested and listed to ULC STD S627-00 UL 1482-7 CAN/CSA STD B415.1-10 490, rue de l'Argon Quebec, CANADA G2N 2C9 November 5, 2015 Printed in Canada Tel.: 418-849-8095 Fax: 418-849-0077 www.jaroby.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENT Introduction ................3   Control of primary and secondary air admission ....23   Rating plate ................4   Lightning fire ..............23   Appliance dimensions .............. 5   First fire ................23   Installation ................6  ...

  • Page 3: Introduction

    Introduction Please read all the instructions carefully before installing your new J. A. ROBY CUISINIERE cook stove. A proper installation is very important for a safe and effective use of your stove. If you have any doubts about the installation of your appliance, we suggest to call a professional installer.

  • Page 4: Rating Plate

    Rating plate November 5, 2015...

  • Page 5: Appliance Dimensions

    Appliance dimensions November 5, 2015...

  • Page 6: Installation

    Installation Floor protection Your stove must be installed on a plate of non-combustible material to protect the floor and avoid fire caused by:  Projections of sparks at the moment of opening the door and loading;  The heat radiation of runaway which might cause self-ignition of floor and surface; ...

  • Page 7: Clearances Chart On Floor Plate

    Clearances chart on floor plate The following dimensions are the minimums values. Canada :  8 inches (20.3 cm) rear  8 inches (20.3 cm) side  18 inches (45.7 cm) loading door USA :  8 inches (20.3 cm) rear ...

  • Page 8: Minimum Clearances To Combustible Material

    This appliance needs a minimum space because of these reduced clearances. Whether in the living room or the dining room, the CUISINIERE cook stove will match perfectly by its originality and heating. It requires a MINIMUM clearance of 12 inches at the back (for a single pipe with a heat shield) and an 18 inch MINIMUM clearance on each side.

  • Page 9: Assembly Before Installation

    Assembly before installation The stove leg and the warming oven top might not be assembled Place the backside on the product package to protect in the factory, in order to save space for transportation and the painted part. storage. You must therefore assemble these parts before installing the cook stove.
  • Page 10 Fix the right decorative panel and attach it to the right Attach the front part (with the door) to the two sides chrome decoration. and the back. Keep the horizontal holes for the chrome decoration. Remove the side panels of the cook stove. 10) Put and fix the warmer with the 4 bolts of each side to Insert the chrome decorations in the holes and fix the cook stove.

  • Page 11: Firebricks Installation

    Firebricks installation Back firebricks installation Side firebricks installation 1) Place 4 bricks «A» and 1 brick «C» in the middle. 1) Put 3 bricks «A» on the right hand. 2) Place 2 screws and insert split washers. 2) Set the 3 big screws in the holes for this purpose. Do not tighten up these screws too much, so that washers will be easily installed.

  • Page 12: Floor Firebricks Installation

    Firebricks installation on the pipes Floor firebricks installation The firebricks must be placed on the 4 pipes from the bottom of 1) Place 2 bricks «A» in the bottom as shown in the picture. combustion chamber. Bricks keep a maximum heat inside the combustion chamber so that the air coming from the pipes could burn the entire gas coming out from wood, which is combustible only in this way...
  • Page 13 Put the rockwool over the bricks and verify from the holes on the collar of the chimney to make sure the smoke exit is not obstructed. Place two stainless half round plate over the rockwool by the rear deflector already in place. November 5, 2015...

  • Page 14: General Steps Of Stove Installation

    General steps of stove installation Mark the dimensions of protection panel on the floor. Read the entire installation manual before installing The edge clearance of the sides and the back is and using your stove. 8 inches (20.3 cm). At the front, it must be 16 inches Choose a place to install your cook stove.

  • Page 15: Chimney Connector Installation

     Double wall chimney connector ATTENTION: Your J.A. Roby CUISINIERE cook stove was approved for the use of a single wall chimney connector with heat shield,  If you don’t have heat shield, you must keep the but it is possible to install a 6 inch (15.2 cm) double wall cook stove away in order to maintain the distance certified chimney connector.

  • Page 16: Installation In A Mobile Home

    Insert entirely the roll formed end into the stove collar and Installation in a mobile home screwing it with a minimum of 3 screws. DO NOT INSTALL THIS APPLIANCE IN A MOBILE HOME. WARNING: It is mandatory to attach the pipe to the stove collar and also at each joint with at least of 3 screws.

  • Page 17: General Steps Of Chimney Installation

    The chimney must exceed at least 3 feet CAN/ULC-S629-M87 in Canada and to UL-103 (type HT) In (91.4 cm) from the highest point of the hole USA. The CUISINIERE can be installed with a masonry chimney in the roof. according to ULC-S635, ULC-S640 and UL-1777. The masonry chimney must be equipped with a stainless steel sleeve and ...

  • Page 18: Vertical Installation Inside Masonry Chimney

    Vertical Installation Inside Masonry Outside Vertical Installation Chimney The CUISINIERE cook stove must be installed in accordance with the applicable local laws or the CAN/CSA- The CUISINIERE cook stove must be installed in accordance B365, NFPA 211 (USA). Follow chimney with the applicable local laws or the standards such as ULC- manufacturer’s instructions to install the chimney.

  • Page 19: Vertical Installation On Cathedral Roof

    Vertical Installation on Cathedral Roof Offset Vertical Installation The CUISINIERE cook stove must be installed in accordance The CUISINIERE cook stove must be installed in accordance with the applicable local laws or the CAN/CSA-B365, with the applicable local laws or the CAN/CSA-B365, NFPA 211 (USA).

  • Page 20: Vertical Installation

    Vertical Installation The CUISINIERE cook stove must be installed in accordance with the applicable local laws or the CAN/CSA-B365, NFPA 211 (USA). Follow the chimney manufacturer’s instructions to install the chimney. November 5, 2015...

  • Page 21: Combustion Air Intake

    Exterior Air Intake pipe In winter, snow can accumulate over the air inlet and obstruct CUISINIERE is not approved for mobile home. It is built, The valve of the air intake might be closed as well. however, to receive an exterior air intake pipe. An air intake kit must be factory installed.

  • Page 22: Replacement Of Stainless Steel Tubes

      Replacement of stainless steel tubes Although the tubes are in stainless steel, the tubes are Step to install a tube  eventually worn out and perforated with extreme temperature Insert the tube into the round hole on the air intake and conditions. You must replace the old pipes with new ones passage.

  • Page 23: Operating Instructions

    Operating Instructions NEVER LEAVE THE STOVE UNATTENDED WHEN THE Control of primary and secondary air DOOR IS SIGHTLY OPEN. ALWAYS CLOSE THE DOOR admission AFTER LIGHTNING. CAUTION: NEVER USE GAZOLINE, GAZOLINE TYPE When the handle on the left side of the stove is vertical, the air LANTERN FUEL, KEROSEN, CHARCOAL LIGHTER FLUID, admission is only from the tube.

  • Page 24: Operation Of Cooking Holes

    Operation of cooking holes Storage of the cooking hole handle Cooking holes have removable covers so that you can take Cooking holes handle is set into the storage hole at the right them off and put skillets directly over the heat from the smoke. part of the stove to keep it relatively cold.

  • Page 25: Opening And Closing Of Warming Oven

    BURN. Usage of oven for cooking The CUISINIERE cook stove can cook food in the oven part. The heat is transferred from the wall between the stove and the oven. To accelerate the heating, there is a deviation valve right by the chimney collar which allows smoke to warm up the back and the top of the oven.

  • Page 26: Maintenance

    Maintenance Ash Removal Ash Disposal The wood burning make some residual called ash and it must Some embers are mixed with ash and can remain lit. If embers be removed from the combustion chamber to help oxygen have enough oxygen, it can stay lit some hours and even some circulation.

  • Page 27: Chimney Sweeping

    These must not be unscrewed in any case. They hold the rolling mechanism to lock the door. Cleaning up glass To clean the door glass, J.A. Roby Inc. recommends using products for this purpose or an oven cleaner only for glass part. ...

  • Page 28: Disassembly And Reassembly Of Door

    Use a ½ inch (12.7mm) braided glass fiber rope. Disassembly and reassembly of door Do not unscrew the lower hinge when disassemble the door. It is preferable to detach the door from the stove when you replace the rope. Refer to the section concerned in this Keep the door locked.

  • Page 29: What To Do In Case Of Chimney Fire

    What to do in case of Chimney Fire Contact your local authority to know what to do in case of Chimney fire. Keep in mind the procedure in case of chimney fire. Close all the doors, the air intakes and the vent damper Pour water on combustible material around stove.

  • Page 30: Annex 1

    Annex 1 Door assembly Wood Stove Door *The same assembly for an arc wood stove...

  • Page 31: Oven Door

    Oven Door...

  • Page 32: Annexe 2

    Annexe 2 Replacement parts  Bricks  Stove ceramic glass  Tempered glass oven door  Spring Handle  Stove door  Oven door  Fans  Flat glass fiber rope (around glass)  Round glass fiber rope  Ash plug ...

  • Page 33: J. A. Roby Limited Lifetime Warranty

    J. A. ROBY. Failure of any components which is attributed to poor maintenance, is not warrantable and will not be covered by this policy. J.A. ROBY neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this product.
