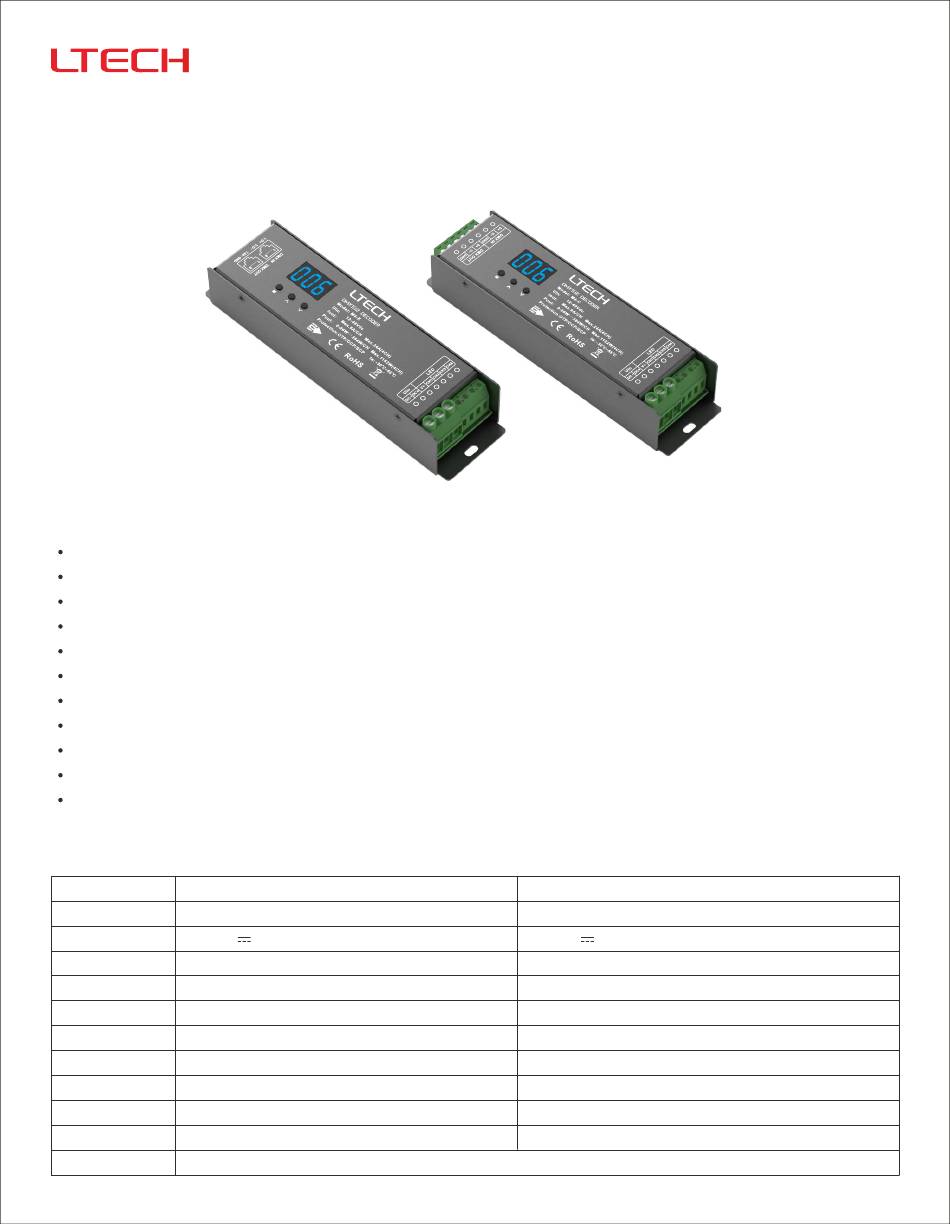

Product Introduction
Standard DMX/RDM interfaces; Set address via the LCD screen and buttons;
RDM protocol; Browse and set parameters, change DMX address, and recognize devices via a RDM master;
DMX mode and customized mode can be switched;
PWM frequency options: 300/600/1200/1500/1800/2400/3600/7200/10800/14400/18000Hz (default is 1800Hz);
16bit (65536 levels)/8bit (256 levels) gray scale optional;
Two dimming mode options: standard and smooth dimming;
Set 1/2/3/4 DMX channel output (default is 4 channel output);
Provide 10 lighting effects, 8 levels of dynamic mode speed, 255 brightness levels;
Set screen timeout, LCD screen always on, and screen turning off after 30s of inactivity;
Short circuit, over-temperature, over-current protection and auto recovery;
M4-C has green terminal DMX interfaces, M4-E has RJ-45 DMX interfaces.
Product Parameters
Model
M4-E
Input Signal
DMX512, RDM
Input Voltage
12-48V
Input Voltage
Max.8A/CH Max.24A(4CH)
Output Power
0-96W...384W/CH Max.1152W(4CH)
Dimming Range
0-100%
DMX Signal Port
RJ45
Working Temp.
-30°C-55°C
Dimensions
L175×W46×H30mm
Package Size
L187×W52×H36mm
Weight(G.W.)
325g±5g
Protection
Short circuit, over temperature, over current protection, auto recovery.

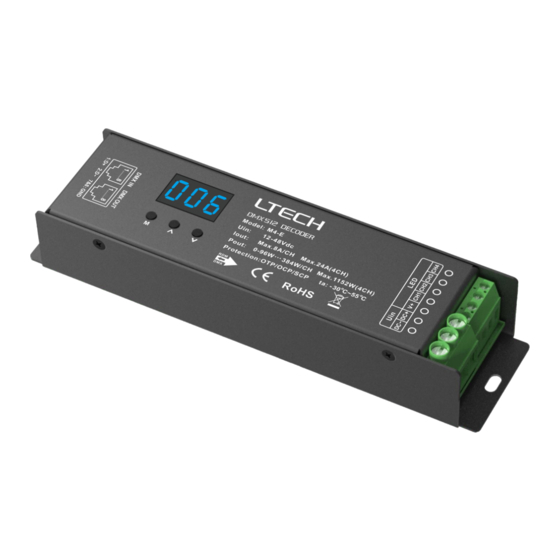

M4-E、M4-C
DMX/RDM constant voltage decoder
M4-C
DMX512, RDM
12-48V
Max.8A/CH Max.24A(4CH)
0-96W...384W/CH Max.1152W(4CH)
0-100%
Green termina
-30°C-55°C
L175×W46×H30mm
L187×W52×H36mm
325g±5g
1
M4-E、M4-C DMX/RDM CV Decoder
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ltech M4-E
Summary of Contents for Ltech M4-E
- Page 1 Provide 10 lighting effects, 8 levels of dynamic mode speed, 255 brightness levels; Set screen timeout, LCD screen always on, and screen turning off after 30s of inactivity; Short circuit, over-temperature, over-current protection and auto recovery; M4-C has green terminal DMX interfaces, M4-E has RJ-45 DMX interfaces. Product Parameters Model...
-
Page 2: Load Parameters
M4-E、M4-C DMX/RDM CV Decoder Load parameters Frequency 300Hz 600Hz 1.2kHz 1.5kHz 1.8kHz 2.4kHz Current/power (F=0) (F=1) (F=2) (F=3) (F=4) (F=5) Voltage 6A×4CH/288W 6A×4CH/288W 6A×4CH/288W 6A×4CH/288W 6A×4CH/288W 6A×4CH/288W 8A×3CH/288W 8A×3CH/288W 8A×3CH/288W 8A×3CH/288W 6A×4CH/576W 6A×4CH/576W 6A×4CH/576W 6A×4CH/576W 6A×4CH/576W 6A×4CH/576W 8A×3CH/576W 8A×3CH/576W 8A×3CH/576W 8A×3CH/576W... - Page 3 M4-E、M4-C DMX/RDM CV Decoder Main Component Description Wire diameter: 1-2.5 (18-12AWG) Digital Display Strip length:6-7mm Output White LED- Output Blue LED- DMXIN Output Green LED- M4-E Output Red LED- DMXOUT Output LED+ Power input+ Power input- Wire diameter: 1.5-4 (16-10AWG)
- Page 4 M4-E、M4-C DMX/RDM CV Decoder OLED Display Interface DMX decoder mode Long press M and ∧ button simultaneously. When the screen displays "L-1", it enters the DMX decoder mode. Long press M button for 2s to enter the menu. 1. DMX address settings Press ∧...
- Page 5 M4-E、M4-C DMX/RDM CV Decoder Customized mode Long press M and ∨ button simultaneously. When the screen displays "L-2", it enters Customized mode . Long press M button for 2s to enter the menu. 1. Lighting effects Short press M button to switch the menu to "E".
- Page 6 M4-E、M4-C DMX/RDM CV Decoder M4-E Wiring Diagram console 24V+ M4-E Constant voltage power supply 12-48V 24V+ M4-E Constant voltage power supply 12-48V 24V+ M4-E Constant voltage power supply 12-48V When more than 32 DMX decoders are connected, DMX signal amplifiers are needed and signal amplification should not be more than 5 times continuously.
- Page 7 M4-E、M4-C DMX/RDM CV Decoder M4-E Wiring Diagram console 24V+ M4-C Constant voltage power supply 12-48V 24V+ M4-C Constant voltage power supply 12-48V 24V+ M4-C Constant voltage power supply 12-48V When more than 32 DMX decoders are connected, DMX signal amplifiers are needed and signal amplification should not be more than 5 times continuously.
-
Page 8: Warranty Agreement
Warranty labels and barcodes have been damaged. No any contract signed by LTECH. 1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law.
