Ltech MINI Series Quick Start Manual

MINI LED
(Multi-zone)

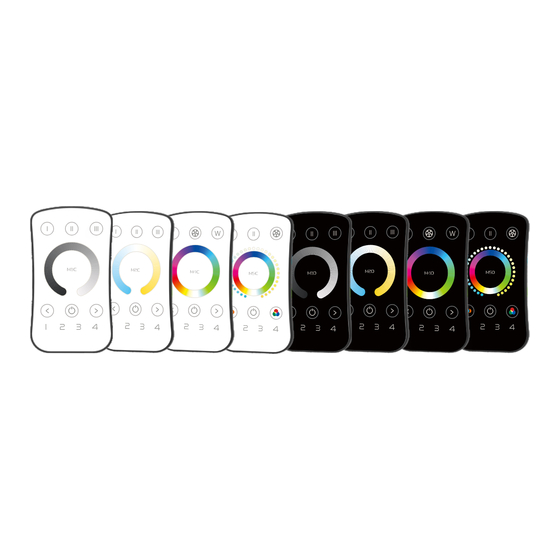

The MINI series LED remotes use RF 2.4GHz wireless transmission technology and the control distance (under no interference)
can be up to 30 meters.
Connect to a P5 controller with 5 channel outputs which supports DIM/CT/RGB/RGBW/RGBCW light. One remote can control a
large amount of controllers within the effective range to achieve different functions, such as turning lights on/off,adjusting
brightness, C , static RGB color, effects of dynamic modes, and recalling scenes, which meet the needs of users for different T
lighting applications.
Zone control is supported and one remote can control multiple zones. Multiple controllers can be paired with one zone to achieve
group control in this zone. A single press on ON/OFF button allows you to turn on/off all zone lights at the same time.
Technical parameters
Model
M1C M1D M2C
Color White Black White
Dimming mode DIM CT
Wireless protocol RF
2.4GHz
Working voltage 3Vdc(Button battery CR2032×1)
Standby current
<2uA
Distance of remote
30M (Under no interference)
-30°C~55°C
Working temp.
Weight 40g±10g
Dimensions
104×58×9mm ( Remote , ) 108×63×14mm (
Remote
M2D M4C M4D M5C M5D
Black White Black White Black
RGBW
RGBCW
Remote + Holder )
1
Dimensions
9mm
58mm
104mm
Remote
Product installation
：
Two ways to fix the remote holder
1.
Fix the remote holder in the wall with two screws.
2.
Fix the remote holder in the wall with a 3M adhesive.
MINI LED
14mm
63mm
78mm
108mm
Remote holder
Note: Please pull out the battery tab before first use
2
Remote
