With the standard RDM (Remote Device Management) protocol,
remote management of reading and writing DMX addresses (DMX master controller must support the RDM protocol). It realizes 0-100%
dimming or different lighting effects. It can work with DIM, CT, RGB, RGBW constantvoltage LED lamps. M4-E can be operated in DMX
mode or in customized mode.
Product Parameters
M4-E
Input Signal:
DMX512, RDM
Input Voltage:
12-48V
Output Current:
Max.8A/CH Max.24A(4CH)
Output Power:
0-96W...384W/CH Max.1152W(4CH)
Dimming Range:
0-100%
DMX Signal Port:
M4-E
DMX/RDM CV Decoder
M4-E
1
5-year
warranty
supports DMX512 signal bi-directional communication,achieves
Working Temp:
-30°C-55°C
Dimensions:
L175×W46×H30(mm)
Package Size:
L187×W52×H36(mm)
Weight(G.W.):
325g±5g
Protection:
Short circuit, over temperature, over
current protection, auto recovery.

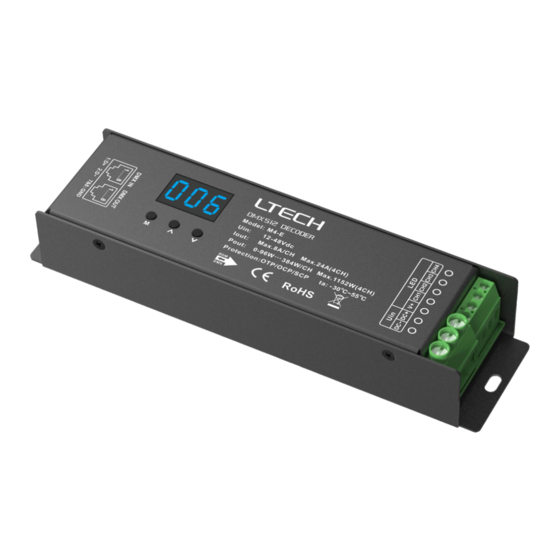

M4-E DMX/RDM CV Decoder
Advertisement
Table of Contents
Related Manuals for Ltech M4-E
Summary of Contents for Ltech M4-E

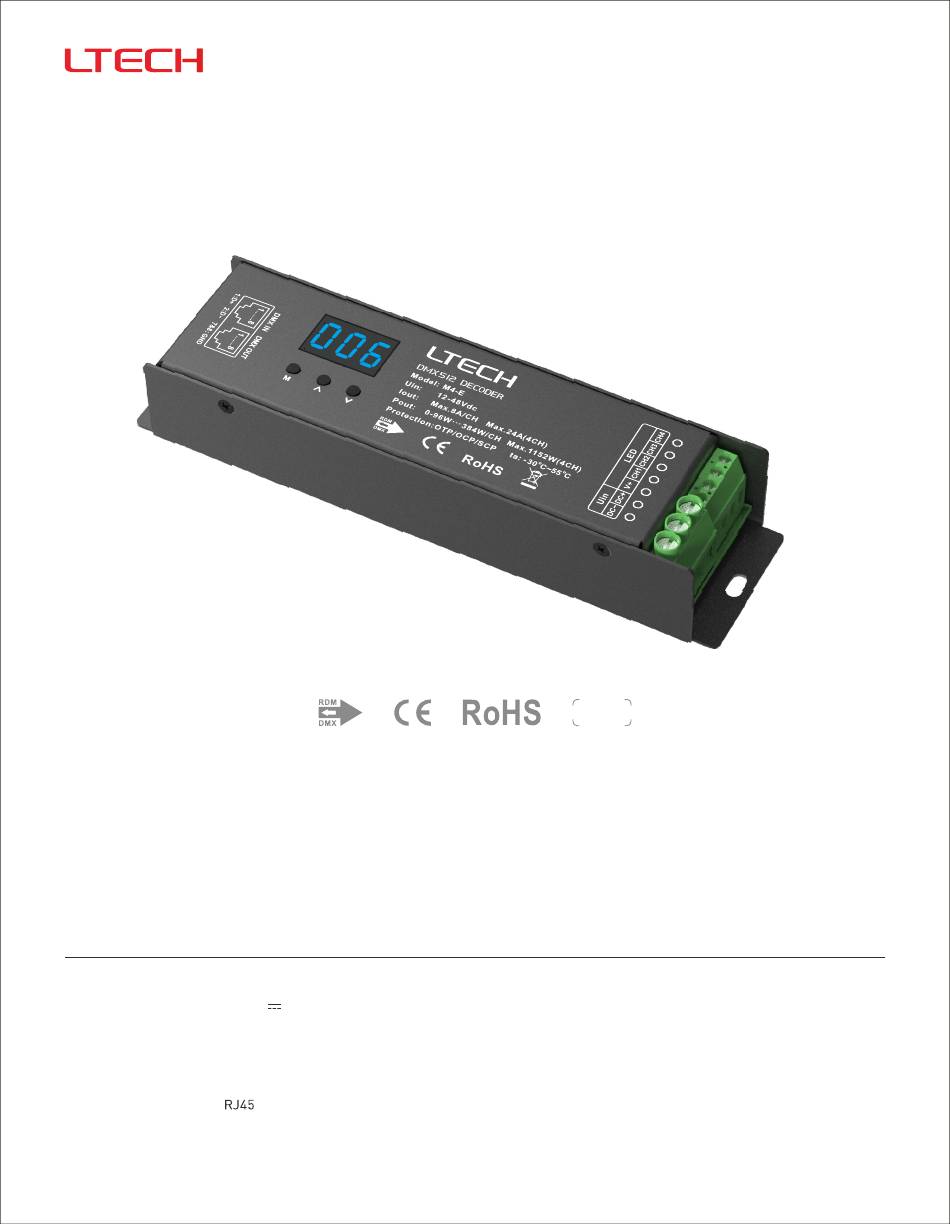

- Page 1 DMX addresses (DMX master controller must support the RDM protocol). It realizes 0-100% dimming or different lighting effects. It can work with DIM, CT, RGB, RGBW constantvoltage LED lamps. M4-E can be operated in DMX mode or in customized mode.
- Page 2 M4-E DMX/RDM CV Decoder Product Size Unit: mm 175mm 165mm Main Component Description Wire diameter: 1-2.5 (18-12AWG) Strip length:6-7mm Digital Display LED Lamp Connection M4-E CV Power Input Wire diameter: 1.5-4 (16-10AWG) Strip length:7-8mm Digital Display: Access configuration: Long press the M button for more than 2s.
- Page 3 M4-E DMX/RDM CV Decoder OLED Display Interface DMX mode The default is DMX mode for this product. Long press "M" + "∧" button simultaneously for more than 2s to switch to the DMX mode. In customized mode, when the device receives DMX/RDM data, it will automatically switch to the DMX mode.
- Page 4 M4-E DMX/RDM CV Decoder Wiring Diagram console 24V+ M4-E Constant voltage power supply 12-48Vdc 24V+ M4-E Constant voltage power supply 12-48Vdc 24V+ M4-E Constant voltage power supply 12-48Vdc When more than 32 DMX decoders are connected, DMX signal amplifiers are needed and signal amplification should not be more than 5 times continuously.
- Page 5 Warranty labels and barcodes have been damaged. No any contract signed by LTECH. 1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law.
