Ltech LT-854-5A Quick Start Manual

LT-854-5A
DMX-PWM CV DECODER

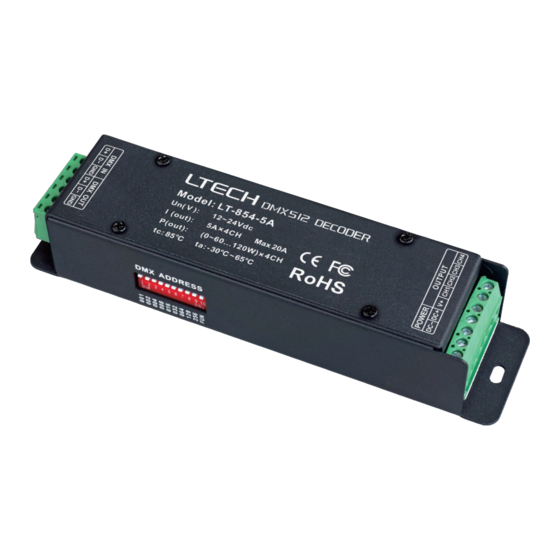

LT-854-5A DMX-PWM decoder works to convert universal DMX512 digital signal to PWM signal, which
controlled by DMX512 console. It can realize 0-100% brightness and various changing effect. And can
control single color, two color, RGB ,RGBA, RGBW LED lights.

1. Product Parameter:

LT-854-5A
Input Signal:
DMX512
Input Voltage:
12~24Vdc
Output Voltage:
12~24Vdc
Max. Current Load:
5A×4CH Max. 20A
Max. Output Power:
0-240W...480W

2. Product Size:

LT-854 5A DMX-PWM CV Decoder -
warranty
5 years
DMX512 Socket:
Green Terminal
Working Temperature: ℃ ℃
-30 ~65
Product Size: L175×W42×H33(mm)
Package Size:
L183×W48×H41(mm)
Weight(G.W.): 310g
1

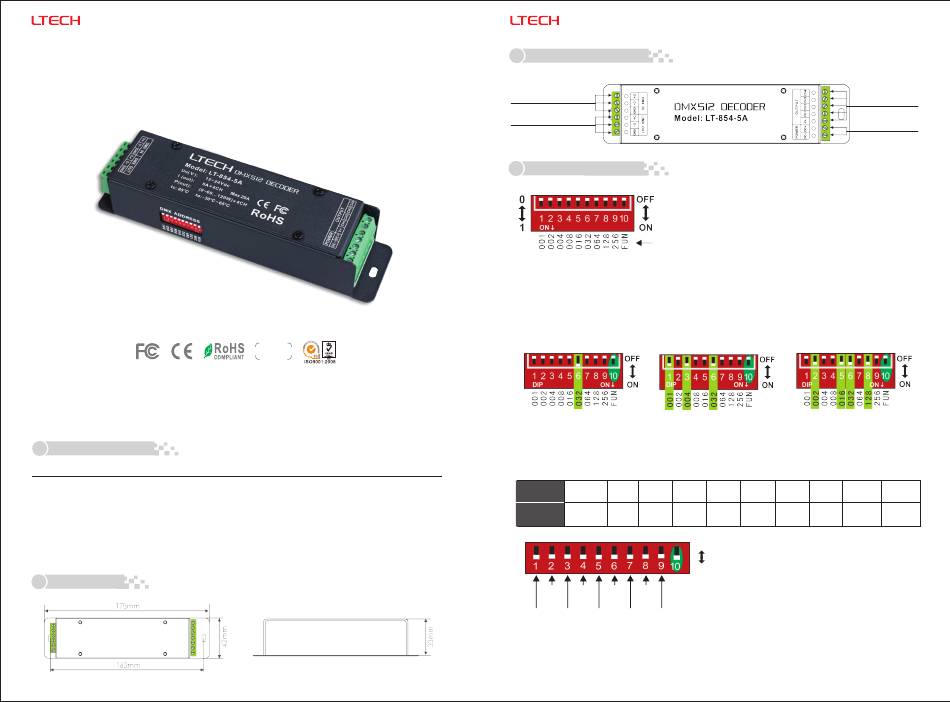

3. Configuration Diagram:

DMX Signal Input
DMX Signal Output
4. Dip Switch Operation:
FUN=OFF (the 10th
FUN=ON (the 10th
Value

4.1 How to set DMX address via dip switch:

FUN=OFF ( the 10th dip switch =OFF ) DMX
DMX address value = the total value of (1-9), to get the place value when in "on" position,
otherwise will be 0.
E.g.1: Set Initial Address To 32. E.g.2: Set Initial Address To 37.
001+004+032=37

4.2 Self-testing Mode:

FUN=ON (the 10th dip switch=ON ) Self-testing Mode
Dip Switch 1=ON 2=ON 3=ON
1-9=OFF
Self-testing Static Static Static Static
Function Black Red Green Blue
Static Static Static 7 Colors
Green Yellow Cyan Jumping
Static Static Static Static 7 Colors
Red Blue Purple Smooth
White
[Attn] When several dip switches are ON, subjected to the highest switch value.
As the figure above shows, the effect will be 7 colors smooth at 7 speed level.
LT-854 5A DMX-PWM CV Decoder -
Power Input
dip switch=OFF ) DMX Mode
dip switch=ON ) Self-testing Mode
Mode
E.g.3: Set Initial Address To 178.
002+016+032+128=178
4=ON 5=ON 6=ON 7=ON 8=ON
Static Static
Static Static 7 Colors
Purple Cyan
Yellow White Jumping
OFF
ON
For changing effects (Dip Switch 8 9=ON): /
DIP switch 1-7 is used to realize 7 speed levels.
(7=ON, the fastest level)
www.ltechonline.com
2
LED Lamps
Connection
9=ON
7 Colors
Smooth
