With the standard RDM (Remote Device Management) protocol, M4-C supports DMX512 signal bi-directional communication, achieves
remote management of reading and writing DMX addresses (DMX master controller must support the RDM protocol). It realizes 0-100%
dimming or different lighting effects. It can work with DIM, CT, RGB, RGBW constantvoltage LED lamps. M4-C can be operated in DMX
mode or in customized mode.
Product Parameters
M4-C
Input Signal:
DMX512, RDM
Input Voltage:
12-48Vdc
Max.8A/CH Max.24A(4CH)
Output Current:
0-96W...384W/CH Max.1152W(4CH)
Output Power:
Dimming Range:
0-100%
Green terminal
DMX Signal Port:
M4-C
DMX/RDM CV Decoder
1
5-year
warranty
-30°C-55°C
Working Temp:
Dimensions:
L175×W46×H30(mm)
Package Size:
L187×W52×H36(mm)
Weight(G.W.):
325g±5g
Protection:
Short circuit, over temperature, over
current protection, auto recovery.

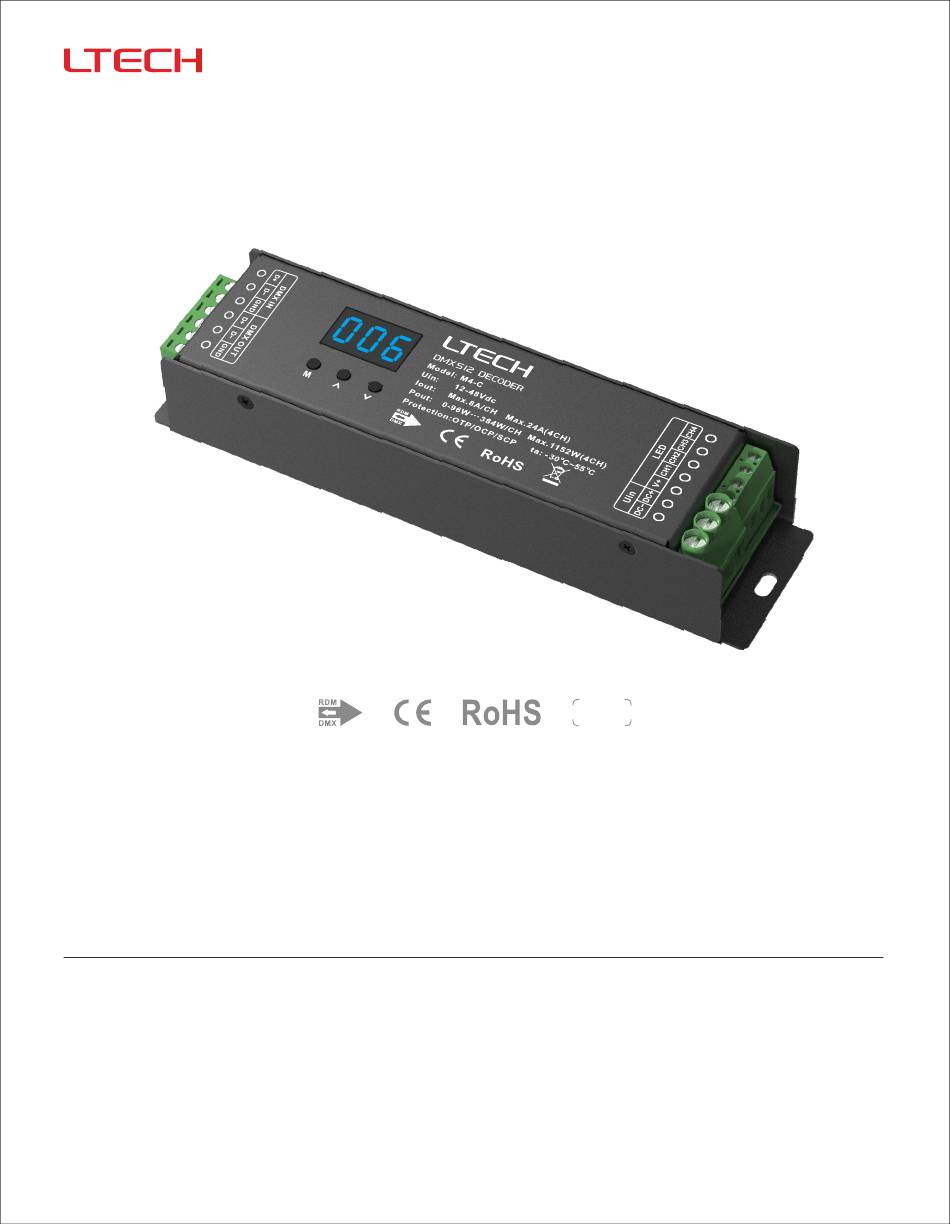

M4-C DMX/RDM CV Decoder
