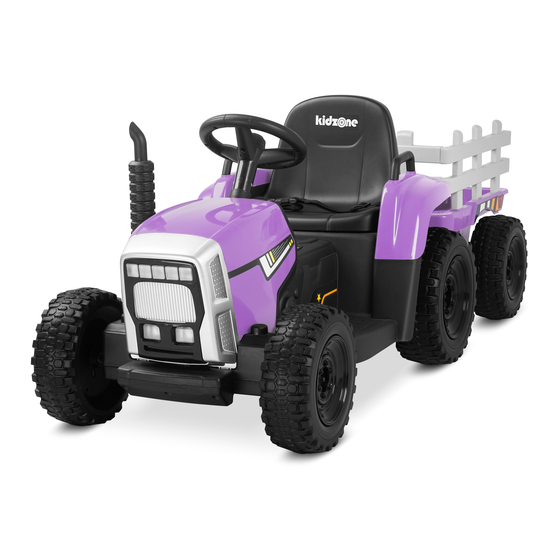

RIDE ON TRACTOR (12V) MODEL 15
Item number: 060-ROT-15 / 060-ROT-15V2
Note: Product appearance and colors may vary from the photo.
WARNING:
The trailer of this product is only for decoration, passenger and loading are not allowed!
ATTENTION
This vehicle is packed with the battery disconnected. Connect
the battery before use.
This manual contains important safety, performance and
maintenance information. Read the manual thoroughly before
allowing your child to ride your new electric ride-on toy. Failure
to read the user manual can result in property damage or bodily
injuries. Keep this user manual for future reference.
Instruction Manual
Advertisement
Related Manuals for Kidzone 15
Summary of Contents for Kidzone 15
- Page 1 Instruction Manual RIDE ON TRACTOR (12V) MODEL 15 Item number: 060-ROT-15 / 060-ROT-15V2 Note: Product appearance and colors may vary from the photo. WARNING: The trailer of this product is only for decoration, passenger and loading are not allowed! ATTENTION This vehicle is packed with the battery disconnected.
-
Page 2: Safety Instruction
Safety Instruction When using electrical product, basic safety precaution should always be followed including the following: Failure to follow the safety instructions may result in property damage, serious injury or death. This owner’s manual contains assembly, use and maintenance instruction, and child safety warning. Adult /guardian supervising children should read and understand this manual before allowing any child to use the product. - Page 3 WARN • RISK OF FIRE. Do not bypass. Replace only with original size and type. • Do not use this product in any slippery conditions including rain, snow, and ice, or at any potential dangerous places. Always drive the vehicle on smooth surface, and do not drive the vehicle on the tall grass or rugged ground.
-
Page 4: Prevent Fire
WARNING Manufacturer and seller expressly disclaim any and all liability WARNING for personal injury, property damage or losses, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use, inadequate maintenance, unapproved modi cation, or neglect of this product. CHOKING HAZARD - Small parts. - Page 5 FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS LISTED BELOW MAY RESULT IN SERIOUS INJURY OR DEATH. Child Safety Warnings • Adults supervising children must read and understand this entire manual before allowing any child to use this product. • Adults must evaluate their own children as to maturity, strength, judgment and ability to follow safety rules.
- Page 6 WARN 5• If necessary, adults and supervisors are always responsible for setting up gates and barriers to ensure a safe riding environment for the child rider. 6• Be aware that this ride-on toy does not have braking capabilities. Allowing use of this ride-on toy in areas that require braking may cause rolls, crashes, serious injury, or death to the child rider.
- Page 7 WARN Battery and Charging Warnings The following safety hazards may result in serious injury or death to the user of the ride-on: Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc), or rechargeable • Corrosive Material Warnings Battery posts, terminals and related accessories contain lead and lead •...
-
Page 8: Product Warning
WARN • Regularly check charger, supply cord and connector for wear and damage. Look for frayed or kinked wires, any exposed inner wires, any missing insulation. If any damage is observed do not plug in the charger and do not charge the battery. - Page 9 Motor: 390-16000 (060-ROT-15) 550-12000 (060-ROT-15V2) Battery:12V7AH x1 Charger: 1 2V700mA ~ 1000mA Speed: 2.01~2.65mph(3.23~4.27km/h) (060-ROT-15) 2.45~3.48mph(3.95~5.6km/h) (060-ROT-15V2) Suitable Age: 3+ years Maximum User Weight: 66 Ib / 30 kg Dimension (w/ Trailer): 53.7"x 19.7" x 20.7"(1365 x 500 x 525 mm) Dimension (w/o Trailer): 33"x 19.7"...
- Page 11 Screw Driver (not included) This product should be assembled by adult. Rear Axle...
- Page 12 Insert the steering wheel to the steering column, align the holes on steering wheel and steering column, then insert the M5 x 30 machine screw and tighten a 5 nut on the other side.
- Page 13 Insert the red connector from battery into the socket B.
- Page 15 Larger end near washer Put a 8 washer to the end of trailer axle, tighten by a lock nut,then slide a normal wheel, 10 washer and bushing to the axle. Insert the whole assembly through the hole on the trailer support to the other side.
- Page 16 Larger end near washer Attach the trailer to the contractor by inserting the trailer bolt to the trailer linkage as shown in above diagram...
- Page 17 Do not move the shift lever until the vehicle comes to a complete stop. Press the button to trigger the horn.
- Page 18 Using the music player Flash driver port (Only support the MP3 format, it doesn't work well if the memory storage capacity of ash driver exceed 15 GB). Change the audio input (from the Bluetooth: “Kidzone Tractor” or ash driver). Battery power level display...
- Page 19 For your chlid's safety, please make sure the seat belt is securely fasten when operating this product. Remove the cover on the back of the controller and insert two AAA (LR03) batteries in correct polarity. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries.
- Page 20 The battery should only be charged by an adult. The battery is not replaceable. Charging the battery Before the rst use, the battery should be charged for 4- 6 hours, do not charge the battery for more Max charging time 8-12 hours. Charge the battery at least once a month even not operating the vehicle to maximize the battery life.
- Page 21 Fuse will reset automatically in about 10 Secs 66 lb / 30 kg...
- Page 23 Model: JR1602FCC FCC ID: 2AWOBJR1602 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
- Page 24 V5-2023-6-7...
