Instruction Manual

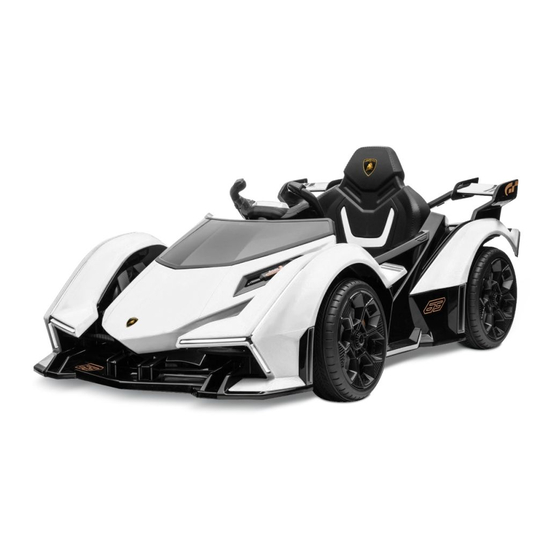

Licensed Lamborghini V12 Vision Gran Turismo Ride On
Item number: 060-ROT-12L / 12LP
*Product appearance and colors may vary from the photo.
This vehicle is packed with the battery disconnected. Connect
the battery before use.
This manual contains important safety, performance and
maintenance information. Read the manual thoroughly before
allowing your child to ride your new electric ride-on toy.
Failure to read the user manual can result in property damage
or bodily injuries. Keep this user manual for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kidzone 060-ROT-12L
Summary of Contents for Kidzone 060-ROT-12L
- Page 1 Instruction Manual Licensed Lamborghini V12 Vision Gran Turismo Ride On Item number: 060-ROT-12L / 12LP *Product appearance and colors may vary from the photo. This vehicle is packed with the battery disconnected. Connect the battery before use. This manual contains important safety, performance and maintenance information.
-
Page 2: Safety Instruction
Safety Instruction When using electrical product, basic safety precaution should always be followed including the following: Read all Instruction before use WARNING: To Protect against electrical shock, do not immerse cord, charger, transformer, • battery, or the product in water or other liquid. Only use charging devices, transformer, and battery provided or recommended •... -
Page 3: Prevent Fire
WARNING: PREVENT FIRE injury and could also ruin the electrical system. in serious injury. • The battery must be handled by adults only. The battery is heavy and contains sulfuric acid(electrolyte). Dropping the battery could result in serious injury. • Never allow children to charge the battery. Battery charging must be done by adults only. - Page 4 WARNING • Adults must evaluate their own children as to maturity, strength, judgment and ability to follow safety rules. Published age guidelines are not a substitute for careful evaluation of your own child. • Adults must teach children about thinking ahead while riding as this may be the see through the child’s eyes, and verbally teach them about steering and avoiding obstacles in the approved riding area.
- Page 5 WARNING 8. Sternly alert children that hands, legs, hair, and clothing can potentially get caught in moving parts. Ensure they never place a body part or piece of clothing near a moving part of the ride-on toy. Avoid loose clothing. 9.
- Page 6 WARNING Flammable and Explosive Materials Warnings • Use of a battery or charger other than the supplied rechargeable battery and charger may cause a re or explosion. Only use the supplied rechargeable battery and charger with the ride-on toy. • Do not charge the battery near heat or ammable materials. •...
- Page 7 CAUTION Re-Charge Interval and Time Important! • Damage to the battery may occur if it is allowed to drain completely. Do not allow the battery to drain completely. • Check the battery and charger (supply cord, connector) for wear and damage before charging.
- Page 8 Model No.: 060-ROT-12L / 060-ROT-12LP Battery:12L: 12V 7A X1; 12LP: 12V 7A X2 Charger input: 100 - 120VAC Charger output: 12V 12L Speed: 1.2~3.1mph 12LP Speed: 1.2~2.5mph Suitable Age: 3+ years Maximum User Weight: 55.12 lbs / 25 kgs Battery Charge Time: 8 - 10 hours...
- Page 9 Parts and Feature A. Car Body B. Steering Wheel C. Charger D. Seat E. Rear Wheel F. Front Wheel G. Wheel Cover H. Side Bracket (L/R) I. Rear Spoiler Small Washer (M8 x 1.3mm) Washer (M12 x 1.5mm) L. Nut M.
-
Page 10: Assembly Instruction
Assembly Instruction WARNING! This product should only be assembled by an adult. Children can be harmed by small parts, sharp edges and points or by electrical items. Care should be taken when unpacking and assembling the vehicle. (N) Screw (H) Side Bracket •... - Page 11 12LP (4 motors): (E) Rear Wheel (F) Front Wheel (J) Small Washer (J) Small Washer (M8 x 1.3mm) (M8 x 1.3mm) (G) Wheel Cover (L) Nut (L) Nut (G) Wheel Cover • Assemble a Front Wheel (F), M8 Small Washer (J) to the front axle, and secure with a Nut (L). Then cover with a Wheel Cover (G).
- Page 12 Assembly Instruction (B) Steering Wheel • Connect the steering rod and steering wheel connectors by the correspond colored wires. • Insert the Steering wheel into the slot of the steering column. Connector • Connect the electric wire from the battery to the car body.
- Page 13 Assembly Instruction （1）Align and insert the two joints of seat to the slots on the seat base as above diagram. (2) Align and press/snap the Seat (D) to the slot on the car body as above diagram.
- Page 14 Assembly Instruction Seat dis-assembly: Push the button to right if you want to detach the Seat (N) Screw (I) Rear Spoiler • Connect the light connectors (please retract the wires into the square slot after connection), align and insert then snap the Rear Spoiler (I) to the car body. •...
-
Page 15: User Instruction
User Instruction Light Switch Speed Switch Media Player Forward / Reverse Lever Power Button Accelerator Pedal Horn Sound Engine sound Button and next music track button Control the vehicle A. Power Button Press and hold the power button to turn ON and OFF the vehicle. B. - Page 16 Insert and play music from an external device by connecting via USB port or AUX port. • External device can be connected to the media player via Bluetooth. - Turn on the Bluetooth setting on the device. - Select “KIDZONE RIDE-ON” from the device list searched by the device.
- Page 17 User Instruction (Remote Control) One light=slow speed Two lights=middle speed Three lights=high speed For your child's safety, please make sure the seat belt is securely fastened when operating this product. The battery should only be replaced by an adult. Remove the cover on the back of the controller and insert two AAA (LR03) batteries in correct polarity. WARNING: Do not mix old and new batteries.
- Page 18 User Instruction (Charging) Two methods for charging: WARNING! The battery should only be charged by an adult. The battery is not replaceable. Charging the battery 1. Locate the charging port on the car body (near the seat) or directly on the battery. 2.
- Page 19 User Instruction Protective Fuse • When electrical current exceed certain rating, the fuse will cut o power supply for 10 seconds automatically. WARNING • DO NOT remove or bypass the protective fuse. Removing or bypassing the fuse may overload and damage the electrical system. Battery Replacement In the event of battery malfunction and need to be removed, 1.
-
Page 20: Care And Maintenance
Care and Maintenance • Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts if necessary. • Make sure there is no cracked or broken plastic parts. • Keep away the product from heat and humid area, cover it with trap when not in use •... - Page 21 Troubleshooting Problem Possible Reason Solution Check if the battery connectors Poor wire connection Contact Customer service if Vehicle needs a push to go necessary forward “Dead spot” on motor Contact customer service Loud grinding sound or clicking Damaged motor or gear box Contact customer service sound from the motor or gear box Disconnected / Badly connected...
