Instruction Manual

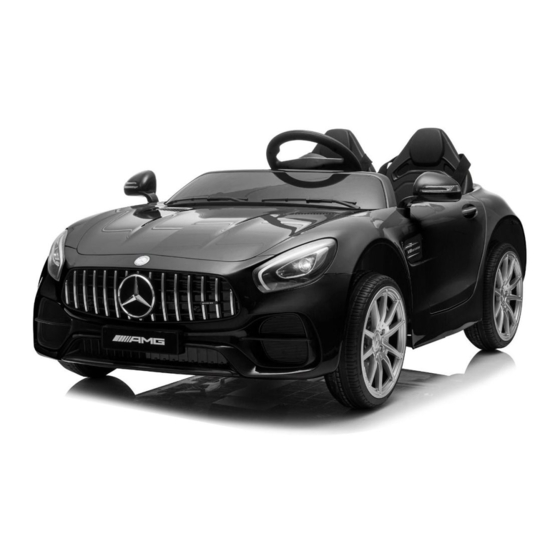

Licensed Mercedes-Benz AMG GT 2 Seater Ride On (12V)
Item number: 060-ROT-23L
Note: Product appearance and colors may vary from the photo.
This vehicle is packed with the battery disconnected.
Connect the battery before use.
This manual contains important safety, performance
and maintenance information. Read the manual before
allowing your child to ride your new electric ride-on toy.
Keep this manual properly for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kidzone 060-ROT-23L
Summary of Contents for Kidzone 060-ROT-23L
- Page 1 Instruction Manual Licensed Mercedes-Benz AMG GT 2 Seater Ride On (12V) Item number: 060-ROT-23L Note: Product appearance and colors may vary from the photo. This vehicle is packed with the battery disconnected. Connect the battery before use. This manual contains important safety, performance and maintenance information.
-
Page 2: Safety Instruction
Safety Instruction When using electrical product, basic safety precaution should always be followed including the following Read all Instruction before operating this product WARNING: • To Protect against electrical shock, do not immerse cord, charger, transformer, battery, or the product in water or other liquid. •... -
Page 3: Prevent Fire
WARNING: PREVENT FIRE • Never modify the electrical system. Alterations could cause a re resulting in serious injury and could also ruin the electrical system. • Use of the wrong type of battery or charger could cause a re or explosion resulting in serious injury. - Page 4 WARNING • Riding a motorized ride-on toy can be a dangerous activity, even under the best of circumstances. Good choices regarding where and when to ride, constant adult supervision of riding, and practice and careful riding by the child can all help to minimize risk.
- Page 5 WARNING 11.Do not mix old and new batteries. 12.Do not mix alkaline, standard (carbon zinc), or rechargeable batteries. 13.Firmly instruct children to use the ride-on toy in a safe manner. Unsafe behaviors include, but are not limited to: • Traveling at unsafe speeds •...
- Page 6 WARNING Flammable and Explosive Materials Warnings • Use of a battery or charger other than the supplied rechargeable battery and charger may cause a re or explosion. Only use the supplied rechargeable battery and charger with the ride-on toy. • Do not charge the battery near heat or ammable materials. •...
- Page 7 CAUTION Re-Charge Interval and Time Important! • Damage to the battery may occur if it is allowed to drain completely. Do not allow the battery to drain completely. • Check the battery and charger (supply cord, connector) for wear and damage before charging.
- Page 8 Motor: 12V, 45W*2, 12000rpm Battery: 12V7AH x1 Charger: 15V1000mA Speed: 0.7 – 3.1 mph Suitable Age: 37 - 72 months Maximum User Weight: 88 lb / 40 kg Dimension: 46 x 29 x 19 INCH / 116.8 x 73.7 x 48.3 CM Battery Charge Time: 8 - 12 hours Operation Time: 1 - 2 hours First Charging Time：8-12 hours...
- Page 9 Parts and Feature A (Steering Wheel) E (Remote Control) F (Wind Shield) J (Wheel) H (Wheel Cover) L (Rear View Mirror L) R (Rear View Mirror R) N (Seat) P (M8 Spanner) X (Self-Tapping Screw) Q (Charger)
-
Page 10: Assembly Instruction
Assembly Instruction Use the spanner (P) to loosen the M8 nut (2) and gasket (1) from the rear axle. Remove and put the protective cover (3) from the axle in the trash. Install the wheel (J) to the rear axle (4). Use spanner (P) to secure the wheel with M8 gasket (1) and M8 nut (2) and cover the wheel with wheel cover (H). - Page 11 Assembly Instruction Use the spanner (P) to loosen the M8 nut (2) and M8 gasket (1) from the front axle (3). Slide the wheels (J) to the front axle (3). Use spanner (P) to secure the wheel with M8 gasket (1) and M8 nut (2) and cover the wheel with wheel cover (H).
- Page 12 Assembly Instruction Connect the steering wheel terminal (M) and the body terminal (S), then align the steering wheel (A) to the steering column and connect as shown in the diagram. steering column Assemble the wind shield (F) to the corresponding groove on the car body. Align and insert rear view mirror (C) (D) to the car body.
- Page 13 Assembly Instruction First find out the 2 red power terminals under the seat and connect them. Assemble the seat (N) to the car body and secure it in place with 2 self - tapping screws (X) by screwdriver .
-
Page 14: User Instruction
User Instruction Control the vehicle 1. Start Switch 2. Light Switch 3. Music Button 4. Horn Button Press the button the horn.Press and hold the button to decrease volume. 5. Forward / Reverse Switch Press the switch to control the vehicle to move forward / reverse. - Page 15 User Instruction Speed Switch Charging Port Speed Switch Control the speed of the vehicle in slow or fast. NOTE: The vehicle can only be operated in slow for reverse. User Instruction (Fuse) Resettable Fuse resume. WARNING: Do not bypass the fuse. The fuse is designed to protect the product from overload and electrical system damage.
- Page 16 User Instruction (Multifunction Player) A. Battery Level Screen The screen display battery level. B. USB connector insert USB to play the music. NOTE: Only support MP3 le format. C. Previous Track / Decrease Volume Press the button once to play the previous track. Press and hold to decrease volume. D.
- Page 17 User Instruction (Remote Control) Using the remote control The remote control should only be used by adult. To pair the remote control to the vehicle, 2. Turn on the power of the vehicle. Control the vehicle • Press the directional buttons to move the vehicle. •...
- Page 18 Changing the battery 1. Remove the cover on the back side with a screwdriver. 2. Replace the old battery with two new AAA 1.5V batteries in correct polarity. 3. Put the cover back in place and secure with the screw. 4.
- Page 19 Charging the battery 1. Insert the charging cable to the charging port located below the vehicle seat. 2. Insert the charger plug into a wall outlet. • The vehicle must be OFF when charging. • Recharge the battery if the vehicle operates slowly. •...
-
Page 20: Care And Maintenance
Care and Maintenance • Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts if necessary. • Make sure there is no cracked or broken plastic parts. • Keep away the product from heat and humid area, cover it with trap when not in use. •... - Page 21 Troubleshooting Problem Possible Reason Solution Check if the battery connectors Poor wire connection Contact Customer service if Vehicle needs a push to go necessary forward “Dead spot” on motor Contact customer service Loud grinding sound or clicking Damaged motor or gear box Contact customer service sound from the motor or gear box Disconnected / Badly connected...
- Page 22 Model: 2ARLM-CST-1A FCC ID: CST-1A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
-
Page 23: Warranty Terms
It is the retailer’s responsibility consumer, or other parties not authorized by to contact KIDZONE with a claim. We will not KIDZONE will void this warranty. handle claims from consumers directly; all 3.
