Instruction Manual

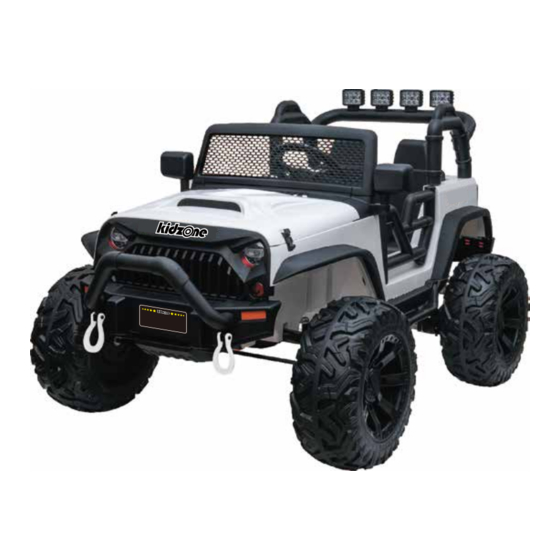

Ride On SUV Personalize License Plate (24V)
Item number: 060-ROT-02V2
*Product appearance and colors may vary from the photo.
ATTENTION
This vehicle is packed with the battery disconnected. Connect
the battery before use.
This manual contains important safety, performance and
maintenance information. Read the manual thoroughly before
allowing your child to ride your new electric ride-on toy. Failure
to read the user manual can result in property damage or bodily
injuries. Keep this user manual for future reference.
Advertisement
Related Manuals for Kidzone 060-ROT-02V2
Summary of Contents for Kidzone 060-ROT-02V2
- Page 1 Instruction Manual Ride On SUV Personalize License Plate (24V) Item number: 060-ROT-02V2 *Product appearance and colors may vary from the photo. ATTENTION This vehicle is packed with the battery disconnected. Connect the battery before use. This manual contains important safety, performance and maintenance information.
-
Page 2: Safety Instruction
Safety Instruction When using electrical product, basic safety precaution should always be followed including the following: Failure to follow the safety instructions may result in property damage, serious injury or death. This owner’s manual contains assembly, use and maintenance instruction, and child safety warning. Adult /guardian supervising children should read and understand this manual before allowing any child to use the product. - Page 3 WARN • RISK OF FIRE. Do not bypass. Replace only with original size and type. • Do not use this product in any slippery conditions including rain, snow, and ice, or at any potential dangerous places. Always drive the vehicle on smooth surface, and do not drive the vehicle on the tall grass or rugged ground.
-
Page 4: Prevent Fire
WARNING WARNING Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or losses, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use, inadequate maintenance, unapproved modi cation, or neglect of this product. CHOKING HAZARD - Small parts. - Page 5 FAILURE TO FOLLOW THE SAFETY INSTRUCTIONS LISTED BELOW MAY RESULT IN SERIOUS INJURY OR DEATH. Child Safety Warnings • Adults supervising children must read and understand this entire manual before allowing any child to use this product. • Adults must evaluate their own children as to maturity, strength, judgment and ability to follow safety rules.
- Page 6 WARN 5• If necessary, adults and supervisors are always responsible for setting up gates and barriers to ensure a safe riding environment for the child rider. 6• Be aware that this ride-on toy does not have braking capabilities. Allowing use of this ride-on toy in areas that require braking may cause rolls, crashes, serious injury, or death to the child rider.
- Page 7 WARN Battery and Charging Warnings The following safety hazards may result in serious injury or death to the user of the ride-on: Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc), or rechargeable • Corrosive Material Warnings Battery posts, terminals and related accessories contain lead and lead •...
- Page 8 WARN • Regularly check charger, supply cord and connector for wear and damage. Look for frayed or kinked wires, any exposed inner wires, any missing insulation. If any damage is observed do not plug in the charger and do not charge the battery.
- Page 9 Item: 060-ROT-02V2 Battery：12V7AH*2（24V） Motor：200W*2,550,20000rpm Age：37-96 Months Max Weight：77.2 LBS / 35.0 KGS Product Dimension：48.4” x 34.6” x 31.5” Speed：1.8-3.1MPH Play time：about 50 minutes Charger：DC 28.8V 500mA First charging time：8-12hours ：8-10hours Max charging time：12 hours Battery (Temperature tolerance)：-68 F to 140 F...
- Page 10 Parts and Feature Parts and Feature N (Lamp Frame) L (Lamp Holder) H (Wind Shield) D (Motor) M (Seat) (Rear bumper) I (Rear View Mirror) (Car Body) (Rear mudguard) J (Fender) C (Rear Axle) K (Bracket) E (Front Bumper) B (Front Axle Assembly) G (Rear Wheel) O (Wheel Cover) F (Front Wheel)
-
Page 11: Assembly Instruction
Assembly Instruction To attach the rear bumper to the vehicle the vehicle body and push the rear bumper into the vehicle body slot. Secure the rear bumper to the body by using M4x10 screws (refer to the enlarged photo for details) Assemble rear fender to the side of the car body and secure using M4x10 screws... - Page 12 Assembly Instruction These big nuts and small washers are pre-installed on the L shape shafts. Complete the front axle assembly. Turn the car body and assemble the front axle assembly to the vehicle bottom and secure using 8 pcs M4x16 screws. Connect the direction lever and secure using a small washer and small nut.
- Page 13 Assembly Instruction Assembly Instruction Right side Left side The rear shaft get through the hollow tube Big Washer Big Nut Detach both protective cover from the end of rear shaft and take it out from the hollow tube, insert the rear shaft through the rear axle assembly hole and get through the hollow tube till to another side hole.
- Page 14 Assembly Instruction Assemble the washer, front wheel, follow by another washer to the front axle and secure with nut by the provided big nut driver, then cover it with the wheel cover. Repeat the same steps on another side. Remove the screw and nut from the steering wheel. Slide the steering wheel to the car body and align the screw hole.
- Page 15 Assembly Instruction Insert the windshield and rear-view mirrors on the vehicle body. As shown on the photo, before install the right body frame to the car body, connect the male and female Note: after the wire has been connected, retract the connector and wire into the slot hole of the light frame, so that it will be installed the light frame better.
- Page 16 Assembly Instruction Connect the motor wiring under the seat, the male connectors can be connected in either female connector. Open the front hood (unlock the two lock catches on the hood), connect the red wire to the battery red terminal. Assemble the seat on the car body and secure with 2 pcs M4 x 16 screws.
- Page 17 Assembly Instruction Insert the front bumper to the front of the car.
-
Page 18: User Instruction
User Instruction Fast MODE Slow LAMP PREV VOL- Back NEXT VOL+ Control the vehicle 1. Light Button To turn the lights on the rear tailstock on or o . 2. Multifunction Button AUX / Flash driver 3. Speed Button Select between high and l ow speed. - Page 19 Bluetooth connection To connect your mobile device to the vehicle, turn on the Bluetooth and select "Kidzone Ride-On". You can hear a voice message of connected successfully after pairing. Music can be played from the vehicle speaker according to the user preferences.
- Page 20 User Instruction (Remote Control) Pause Forward Right Backward Pairing Button Left Speed Button Using remote control The remote control should only be used by adult. Remote control will over ride all control input from the vehicle. To pair the remote control to the vehicle by below two methods: 1.
- Page 21 AAA 1.5V Loosen a screw Load two AAA(1.5V) batteries WARNING! The battery should only be replaced by an adult. Replacing the battery 1. Open the battery cover by loosen the screw with a screwdriver. 2. Replace the old battery with two new AAA 1.5V batteries in correct polarity. 3.
- Page 22 User Instruction (Charging) WARNING! The battery should only be charged by an adult. Charging the battery 1. Insert the charging cable to the charging port located below the dashboard. 2. Insert the charger plug into a wall outlet. · The vehicle must be OFF when charging . Recharge the battery if the vehicle operates slowly.
-
Page 23: Care And Maintenance
Care and Maintenance • Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts if necessary. • Make sure there is no cracked or broken plastic parts. • Keep away the product from heat and humid area, cover it with trap when not in use. •... - Page 24 Troubleshooting Problem Possible Reason Solution Check if the battery connectors Poor wire connection Contact Customer service if Vehicle needs a push to go necessary forward “Dead spot” on motor Contact customer service Loud grinding sound or clicking Damaged motor or gear box Contact customer service sound from the motor or gear box Disconnected / Badly connected...
- Page 25 Vehicle: Model : 060 -ROT -02V2 FCC ID: 2AX5C-JC666 Controller: Model: JR1839FCC FCC ID: 2AWOBJR1839 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 26 It is the retailer’s responsibility consumer, or other parties not authorized by to contact KIDZONE with a claim. We will not KIDZONE will void this warranty. handle claims from consumers directly; all 3.
