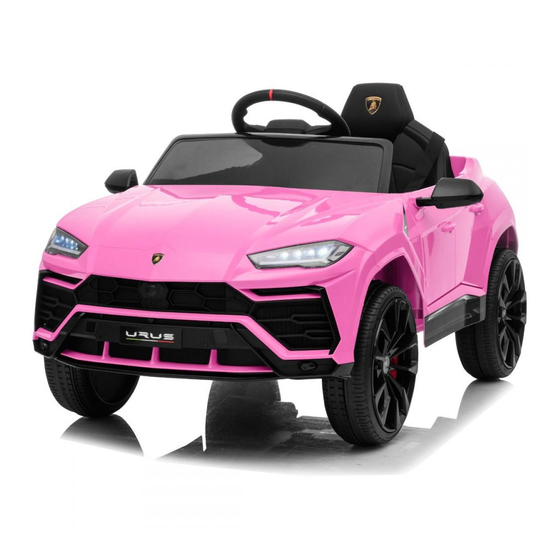

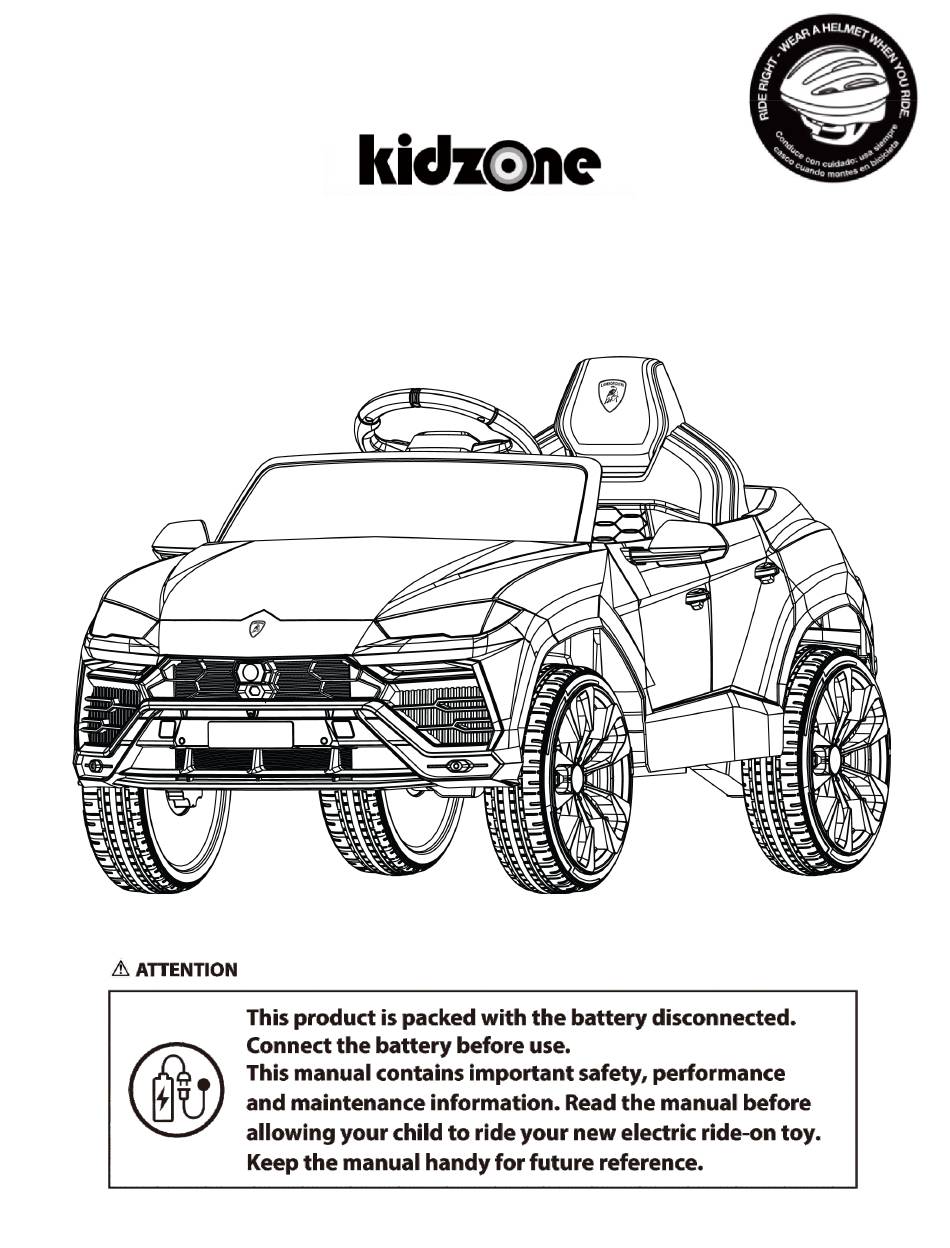

- Page 1 Licensed Lamborghini Urus Ride On (12V)5 item number: 060-ROT-22L...
-
Page 2: Safety Instruction
Safety Instruction When using electrical product, basic safety precaution should always be followed including the following Read all Instruction before use • To Protect against electrical shock, do not immerse cord, charger, transformer, battery, or the product in water or other liquid. •... - Page 3 Parts and Feature A (Steering Wheel) C (Rear View Mirror) D (Wheel Connecter) E (Remote Control) F (Wind Shield) G (Wheel) H (Wheel Cover) I (Seat) Q (Motor R) Y (Motor L) X (Self-Tapping Screw) L (M8 Spanner) T (Charger)
-
Page 4: Assembly Instruction
Assembly Instruction Use the spanner to loosen the M8 nut (2) and gasket (1) from the rear axle. Remove the protective cover (4) from the axle. Plug the Motor terminal (1) to (2), then slide the motor (Q) (Y) to the axle, following by the wheel connector (D). - Page 5 Assembly Instruction Use the spanner to loosen the M8 nut (2) and M8 gasket (1) from the front axle (3). Slide the wheels (G) to both rear (3) and front axle (4). Secure with M8 gasket (1)(5) and M8 nut (2) (6).
- Page 6 Assembly Instruction Connect the terminal (S) and (M). Then align the steering wheel (A) to the steering column (1). Press the knotch Install the windshield (F) to the car.
- Page 7 Assembly Instruction Connect the power terminal. Install the seat (I) to the car and aline the hooks on the back to the groove on the car body. Secure it in place with 2 tapping screws (X). Install rear view mirror (C1) (C2) to the car.
-
Page 8: User Instruction
User Instruction Control the vehicle 1.Start Switch Turn the product on and off . 2.Light Switch Turn the light on and off. 3.Music Button In the FM mode or USB mode, press the button once to play the next track. Press and hold to increase volume. - Page 9 User Instruction Speed Switch Charging Port Speed Switch Control the speed of the vehicle in low or high. NOTE: The vehicle only operate in 1 speed for reverse. User Instruction (Fuse) Resettable Fuse When the current exceeds a preset rating, the fuse will cut off power supply for 5 - 10 seconds before curret resume.
- Page 10 User Instruction (Multifunction Player) A.Battery Level Screen The screen display battery level. B. USB connector Insert USB to play the music. Note: Only support MP3 le format. C.Previous Track / Decrease Volume Press the button once to play the previous track. Press and hold to decrease volume. D.Play / Pause Press the button to pause.
- Page 11 User Instruction (Remote Control) Using the remote control The remote control should only be used by adult. ⚠WARNING! The battery should only be changed by an adult. Charging the battery • Remove the cover on the back side with a screwdriver. •...
- Page 12 User Instruction (Charging) ⚠WARNING! The battery should only be charged by an adult. Charging the battery 1. Insert the charging cable to the charging port located below the vehicle seat. 2. Insert the charger plug into a wall outlet. • The vehicle must be OFF when charging.
-
Page 13: Care And Maintenance
Care and Maintenance • Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts if necessary. • Make sure there is no cracked or broken plastic parts. • When not using store the product away from heat source, cover it with a tarp and away from wet weather. - Page 14 Troubleshooting Problem Possible Reason Solution Check if the battery connectors are rmly connected. Poor wire connection Contact Customer service if Vehicle needs a push to go necessary forward “Dead spot” on motor Contact customer service Loud grinding sound or clicking Damaged motor or gear box Contact customer service sound from the motor or gear box...
-
Page 16: Warranty Terms
2. Any product modifications by dealer, any circumstances. It is the retailer’s responsibility consumer, or other parties not authorized by to contact KIDZONE with a claim. We will not KIDZONE will void this warranty. handle claims from consumers directly; all 3.
