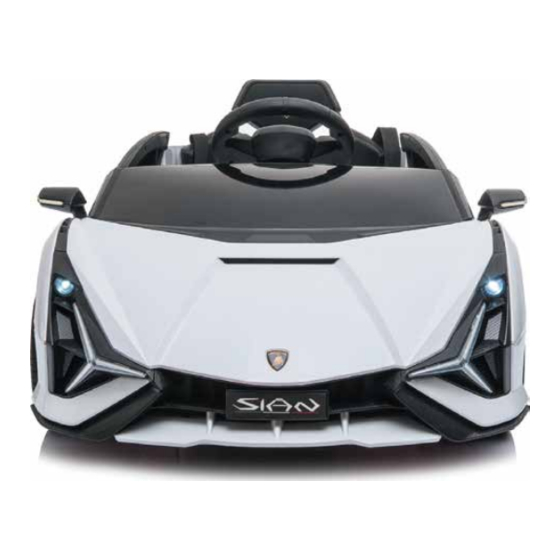

- Page 1 Licensed Lamborghini SIAN Ride On (12V) item number: 060-ROT-01L ATTENTION This product is packed with the battery disconnected. Connect the battery before use.
-
Page 2: Safety Instruction
For your chlid's safety, pls make sure fasten the seat belt when using this product. • Personal protective equipment such as helmet is needed when using this product. OBO Model No. : 060-ROT-01L Battery: 12V4.5AH Motor: 12V , 25W*2, #390,12000RPM Age Months: 37-95 Months Max Weight: 55.12LB... - Page 3 Parts and Feature E (Steering Wheel) G (Seat) D (Wheel Cover) F (Wind Shield) H (Rear View Mirror) A (Car Body) C (Rear Wheel) B (Front Wheel) J (Remote Control) I (Charger) N(MP3 Cable) K (Washer) L(Cotter Pin)
-
Page 4: Assembly Instruction
Assembly Instruction ① ② ① Washer ② ① Cotter Pin Washer Please take down the rubber band,it only for immobilization.) （ Assemble the rear wheel to the rear axle and secure the wheel in place with a washer and cotter pin, then snap on the wheel cover. - Page 5 Assembly Instruction Assemble the windshield to the vechile body by aligning the slots. Connect the power cord to the battery located underneath the seat.
- Page 6 Assembly Instruction Remove the screws on the vehicle body. Assemble the seat to the vehicle and secure with the removed screws. Insert the left rear view mirror to the left side of the vehicle body, then repeat the same on the right side.
-
Page 7: User Instruction
User Instruction Power display Dashboard Power switch Horn Light switch Horn Speed switch PREV/volume down Forward Pause/Play Stop Next/volume up Back Mode switch Control the vehicle 1.Power display 2.Dashboard 3.Power switch: Press to turn on or o the vehicle. 4.Light switch:Flip the switch to turn the light on and o . 5.Speed switch: Flip the switch to choose between high and low speed. - Page 8 User Instruction (Remote Control) Forward Brake Right Speed Back Left Speed display Using the remote control The remote control should only be used by adult. To pair the remote control to the vehicle, 1. Press and hold the forward and backward button for 3 seconds on the remote control,the light flicker. 2.
- Page 9 User Instruction (Charging) WARNING! The battery should only be charged by an adult. Charging the battery 1. Insert the charging cable to the charging port located below the vehicle seat. 2. Insert the charger plug into a wall outlet. The vehicle must be OFF when charging. •...
-
Page 10: Care And Maintenance
Care and Maintenance • Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts if necessary. • Make sure there is no cracked or broken plastic parts. • When not using store the product away from heat source, cover it with a tarp and away from wet weather. - Page 11 Troubleshooting Problem Possible Reason Solution Check if the battery connectors are rmly connected. Poor wire connection Contact Customer service if Vehicle needs a push to go necessary forward “Dead spot” on motor Contact customer service Loud grinding sound or clicking Damaged motor or gear box Contact customer service sound from the motor or gear box...
-
Page 12: Warranty Terms
It is the retailer’s responsibility consumer, or other parties not authorized by to contact KIDZONE with a claim. We will not KIDZONE will void this warranty. 3. Floor samples sold or products designated requests must go through the retailer who sold “AS IS”...
