CDN DTP572 Quick Start Manual

CDN DTP572 Quick Start Manual

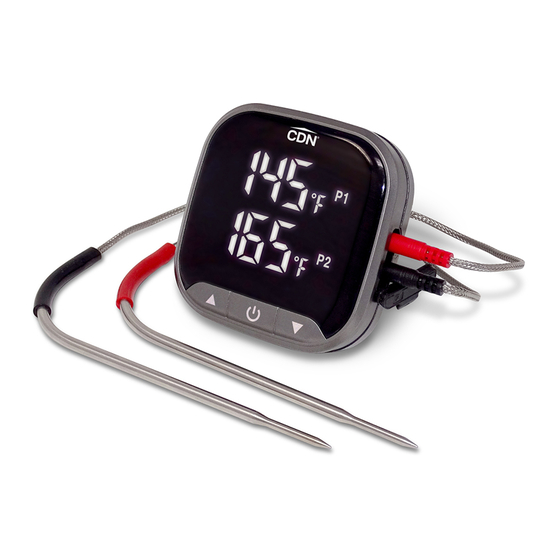

Dual probe thermometer

Advertisement

Quick Links

FOR MONITORING TEMPERATURES
WHILE COOKING
Monitors temperature while cooking
Displays actual temperatures of both probes
Audio/visual alerts when food is done
Waterproof (IPX5)
2.5 mm reduced tip
Accuracy: ±2°F (1°C)
Programmable
Backlit extra-big digits
On/off button
Auto-off
Selectable units
Temperature guide
4" (11.2 cm) probes
3' (91.4 cm) high heat sensor cables (heat resistant
up to 572°F (300°C) for 3 hours)
2-way mounting: magnet, stand
Rechargeable battery, charging cable & instructions
included
Note:
Remove label from display before initial use.
Clean the thermometer stem before each use.
Tel 800 338-5594 Fax 800 879-2364 Web CDNmeasurement.com

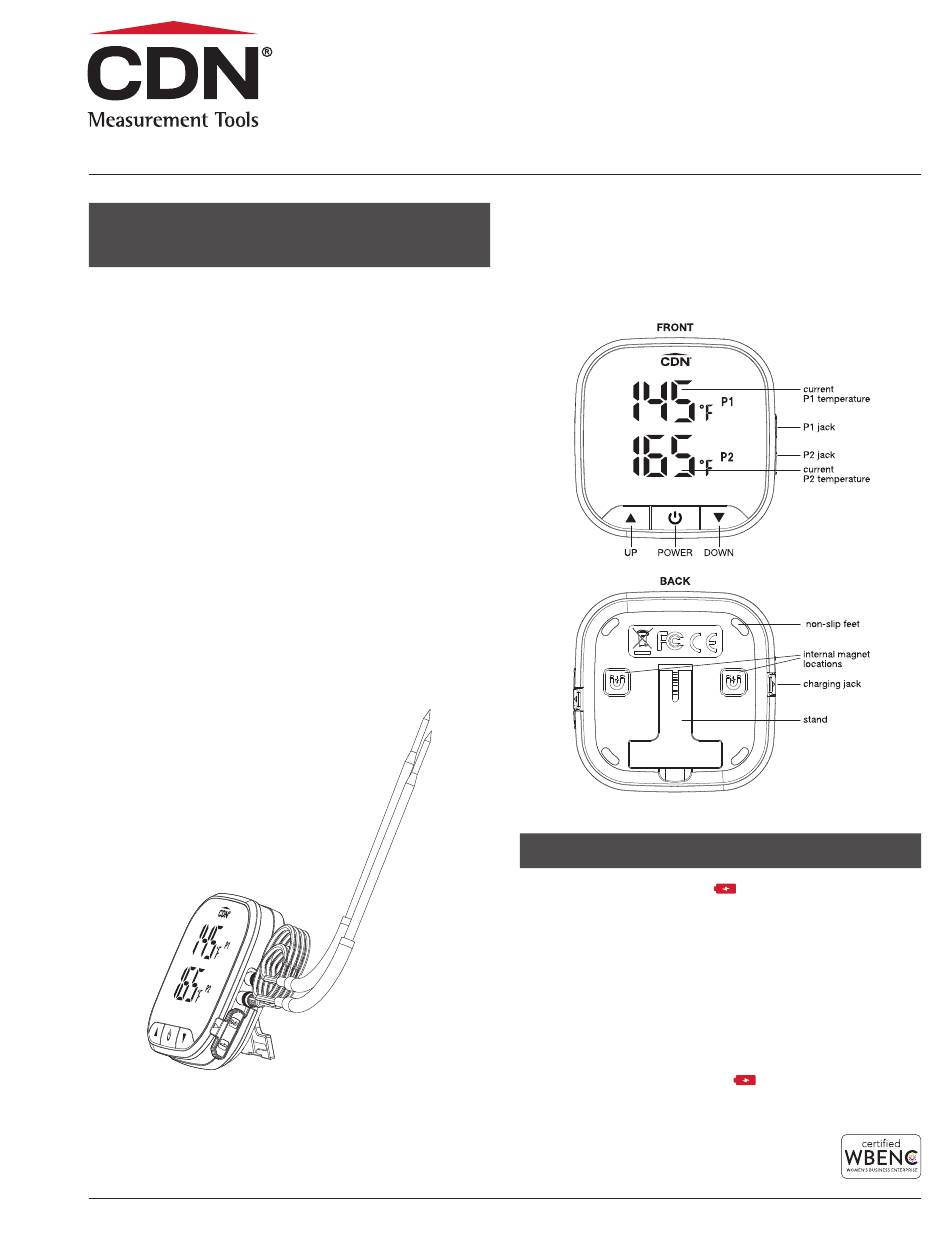

DUAL PROBE THERMOMETER
Note:
In the following instructions, names of the control
buttons are shown in CAPS. Function information that
appears on the display is shown in BOLD CAPS. The
buttons on this thermometer are touch buttons which do
not require strong pressure.
CHARGING THE BATTERY
The red BATTERY ICON (
when battery status is low (below 3.3V) and needs to
be charged. The battery is built-in and does not need
to be replaced. Under normal working conditions, the
battery icon does not appear on the display.
1. Insert the USB-C plug into the jack on the left side
of the case. Insert the USB-A plug into a USB-A
power source (5V/1A).
Note:
Use only an original CDN charging cable. The use of
another cable is subject to approval by CDN.
2. The red BATTERY ICON (
display while charging. Allow the thermometer to
charge for 1-2 hours.
Model: DTP572
-58 to +572°F/-50 to +300°C,
) appears on the display
) appears on the
