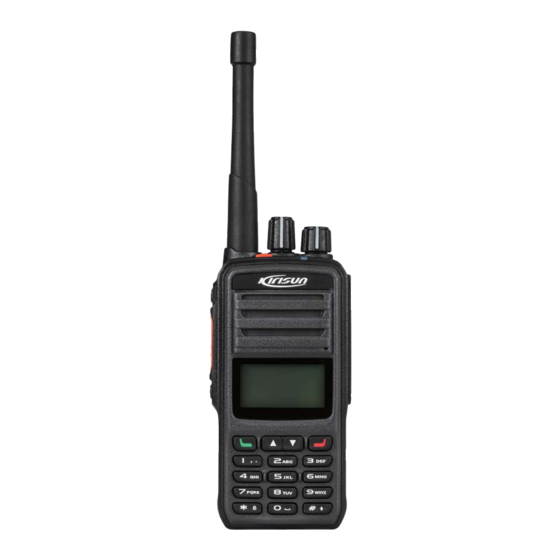

DP580 Digital Two-way Radio
2

Advertisement

Table of Contents
loading

Related Manuals for Kirisun DP580

Summary of Contents for Kirisun DP580

  • Page 1 DP580 Digital Two-way Radio...
  • Page 2 Thank you for choosing Kirisun mobile radio. We believe that the product will bring much convenience to your work and life. Kirisun mobile radios adopt advanced technology and fine technique. We hope that you will be satisfied with the quality and functions of the product.
  • Page 3 Kirisun and its authorized subjects. Without permission of Kirisun and such subjects, no copy, extraction or translation of such parts is allowed. ◆ The product is subject to change because of upgrading or improvement. Kirisun reserves the right to change the specifications of software and hardware mentioned in the manual from time to time without prior notification.
  • Page 4 DM588 Digital Mobile Radio Safety Precaution According to governmental decrees, it is prohibited to operate radio transmitters without permission within the area of its jurisdiction. Violation to such stipulations may result in penalty or be arrest. Maintenance on the product can be performed only by professional technicians.
  • Page 5 User Manual Battery To prevent fire, personal injury and damage to the radio, please abide by the followings. ◆ It is suggested to have the radio to transmit continuously for 1 minute and receive continuously for 4 minutes at most at a time. Transmissions for a long time or continuous operation under high power will result in overheat at the back of the radio.

  • Page 6: Table Of Contents

    DM588 Digital Mobile Radio CONTENTS 1. UNPACKING..........................3 2. OVERVIEW...........................5 ..........................5 2.1 A PPEARANCE ........................6 2.2 P ROGRAMMING ............................9 2.3 I CONS ........................... 11 2.4 LED I NDICATOR 3. INSTALLATION...........................11 4. BASIC FUNCTIONS........................13 ..........................13 4.1 P OWER ........................14 4.2 S ELECTING A ........................14...
  • Page 7 User Manual ........................22 5.3 E MERGENCY LARM )....................25 CALL LOGS IGITAL ............................ 27 5.5 S ETTINGS ..........................30 5.6 A PPLICATION ........................32 5.7 D ETECTING A ADIO ..........................32 5.8 C LERT ..........................33 5.9 M ONITORING .......................... 34 5.10 L ORKER 5.11 E...

  • Page 8: Unpacking

    DM588 Digital Mobile Radio 1. Unpacking Open the packing box carefully and find the parts as listed below. If any item is missing or damaged, please contact the dealer.
  • Page 9 User Manual Please find the following items in the package. Item Radio Hand microphone Bracket Microphone stand, with 3 M2.6*10 self-tapping screws Fuse Power cord ST5*16 self-tapping screw Wing screw (flat washer and spring washer included) Certificate of Approval User Manual or Quick Installation Guide...

  • Page 10: Overview

    DM588 Digital Mobile Radio 2. Overview 2.1 Appearance...

  • Page 11: Programming Keys

    User Manual Item Item LED Indicator Speaker Menu/OK Key Up/Down/Left/Right Keys P1~P3(Programming Keys) Hand Microphone/Programming Down Key Interface Emergency Key LCD Screen On/Off Key Return Key Volume/Channel Knob RF Antenna Interface 3G/4G Antenna Interface External Speaker Interface (Optional) Antenna Interface Bluetooth Antenna Interface (Optional) (Optional)
  • Page 12 DM588 Digital Mobile Radio High/Low Power Switch between high and low power. If signaling is transmitted through the current analogue channel, press the key to switch to carrier squelch mode Monitor (i.e. cancel signaling). Voice is output when the carrier is matched.
  • Page 13 User Manual Home Interface Return to the home interface. Home Channel Switch to a preset channel. Keyboard Lock Lock or unlock the keyboard. One-Key Call (1~6) Press the key to make a call or send a message. For a channel allowing scrambling*/encryption, press the key to enable/disable encryption.

  • Page 14: Icons

    DM588 Digital Mobile Radio Press: Press down a key and release quickly. Press and hold: Press down a key and hold for the duration programmed before release. (The duration can be set in programming settings.) A function marked with * is to be developed. 2.3 Icons Name Icon...
  • Page 15 User Manual enabled, this icon is displayed. The radio is operating under emergency alarm Emergency Alarm mode. Locationing is successful and data is being received. GPS function is enabled, but no data can be received. When the icon rotates, scanning is in progress. Scan Scanning stops in the prior channel 1 or 2.

  • Page 16: Led Indicator

    DM588 Digital Mobile Radio 2.4 LED Indicator State Description Red light on Transmitting signals Green light on Receiving signals A call is received, and the radio is in the duration before Orange light on automatic reset (under analogue mode) * or in the duration before call hangup (under analogue mode).
  • Page 17 User Manual While drilling holes, protect the internal wires of a vehicle or of other devices from being  damaged. Leave enough space behind the radio for wiring.  Make sure the power cord is long enough so that the radio can be maintained with the power ...

  • Page 18: Basic Functions

    DM588 Digital Mobile Radio 7. Plug the hand microphone (with the direction sign on the top) into the corresponding interface of the radio, and rotate clockwise the cover lock on the plug. When the lock contacts the slot on the radio, press it a bit and continue to rotate it until it is tight.

  • Page 19: Selecting A Zone

    User Manual Power On  Press the Power On/Off key and hold until the startup interface is displayed on the LCD screen, and then release the key. Backlight is on automatically, and voice prompt “di di” is given off. Power Off ...

  • Page 20: Regulating Volume

    DM588 Digital Mobile Radio 2. In the Channel Switching interface, rotate the Volume/Channel knob clockwise to switch to a channel of a bigger number, or rotate it counterclockwise to switch to a channel of a smaller number. Note: Every channel can be configured as an analogue or a digital channel. In analogue mode, some functions are disabled, for example, short messages, and corresponding menu items are hidden.

  • Page 21: Receiving/Replying To A Call

    User Manual 1. In the home interface, press the Menu key. 2. Select “Contact” by pressing the Up and Down keys. 3. Press the Menu/OK key. 4. Select “Contact List” by pressing the Up and Down keys. 5. Select a contact by pressing the Up and Down keys. 6.

  • Page 22: Advanced Functions

    DM588 Digital Mobile Radio and a call icon ( individual call, group call, and all call), alias or ID, and incoming call icon are displayed on the LCD screen. Note: To receive a group call from another user, you need to have the radio set as a member of the group. The setting can be done by your dealer.
  • Page 23 User Manual Switch to another input method by pressing #, or switch between upper case and lower case.  Under non-digit input mode, enter punctuations by pressing “1”.  Delete the previous character to the cursor by select “Delete”.  6.

  • Page 24: Scanning Channels

    DM588 Digital Mobile Radio 8. After editing, click the Menu/OK key. 9. Select “Send” by pressing the Up and Down keys. 10. Select a contact, and press the Menu/OK key. 5.1.3 Receiving a Message When a short message is received, a message will be prompted on the LCD screen, and the icon of unread message will be displayed in the status bar.
  • Page 25 User Manual 4. Select “View Scan List”, and view the channels in the list ( prior channel 1, prior channel 2, normal channel). Note: In a scan list, you can set prior channel 1 and prior channel 2, and they are not displayed if not set. Adding Scan Channel 1.
  • Page 26 DM588 Digital Mobile Radio 6. Cancel a prior channel by selecting “Cancel Prior Channel”. 5.2.2 Enabling/Disabling Scanning 1. In the home interface, press the Menu key. 2. Select “Scan” by pressing the Up and Down keys. 3. Press the Menu/OK key. 4.

  • Page 27: Emergency Alarm

    User Manual 2. Within the scan suspension duration, press the PTT key. The red LED indicator light will be on. 3. After the prompt tone for talk (if enabled) is over, speak into the microphone. 4. To receive voice, release the PTT key. 5.
  • Page 28 DM588 Digital Mobile Radio background tone by pressing the PTT key and talking into the microphone. Emergency Alarm Followed by Voice  In this mode, you can send an alarm message by pressing the Emergency Alarm key, and send voice and background tone by talking into the microphone.
  • Page 29 User Manual message icon will be displayed on the LCD screen. When a response is received, “Emergency alarm succeeded” will be displayed on the LCD screen. When no response is received and the maximum times of alarm have reached, “Emergency alarm failed” will be displayed on the LCD screen.

  • Page 30: Call Logs (Digital Mode Only)

    DM588 Digital Mobile Radio In Emergency Alarm Only mode, a response is received.  The preset maximum times of emergency alarm have reached, but no response is received.  The Emergency Alarm key pressed and held.  5.4 call logs (Digital Mode Only) This function enables you to view and manage the records of recent outgoing calls, received calls and missed calls.
  • Page 31 User Manual To store a call record to the contact list, perform the followings. 1. Select a record from the list of missed calls, outgoing calls or received calls. 2. Select “Save” to go to the Add Contact interface. 3. Enter a contact name. 4.

  • Page 32: Settings

    DM588 Digital Mobile Radio 5.5 Settings 5.5.1 Selecting a Language To select a language for the radio, perform the followings. 1. In the home interface, press the Menu key. 2. Select “Setting” by pressing the Up and Down keys. 3. Press the Menu/OK key. 4.
  • Page 33 User Manual Note: “All prompt tones off”: All prompt tunes are off.  “All prompt tones on”: All prompt tunes are on.  “Prompt tone for outgoing calls”: Turn on/off the prompt tone for outgoing calls.  “Prompt tone for individual calls”: Turn on/off the prompt tone for received individual calls. ...
  • Page 34 DM588 Digital Mobile Radio This function enables you to filter out unwanted calls under weak signals. Please perform the followings. 1. In the home interface, press the Menu key. 2. Select “Setting” by pressing the Up and Down keys. 3. Press the Menu/OK key. 4.

  • Page 35: Application

    User Manual To view the ID, SN, firmware version and hardware version of the radio, perform the followings. 1. In the home interface, press the Menu key. 2. Select “Setting” by pressing the Up and Down keys. 3. Press the Menu/OK key. 4.
  • Page 36 DM588 Digital Mobile Radio 9. Press the Menu/OK key. To view GPS information, take the 10~11 steps below after the step 5.  10. Select “GPS Information” by pressing the Up and Down keys. 11. Press the Menu/OK key. You can view such information as the date, time, longitude, latitude and satellite. 5.6.2 Setting Time and Date To set the time, perform the followings.

  • Page 37: Detecting A Radio

    User Manual 5.7 Detecting a Radio To detect whether another radio (A) is powered on or operating in the channel the radio (B) is in, radio detection can be initiated from B without interfering A. Perform the followings. 1. In the home interface, press the Menu key. 2.

  • Page 38: Monitoring

    DM588 Digital Mobile Radio 1. If call alert decoding call has been enabled on the radio, the radio automatically response to a call alert after receiving it. 2. “Call alert…” and the caller’s alias/ID are displayed on the LCD screen. 3.

  • Page 39: Lone Worker

    User Manual This function enables you to listen remotely to the voice and background tone of another radio. This is achieved through turning on the microphone on the target radio without voice prompt or visible indication. To use this function, the radio must be authorized beforehand. To initiate remote monitoring, perform the followings.

  • Page 40: Encryption (Digital Channel Only)

    DM588 Digital Mobile Radio This function enables the radio to send an emergency alarm if no operation (e.g. a keystroke) is performed on the radio within a preset response duration. This function needs to be set using the programming software. This function works as below.

  • Page 41: Trouble Shooting

    User Manual This function achieves voice encryption to ensure secret communication. Scrambled signals can be received and sent only after enabling this function. This function needs to be set using the programming software. To transmit signals correctly between a sending radio and a receiving radio via a channel with scrambling enabled, this function needs to be enabled on the both radios.
  • Page 42 DM588 Digital Mobile Radio Problem Reason Solution Too far from the members. Decrease the distance. The radio is interfered by Change to frequency point Unwanted voice user same frequency or noise in Set signaling on all the radios in the group to analogue channel Signaling is not set.
