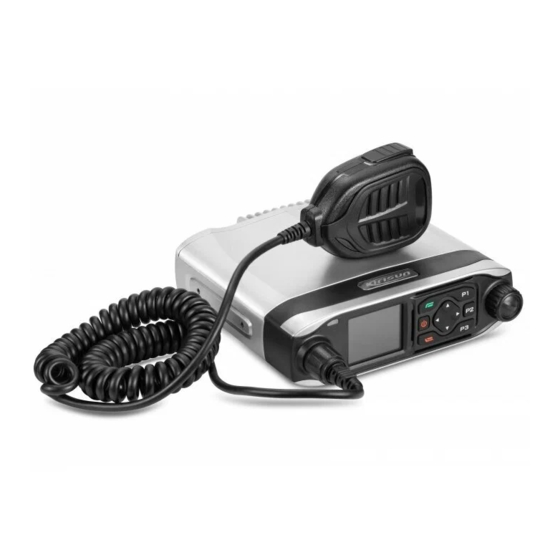

Digital mobile radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM588-02 and is the answer not in the manual?

Questions and answers

Related Manuals for Kirisun DM588-02

Summary of Contents for Kirisun DM588-02

  • Page 2 Thank you for choosing Kirisun mobile radio. We believe that the product will bring much convenience to your work and life. Kirisun mobile radios adopt advanced technology and fine technique. We hope that you will be satisfied with the quality and functions of the product.
  • Page 3 ◆ The intellectual property of all parts of the product, including accessories, is owned by Kirisun and its authorized subjects. Without permission of Kirisun and such subjects, no copy, extraction or translation of such parts is allowed.
  • Page 4 DM588 Digital Mobile Radio User Manual Safety Precaution According to governmental decrees, it is prohibited to operate radio transmitters without permission within the area of its jurisdiction. Violation to such stipulations may result in penalty or be arrest. Maintenance on the product can be performed only by professional technicians.
  • Page 5 DM588 Digital Mobile Radio User Manual Battery To prevent fire, personal injury and damage to the radio, please abide by the followings. ◆ It is suggested to have the radio to transmit continuously for 1 minute and receive continuously for 4 minutes at most at a time. Transmissions for a long time or continuous operation under high power will result in overheat at the back of the radio.

  • Page 6: Table Of Contents

    DM588 Digital Mobile Radio User Manual Contents 1. UNPACKING ........................1 2. OVERVIEW ........................3 2.1 A ..........................3 PPEARANCE 2.2 P ........................6 ROGRAMMING 2.3 I ............................9 CONS 2.4 LED I ......................... 12 NDICATOR 3. INSTALLATION ......................12 4.
  • Page 7 DM588 Digital Mobile Radio User Manual 5.1 S ........................20 HORT ESSAGE 5.2 S ......................... 23 CANNING HANNELS 5.3 E ........................28 MERGENCY LARM 5.4 C ) ................... 31 ECORDS IGITAL 5.5 S ..........................34 ETTINGS 5.6 A ..........................39 PPLICATION 5.7 D ........................

  • Page 8: Unpacking

    DM588 Digital Mobile Radio User Manual 1. Unpacking Open the packing box carefully and find the parts as listed below. If any item is missing or damaged, please contact the dealer.
  • Page 9 DM588 Digital Mobile Radio User Manual Please find the following items in the package. Item Mobile Hand microphone Bracket Microphone stand, with 3 M2.6*10 self-tapping screws Fuse Power cord ST5*16 self-tapping screw Wing screw (flat washer and spring washer included) Certificate of Approval...

  • Page 10: Overview

    DM588 Digital Mobile Radio User Manual User Manual or Quick Installation Guide 2. Overview 2.1 Appearance...
  • Page 11 DM588 Digital Mobile Radio User Manual Item Item...
  • Page 12 DM588 Digital Mobile Radio User Manual LED Indicator Speaker Menu/OK Key Up/Down/Left/Right Keys Hand P1~P3 (Programming Microphone/Programming Keys) Down Key Interface Emergency Key LCD Screen On/Off Key Return Key Volume/Channel Knob RF Antenna Interface External Speaker 3G/4G Antenna Interface Interface (Optional) GPS Antenna Interface Bluetooth Antenna Interface...

  • Page 13: Programming Keys

    DM588 Digital Mobile Radio User Manual 2.2 Programming Keys To cater to users’ habits of operating the radio, programmable keys (P1, P2 and P3) are provided, which can be set as shortcut keys through programming by the dealer. Programmable Description Function No function.
  • Page 14 DM588 Digital Mobile Radio User Manual Enable/disable scanning. It is used to monitor the Scan communication activities in other channels. If you don’t need a channel found through scanning, Delete Channel of Spurious Emission press it to delete the channel from the scan list. LCD Backlight Press it to enter the Screen Backlight interface to Type...
  • Page 15 DM588 Digital Mobile Radio User Manual (1~6) For a channel allowing scrambling*/encryption, press the key to enable/disable encryption. To ensure Scramble*/Encrypt communication privacy, voice and short messages can be encrypted through scrambling/encryption. Contact Press it to go to the Contact interface. Short Message Press it to go to the Short Message interface.

  • Page 16: Icons

    DM588 Digital Mobile Radio User Manual functions. You can have keys programmed by your dealer. Press: Press down a key and release quickly. Press and hold: Press down a key and hold for the duration programmed before release. (The duration can be set in programming settings.) A function marked with * is to be developed.
  • Page 17 DM588 Digital Mobile Radio User Manual Encryption or Analogue scrambling or digital encryption is Scrambling enabled. The speaker is mute when the volume is Mute adjusted to 0. High TX power for the current channel. Transmitting Power Low TX power for the current channel. If talk-around mode is disabled, i.e.
  • Page 18 DM588 Digital Mobile Radio User Manual Scanning stops in the prior channel 1 or 2. Scanning stops in a conventional channel. Accessory The USB cable is connected. State Lone Worker The function is enabled. A call is being made. Call A call is being received.

  • Page 19: Led Indicator

    DM588 Digital Mobile Radio User Manual 2.4 LED Indicator State Description Red light on Transmitting signals Green light on Receiving signals A call is received, and the radio is in the duration before Orange light on automatic reset (under analogue mode) * or in the duration before call hangup (under analogue mode).
  • Page 20 DM588 Digital Mobile Radio User Manual Attentions  The radio should be installed in a position where it can be used conveniently and personal injury can be avoided while driving a vehicle in poor road condition.  While drilling holes, protect the internal wires of a vehicle or of other devices from being damaged.
  • Page 21 DM588 Digital Mobile Radio User Manual 5. Connect the antenna to the radio. 6. Use the M2.6*10 self-tapping screws to fix the microphone stand onto a position where operation is convenient. 7. Plug the hand microphone (with the direction sign on the top) into the corresponding interface of the radio, and rotate clockwise the cover lock on the plug.

  • Page 22: Basic Functions

    DM588 Digital Mobile Radio User Manual 4. Basic Functions 4.1 Power On/Off Power On  Press the Power On/Off key and hold until the startup interface is displayed on the LCD screen, and then release the key. Backlight is on automatically, and voice prompt “di di”...

  • Page 23: Selecting A Channel

    DM588 Digital Mobile Radio User Manual To switch to a zone, perform the followings. 1. In the home interface, press the Menu key. 2. Select “Zone” by pressing the Up and Down keys. 3. Press the Menu/OK key. 4. Select a zone by pressing the Up and Down keys. 5.

  • Page 24: Regulating Volume

    DM588 Digital Mobile Radio User Manual analogue mode, some functions are disabled, for example, short messages, and corresponding menu items are hidden. 4.4 Regulating Volume Turn the Volume/Channel knob clockwise to increase the volume or counterclockwise to decrease it. 4.5 Volume/Channel Knob By default, the Volume/Channel knob achieves volume adjustment, and you may press it to switch from volume mode to channel mode.
  • Page 25 DM588 Digital Mobile Radio User Manual If a default contact for each channel is preset, press the PTT key to call the contact. Select and Call a Contact  1. In the home interface, press the Menu key. 2. Select “Contact” by pressing the Up and Down keys. 3.

  • Page 26: Receiving/Replying To A Call

    DM588 Digital Mobile Radio User Manual 4. Select “Manual Dialup” by pressing the Up and Down keys. 5. Enter the ID of a contact. 6. Press the PTT key. Call a Contact by Pressing a One-Key Call Key  You can call a contact of individual call, or contacts of group call by pressing a programmed one-key call key.

  • Page 27: Advanced Functions

    DM588 Digital Mobile Radio User Manual member of the group. The setting can be done by your dealer. 5. Advanced Functions 5.1 Short Message You can receive and send short messages, each containing have up to 300 characters. 5.1.1 Editing and Sending a Short Message To edit and send a short message, perform the followings.
  • Page 28 DM588 Digital Mobile Radio User Manual Note: While entering content, you can: Move the cursor by rotating the Volume/Channel knob.  Switch to another input method by pressing #, or switch between upper case  and lower case. Under non-digit input mode, enter punctuations by pressing “1”. ...
  • Page 29 DM588 Digital Mobile Radio User Manual You can set up to 10 quick messages, and have the setting done by your dealer. Before sending a quick message, you can edit it. To send a quick message, perform the followings. 1. In the home interface, press the Menu key. 2.

  • Page 30: Scanning Channels

    DM588 Digital Mobile Radio User Manual When a short message is received, a message will be prompted on the LCD screen, and the icon of unread message will be displayed in the status bar. To read the message, go to the inbox by pressing the Menu/OK key and selecting Short Message >...
  • Page 31 DM588 Digital Mobile Radio User Manual 3. Press the Menu/OK key. 4. Select “View Scan List”, and view the channels in the list ( prior channel 1, prior channel 2, normal channel). Note: In a scan list, you can set prior channel 1 and prior channel 2, and they are not displayed if not set.
  • Page 32 DM588 Digital Mobile Radio User Manual 3. Press the Menu/OK key. 4. Select “Edit Scan List” and then “Delete”. 5. Select a channel, and delete it from the scan list. Setting Prior Channel 1. In the home interface, press the Menu key. 2.
  • Page 33 DM588 Digital Mobile Radio User Manual 2. Select “Scan” by pressing the Up and Down keys. 3. Press the Menu/OK key. 4. Select “Scan On/Off”. 5. Press the Menu/OK key. 6. Select “Enable Scan” or “Disable Scan” by pressing the Up and Down keys.
  • Page 34 DM588 Digital Mobile Radio User Manual 1. Keep the speaker close to the mouth. If indication of channel idleness has been enabled on the radio, you will hear a short prompt tone (to indicate channel idleness) when the PTT key is released on the target radio. Now you may reply to the radio.

  • Page 35: Emergency Alarm

    DM588 Digital Mobile Radio User Manual 5.3 Emergency Alarm Under emergency, you can send an emergency alarm to another user or the control center by pressing the Emergency Alarm key. Emergency alarm has the highest priority, so you can send an emergency alarm at any time, no matter the radio is transmitting or receiving traffic.
  • Page 36 DM588 Digital Mobile Radio User Manual In any of the above modes, there are four alarm types. You can have one type set by your dealer. Siren Only  During an emergency alarm, siren is given off on the radio, but the control center does not receive an alarm signal.
  • Page 37 DM588 Digital Mobile Radio User Manual To send an emergency alarm, press the Emergency Alarm key. The emergency alarm icon will be displayed in the status bar, and the alias or ID of an emergency group call, emergency alarm icon and outgoing message icon will be displayed on the LCD screen.

  • Page 38: Call Records (Digital Mode Only)

    DM588 Digital Mobile Radio User Manual To receive an emergency alarm, you need to set the radio as a member of the group using the programming software. When an emergency alarm is received, the emergency alarm icon will be displayed in the status bar, and the sender’s alias or ID, emergency alarm icon and emergency alarm type icon on the LCD screen.
  • Page 39 DM588 Digital Mobile Radio User Manual This function enables you to view and manage the records of recent outgoing calls, received calls and missed calls. Individual calls but group calls are recorded. This function works only under digital mode. 5.4.1 Viewing Recent Calls To view the records of recent calls, perform the followings.
  • Page 40 DM588 Digital Mobile Radio User Manual 5.4.2 Storing Call Record to Contact List To store a call record to the contact list, perform the followings. 1. Select a record from the list of missed calls, outgoing calls or received calls. 2.

  • Page 41: Settings

    DM588 Digital Mobile Radio User Manual Deleting All Call Records 1. In the home interface, press the Menu key. 2. Select “Call Records” by pressing the Up and Down keys. 3. Press the Menu/OK key. 4. Select “Missed Calls”, “Outgoing Calls” or “Received Calls” by pressing the Up and Down keys.
  • Page 42 DM588 Digital Mobile Radio User Manual 2. Select “Setting” by pressing the Up and Down keys. 3. Press the Menu/OK key. 4. Press “Language” by pressing the Up and Down key. 5. Press the Menu/OK key. 6. Select a language, and press the Menu/OK key. 5.5.2 Setting Prompt Tones To turn on/off prompt tones or adjust volume, perform the followings.
  • Page 43 DM588 Digital Mobile Radio User Manual 7. Press the Menu/OK key. 8. Select on/off. Note: “All prompt tones off”: All prompt tunes are off.  “All prompt tones on”: All prompt tunes are on.  “Prompt tone for outgoing calls”: Turn on/off the prompt tone for outgoing ...
  • Page 44 DM588 Digital Mobile Radio User Manual 5.5.3 Setting Power Level To set high/low power for each channel, perform the followings. 1. In the home interface, press the Menu key. 2. Select “Setting” by pressing the Up and Down keys. 3. Press the Menu/OK key. 4.
  • Page 45 DM588 Digital Mobile Radio User Manual 3. Press the Menu/OK key. 4. Select “Squelch Level” by pressing the Up and Down keys. 5. Press the Menu/OK key. 6. Select a squelch level by pressing the Up and Down keys. 7. Press the Menu/OK key. 5.5.5 Enabling/Disabling LED Indicator To enable/disable LED indicator, perform the followings.

  • Page 46: Application

    DM588 Digital Mobile Radio User Manual 7. Press the Menu/OK key. 5.5.6 Device Information To view the ID, SN, firmware version and hardware version of the radio, perform the followings. 1. In the home interface, press the Menu key. 2. Select “Setting” by pressing the Up and Down keys. 3.
  • Page 47 DM588 Digital Mobile Radio User Manual information to the location application server, you need to enable the GPS function. This is set using the programming software. To enable/disable the GPS function or view GPS information, perform the followings. 1. In the home interface, press the Menu key. 2.
  • Page 48 DM588 Digital Mobile Radio User Manual 10. Select “GPS Information” by pressing the Up and Down keys. 11. Press the Menu/OK key. You can view such information as the date, time, longitude, latitude and satellite. 5.6.2 Setting Time and Date To set the time, perform the followings.

  • Page 49: Detecting A Radio

    DM588 Digital Mobile Radio User Manual 9. Press the Menu/OK key to return to the Time menu. 10. Select “Date Display”, and enable/disable date display on the lower left of the standby interface. 11. Press the Menu/OK key to return to the Time menu. 12.

  • Page 50: Call Alert

    DM588 Digital Mobile Radio User Manual 3. Press the Menu/OK key. 4. Select “Contact List” by pressing the Up and Down keys. 5. Press the Menu/OK key. 6. Select a contact of individual calls by pressing the Up and Down keys. 7.
  • Page 51 DM588 Digital Mobile Radio User Manual 5.8.1 Receiving and Responding to Call Alert 1. If call alert decoding call has been enabled on the radio, the radio automatically response to a call alert after receiving it. 2. “Call alert…” and the caller’s alias/ID are displayed on the LCD screen. 3.

  • Page 52: Monitoring

    DM588 Digital Mobile Radio User Manual 7. Select “Call Alert”. 8. The contact’s alias or ID, and the indication of sending call alert are displayed on the LCD screen. The red LED indicator is on. The radio is waiting for response from the target radio.
  • Page 53 DM588 Digital Mobile Radio User Manual 3. Press the Menu/OK key. 4. Select “Remote Monitoring”. 5. Select a contact. 6. The contact’s alias or ID, and indication of remote monitoring initiation are displayed on the LCD screen. The red LED indicator light is on. The radio is waiting for response from the target radio.

  • Page 54: Stuning/Activating A Radio

    DM588 Digital Mobile Radio User Manual 5.10 Stuning/Activating a Radio This function allows you to stun or activate another radio through air signaling. The stunned radio can neither transmit nor receive traffic, but can only be activated through activating signaling. This feature is used to prevent use of the radio without permission or when the radio is lost.

  • Page 55: Lone Worker

    DM588 Digital Mobile Radio User Manual Note: If you press the On/Off key while the radio is sending signaling, the radio will stop sending signaling and exit. If the maximum times of retry is reached but no response is received, the radio will automatically stop sending signaling and exit.

  • Page 56: Encryption (Digital Channel Only)

    DM588 Digital Mobile Radio User Manual 1. If no operation is performed on the radio when a preset response duration is nearly up, the radio will give a preliminary alarm. 2. When a preliminary alarm is given, you can press any key to cancel it. 3.

  • Page 57: Scrambling* (Analogue Channel Only)

    DM588 Digital Mobile Radio User Manual or data from each other. The radio cannot receive an encrypted call correctly if a different encryption type or encryption key is used on the sending radio. 5.13 Scrambling* (Analogue Channel Only) This function achieves voice encryption to ensure secret communication. Scrambled signals can be received and sent only after enabling this function.
  • Page 58 DM588 Digital Mobile Radio User Manual Problem Reason Solution Volume is low. Turn up volume. The antenna is loose or Power off the radio and install the Low, installed improperly. antenna again. interrupted or no volume Clean the outside of the radio. If the while receiving problem remains, contact your dealer signals...
  • Page 59 DM588 Digital Mobile Radio User Manual Problem Reason Solution The radio is interfered by Change to frequency point Unwanted user same frequency voice or noise in analogue Set signaling on all the radios in the channel Signaling is not set. group to avoid co-channel interference.
  • Page 60 DM588 Digital Mobile Radio User Manual Problem Reason Solution Screen not The screen is abnormal. Power off the radio and on again. working GPS signals cannot be positioning Move to an open and flat area. received at the position. failed RF EXPOSURE INFORMATION “Occupational/Controlled Use Only”...
  • Page 61 DM588 Digital Mobile Radio User Manual the manufacturer or an antenna specifically authorized by the manufacturer for use with this radio, and the antenna gain shall not exceed 3.5dBi by the manufacturer declared. – DO NOT transmit for more than 50% of total radio use time, more than 50% of the time can cause RF exposure compliance requirements to be exceeded.
  • Page 62 DM588 Digital Mobile Radio User Manual – For a Class B digital device or peripheral, the instructions furnished to the user shall include the following or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 63 Warning！ changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
