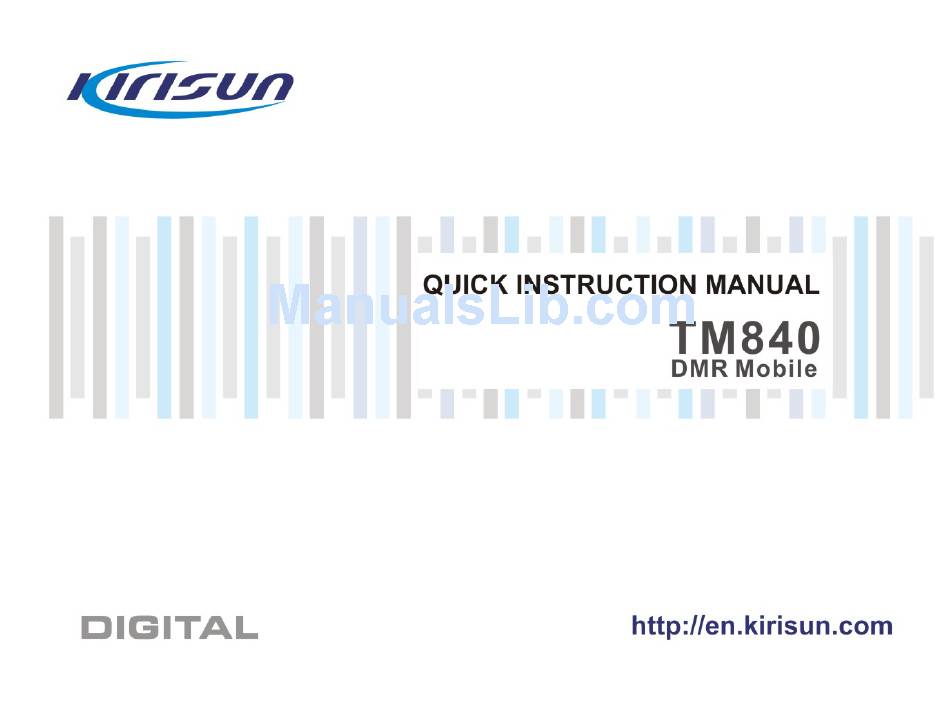

  • Page 1 TM840 DMR Mobile Quick User Guide...
  • Page 3 Kirisun Communications Co., Ltd. We believe KIRISUN DMR Mobile, which always incorporates the latest technology, can bring great convenience to your life and work. We also believe that the quality and function of KIRISUN DMR Mobile can meet your demands for reliable communication.
  • Page 4 TM840 DMR Mobile Quick User Guide...

  • Page 5: Safety Information

    TM840 DMR Mobile Quick User Guide 1 Safety Information The government bans on operation the radio transmitter without permission in the jurisdiction scope. Illegal operation will punished with fine or arrest. This product can only be maintained by the professional technicians.

  • Page 6: First Use

    TM840 DMR Mobile Quick User Guide 2 First Use 2.1 Unpacking and Checking Please unpack carefully and check all the items listed in the following table before discarding the packing material. If any damage or loss occurs during shipment, please contact your dealer.
  • Page 7 TM840 DMR Mobile Quick User Guide Plastic handle screw, contain matching flat washer and spring washer ST4.8*20 Self-tapping screws Certificate of Approval Quick User Guide...
  • Page 8 TM840 DMR Mobile Quick User Guide...
  • Page 9 TM840 DMR Mobile Quick User Guide 2.2 Preparing Your Mobile for Use 2.2.1 Installing your Mobile 1） Using six ST4.8*20 self-tapping self-drilling screws to fasten the bracket at the suitable place inside the vehicle. 2） Using two Plastic handle screw to fasten the mobile on the bracket.
  • Page 10 TM840 DMR Mobile Quick User Guide 5）Connect the hand Microphones Install hand microphone Put the direction indicative plane of the hand microphone plug on the top and insert it into the microphone interface of the mobile. Then clockwise rotate the self-lock cover on the microphone plug until the self-lock cover against the card slot.

  • Page 11: Product Overview

    TM840 DMR Mobile Quick User Guide 3 Product Overview 3.1 Control Parts Introduction...
  • Page 12 TM840 DMR Mobile Quick User Guide Part Name Part Name Volume Control Knob PTT Key(Hand Microphone) Microphone/Programming Cable Interface Emergency Button The Menu/Ok Button Hook off Key Up Key Dial Key Down Key P1~P4 (Programmable Keys) Return Button LCD Display...
  • Page 13 TM840 DMR Mobile Quick User Guide 3.2 Programmable Buttons For the convenience of users to operate the radio according to their own habits, the following buttons can be programmed as short cuts to radio functions by dealer. P1 to P4 can be programmed to “long press” and short press.
  • Page 14 TM840 DMR Mobile Quick User Guide when receiving carrier. Squelch Off To always unmute the speaker no matter whether carrier is present or not. (Analog mode). Squelch Level Adjust the signal stress required for the radio to unmute. Scan Toggles scan on or off. To receive signal from other channels LCD Brightness Adjust the brightness level by entering to "LCD Brightness".
  • Page 15 TM840 DMR Mobile Quick User Guide Call log Selects the call log menu. Only valid in digital mode. Monitor Channel On/off monitor channel. Exit monitor channel function when pressing PTT. Permanent Monitor On/off permanent monitor channel. Don’t exit monitor channel Channel function when pressing PTT.

  • Page 16: Basic Operation

    TM840 DMR Mobile Quick User Guide external alarm device (light or speaker) connected to GPIO to alarm. 4 Basic Operation 4.1 Powering On/Off the Radio In the power off status, long press the Radio On-Off button to power on the mobile. The power on screen will be shown, backlight will light and the power on alert will be heard.
  • Page 17 TM840 DMR Mobile Quick User Guide 1）Press key to enter the main menu in home screen. 2) Access to zone item by , then press to select. 3) All the zones are listed here. The current zone is indicated by...

  • Page 18: Receiving And Answering The Call

    TM840 DMR Mobile Quick User Guide When a call is initiated, the red LED lights on. The call type (private call icon , group call icon alias or ID and outgoing call icon is displayed on the LCD 4.5.1 Initiate a Call to the Default Contact In the home screen, hold down the PTT key to initiate a call to the default contact which has be set for the current channel in CPS software.
  • Page 19 TM840 DMR Mobile Quick User Guide When a call is received in the standby mode: Green LED indicator lights on. The call type (private call icon , group call icon ), alias or ID and incoming call icon is displayed on the LCD.

  • Page 20: Menu Bar

    TM840 DMR Mobile Quick User Guide 5 Menu Bar...

  • Page 21: Status Indicator

    TM840 DMR Mobile Quick User Guide 6 Status Indicator 6.1 LCD Icon Icon Name Icon Radio Status No signal Signal Strength The number of bars indicates the received signal strength. Indication Four bars are the strongest. There is new message/unread message.
  • Page 22 TM840 DMR Mobile Quick User Guide Monitoring Talk-around mode is active for repeater mode; or the current Talk Around channel is direct mode. Emergency Alarm Emergency alarm mode GPS feature is available and the radio is receiving valid GPS data.
  • Page 23 TM840 DMR Mobile Quick User Guide 6.2 LED Indicator LED Indicator Radio Work Status Red LED lights on Radio is transmitting. Radio is receiving (voice, short message, or data) or there is an Green LED lights on activity on the channel.

  • Page 24: Maintenance And Cleaning

    TM840 DMR Mobile Quick User Guide 7 Maintenance and Cleaning In order to derive optimum performance and long service life from this product, please read the following maintenance and cleaning information carefully for better daily care and clean. 7.1 Maintenance Please do not puncture or scratch the mobile with hard objects.
  • Page 25 TM840 DMR Mobile Quick User Guide alcohol, spray or oil preparations and so on. After cleaning, must ensure that the vehicle terminal completely dry, otherwise don’t use it. Note: Please turn off the power supply of the vehicle terminal before your cleaning.
  • Page 26 TM840 DMR Mobile Quick User Guide...
