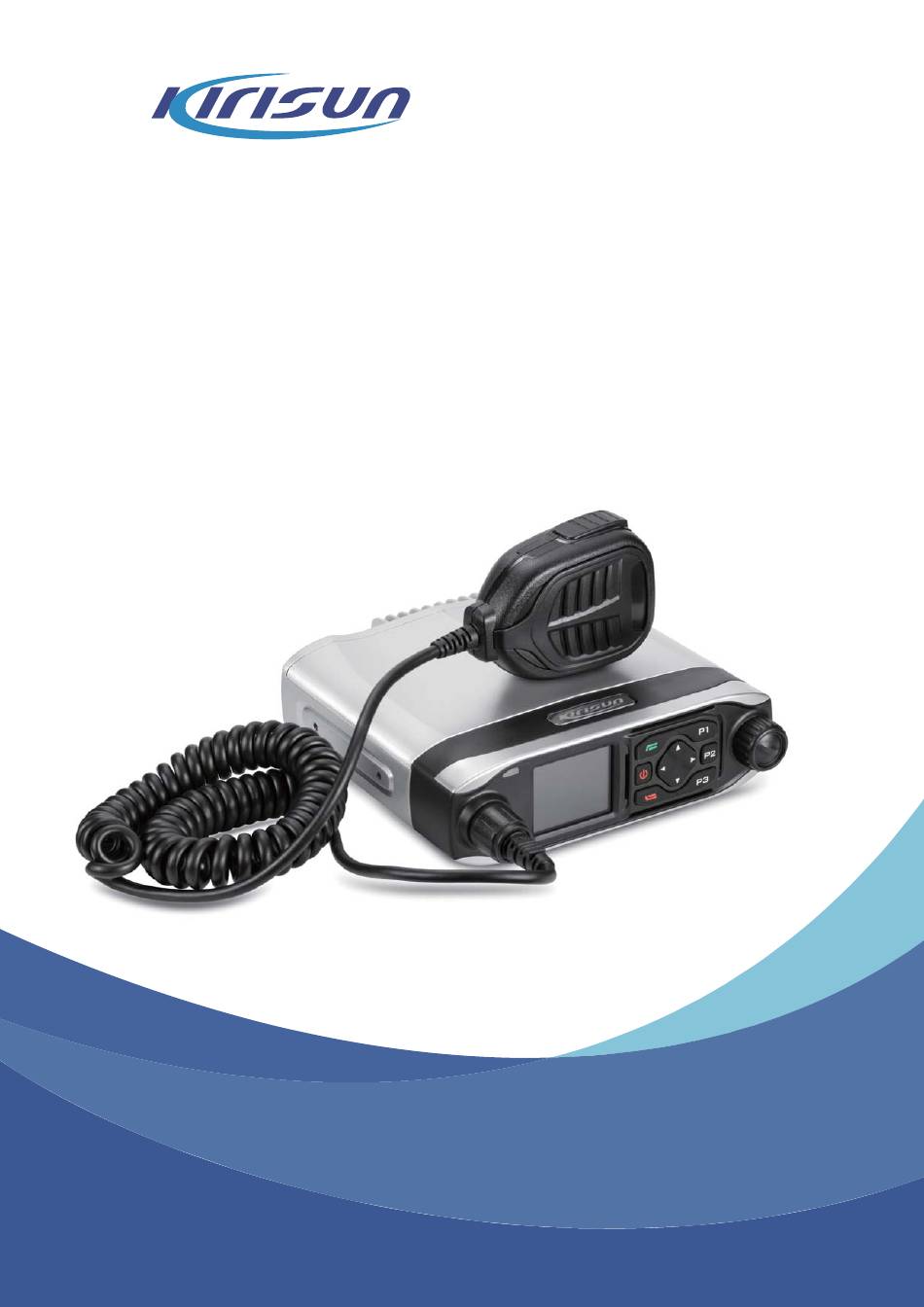

Professional wireless communication system solution supplier
DM588
SERVICE MANUAL
Version:A
Kirisun Communications Co.,Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM588 and is the answer not in the manual?

Questions and answers

Related Manuals for Kirisun DM588

Summary of Contents for Kirisun DM588

  • Page 1 Professional wireless communication system solution supplier DM588 SERVICE MANUAL Version:A Kirisun Communications Co.,Ltd.

  • Page 2: Revision History

    DM588 Service Manual Revision History Revision No. Date of issue Revised by Description Notes 2023/9/25 Pang Chunming First release.

  • Page 3: Table Of Contents

    Appendix 1 Abbreviations ........................ 40 Appendix 2 Material List (Electronic Part) ..................41 Table 1 Material List of Main Board DM588-01 (136MHz-174MHz) ............ 41 Table 2 Material List of Main Board DM588-02 (400MHz-470MHz) ............ 61 Table 3 Material List of DM588 LCD Board ..................82 Table 4 Material List of DM588 Key Board ..................
  • Page 4 DM588 Service Manual Figure 9 Top-Layer Layout Drawing of Key Board ................125 Figure 10 Bottom-Layer Layout Drawing of Key Board ..............126...

  • Page 5: Overview

    1. Overview 1.1.Range of Application This manual is intended for the maintenance of the DM588 digital mobile radio and for use by the engineers and professional technicians, who have received training from Kirisun. The information in this manual might change with technology improvement. To obtain the latest information, please contact Kirisun or your local dealer.

  • Page 6: External View And Keys

    DM588 Service Manual 2. External View and Keys 2.1.External View Part Name Part Name LED Indicator Speaker Menu/OK Key Up/Down/Left/Right Key Hand Micro (and Programming Cable) Programmable Keys (P1~P3) Interface Emergency Alarm Key LCD Screen On/Off Key Back Key Volume/Channel Knob...

  • Page 7: Circuit Description

    DM588 Service Manual Orange Light Flashing In call hold state under digital mode, and exit when hold time out Red Light Flashing Fast CPS reading radio parameters Green Light Flashing Fast CPS programming radio parameters 3. Circuit Description 3.1.Schematic Circuit Diagram of Main Board...

  • Page 8: Rx Circuit

    DM588 Service Manual The TX circuit includes an RF power amplification circuit, a low pass filter circuit and an automatic power control circuit.  RF Power Amplification Circuit Transmitting signals TX VCO are buffered and amplified by the Q7, Q8, Q9 and then the pre-drive amplifier Q18 to generate strong enough driving power signals, and then amplified by the last-stage amplifier Q29.

  • Page 9: Frequency Synthesis Circuit

    DM588 Service Manual local oscillator signal provided by a VCO to achieve frequency conversion, to get the first IF signal.  MF Circuit and MF Signal Processing The first MF signals are filtered by the crystal filter Z2, amplified by the amplifiers Q13 and Q14, and then mixed again and processed by the MF decoding chip AK2365 for second mix up and ADC sampling.

  • Page 10: Power Supply Circuit

    DM588 Service Manual To obtain better modulation accuracy and 4FSK bit error rate when transmitting, two-point modulation is employed. MOD1 and MOD2 send the modulated signal to PLL reference crystal oscillator and VCO modulation end respectively, and to modulate Tx benchmark crystal oscillator and VCO respectively.
  • Page 11 DM588 Service Manual 4G: C8=L ,U6=H AUDIOSELECT0 BT: C8=L ,U6=L Rx analog swtich selection: RXAUDIOSELECT1 Enable speaker output: G18=0，A18=0 Disable speaker output: G18=0，A18=0 BT output: G18=0, A18=0 RXAUDIOSELECT0 4G Tx: G18=0, A18=0 MUTE Audio power amplification: Enable: MUTE_H，PASELECT_L PASELECT Disable: MUTE_H，PASELECT_H...
  • Page 12 DM588 Service Manual Off: Low level GPS power supply control. GPSENABLE On: High level; Off: Low level I2C_SCL ADC chip\ Clock IC\ Man Down IC control I2C_DATA Tx VCO power supply control. DUPLEXTXVCOSE On: High level; Off: Low level ADC_RDY ADC chip SGM58031XMS10G/TR Power hold pin.

  • Page 13: Control Panel

    DM588 Service Manual SD_D1 SD_D2 SD_D3 DS18B20 Temperature sensor communication AFADC MODE2 Output audio to VCO for modulation MODE1 Output audio to crystal osciliator for modulation USB_DP USB_DM Key LED power supply control. KEYPAD_BL On: High levle Off: Low level...

  • Page 14: Power Supply

    DM588 Service Manual Mic Keypad BL-MIC Digital Output (VOH>2.8V，VOL<0.4V) Backlight Control USB+ Power Output (7~12V) Ground Power Ground Power Supply The main board provides two routes of power supply for the control panel: one is DC3.3V for the key scan module and LCD module, and the other is DC13.2V for the hand microphone, LED screen and backlight lamp.

  • Page 15: Upgrading Software

    DM588 Service Manual 3.10.Upgrading Software The software of the radio might be up upgraded from time to time with function development. To upgrade the software, take the following steps. Step 1.Power off the radio. Connect the radio to the PC using the programming cable.
  • Page 16 DM588 Service Manual Step 5.Click “Setting”, select the port of the programming cable and the baud rate 921600. Step 6.Click “Start downloading”, start upgrade and the message “Waiting” will be displayed. Step 7.Hold down the On/Off and P1 keys and rotate the Power/Volume knob to power on the radio.

  • Page 17: Assembly And Disassembly

    DM588 Service Manual Step 8.After upgrading is finished, “Passed” will be displayed. Click “Stop downloading”. 1. Power off the radio. Connect the radio to the PC using the programming cable. 2. Power on the radio by holding down the On/Off and P1 keys and the Volume/Channel knob simultaneously, the radio will enter upgrade mode, red light will flash, and the startup logo will be displayed on the screen.

  • Page 18: Separating Rf Unit And Control Panel

    DM588 Service Manual 4.1.Separating RF Unit and Control Panel To separate the RF part and the control panel, take the following steps. 1. Screw down the eight M3*16 torx round-head machine screws on the bottom aluminium-alloy housing fastening the top aluminium-alloy housing, and remove the top aluminium-alloy housing together with the waterproofing ring of the RF unit.

  • Page 19: Disassembling Front Part

    DM588 Service Manual 2. Lift the front part of the main board, and take out the board forwards up. Note: To ensure that the tube power amplifier is at the accurate position while assembling or disassembling the board, install the screws fastening the board and the amplifier before welding the amplifier.
  • Page 20 DM588 Service Manual 2. Screw down the five ST2*5 torx machine screws fastening the front and rear housings. 3. Unplug the LCD screen cable. 4. Take out the PCB from the front housing.

  • Page 21: Explosion Diagram

    7MBR-4304-05A-W0A Rubber plug for M50_SIM card 147K01000080 DM588 plastic front housing 7MBR-4304-03A-WC M50 light pipe 121M01000055 LCD screen Waterproofing cover ring of DM588 hand 7MBR-4291-01A-W3 microphone connector 7MBS-4304-02A-W M50_LCD screen holder 147K01000026 KME231 aerial-plug socket 62DI000390 DM588 LCD board nesting...

  • Page 22: Debugging

    DM588 Service Manual Material Code Specifications 7MBS-4304-03B-W M50 speaker clamping ring 7MBR-4291-02A-W3 DM588 waterproof ring of panel 4SS7-3520-016-700 Speaker 7MBR-4304-04A-W0 M50 speaker seal ring 7SMF-025050M-MHYB-B R M2.5*5 torx mushroom-head machine screw 7SMF-025050M-MHYB-B R M2.5*5 torx mushroom-head machine screw 7NRC-040050204-LJ M2.0*5+4 hexagon copper post...

  • Page 23: Debugging

    DM588 Service Manual 5.2.Debugging Tx Part Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method Program the radio, download audio At low Detect VCO voltage in source, switch between low and high frequency: >=0.5V; 1. VCO test Multimeter mode.
  • Page 24 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method 1) Run the debugging software on the PC, and set the tester to adjustment mode; 2) Double click [High Power], and click [Low Frequency];...
  • Page 25 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method 1) Run the debugging software on the PC, and set the tester to adjustment mode; 2) Double click [Analogue MOD1], Connect and click [Low Frequency];...
  • Page 26 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method Digital 1) Run the debugging software on the 4FSK ERROR<5% MOD1 PC, and set the tester to adjustment 1944±100Hz mode. 2) Go to the DMR test interface. Set...
  • Page 27 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method After debugging the TX modulation sensitivity, 1) Set the tester to TX state, 300~3kHz to the filter, and audio output to 1kHz@modulation Connect sensitivity;...
  • Page 28 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method After debugging the TX modulation sensitivity, 1) Set the tester to TX state, 300~3kHz to the filter, and audio output to Connect 1kHz@modulation antenna 1) W: >40dB (wide...
  • Page 29 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method After debugging the TX modulation sensitivity, 1) Set the tester to Adjacent Ch Power Test state, Ch Offset to W: 25kHz (wide band)/N: 12.5kHz (narrow band),...
  • Page 30 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method (CE standard compliant) 1) Connect the test interface of the FSU Connect spectrum analyzer to a antenna 30dB attenuator interface of the (power: > 10W);...
  • Page 31 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method 1) Power off the radio. Adjust the output voltage of the DC power supply to the standard test voltage of the radio, and...
  • Page 32 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method 1) Run the debugging software on Connect the PC, and set the tester to 1) Set the tester to RX antenna adjustment mode;...
  • Page 33 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method 1) Run the debugging software on 1) Set the tester to RX the PC, and set the tester to state; adjustment mode; 2) Set RF Gen Freq = 2) Disable Squelch Level 1 for 4.
  • Page 34 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method 1) Run the debugging software on 1) Set the tester to RX the PC, and set the tester to state; adjustment mode; 2) Set RF Gen Freq = 2) Disable Squelch Level 9 for 6.
  • Page 35 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method 1) Run the debugging software on 1) Set the tester to RX the PC, and set the tester to state; adjustment mode; 2) Set RF Gen Freq = 2) Disable Squelch Level 1 for 8.
  • Page 36 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method 1) Run the debugging software on 1) Set the tester to RX the PC, and set the tester to state; adjustment mode; 2) Set RF Gen Freq = 2) Disable Squelch Level 9 for 10.
  • Page 37 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method 1) Run the debugging software on 1) Set the tester to RX the PC, and set the tester to state; adjustment mode; 2) RF Gen Freq = 2) Double click [Narrow-Band RSSI 12.
  • Page 38 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method 1) Run the debugging software on the PC, and set the tester to 1) Set the tester to RX adjustment mode; state; 2) Double click [Wide-Band RSSI 5], 2) Set RF Gen Freq = 14.
  • Page 39 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method 1) Set the tester to RX Connect state; antenna 2) Set RF Gen Freq to a interface of the medium frequency, set radio to RF...
  • Page 40 DM588 Service Manual Measurement Tool and Method Item Environment Index Requirement Test Device Test Point Tool Method 1) Power on the radio and disable TX. Connect the 1) Run the debugging software on RF IN interface of the the PC, and set the tester to radio to the RF OUT adjustment mode;...

  • Page 41: General Specifications

    DM588 Service Manual 6. General Specifications General Specification UHF: 400-470MHz Frequency Range VHF: 136-174MHz 1024 Channel Capacity Channel Spacing 12.5kHz/25kHz Environment Index -30°C ~+60°C Operating Temperature Storage Temperature -40°C ~+85°C Waterproofing and IP54 Dustproofing IEC 61000-4-2 (L4) ±8kV (contact discharge) ESD Protection ±15kV (air discharge)

  • Page 42: Devices For Maintenance And Test

    DM588 Service Manual < 1 min TTFF (Cold Start) TTFF (Hot Start) < 10s Horizontal Positioning < 10m Precision 7. Devices for Maintenance and Test Device Specification Frequency range: 10MHz~3GHz Standard Signal Generator Modulation: Frequency modulation and external modulation Output: -127dBm/0.1uV to > -47dBm/1mV Input impedance: 50Ω...
  • Page 43 DM588 Service Manual Failure Description Troubleshooting Replace the fuse. A. Make sure the channels the both radios communicate on are of the same frequency. Communication failure B. The radios use different CTCSS/DCS signaling codes. Set the same one via PC.

  • Page 44: Appendix 1 Abbreviations

    DM588 Service Manual Appendix 1 Abbreviations Amplify, amplifier Antenna Aautomatic power control Band pass filter CTCSS Continuous tone control squelch system Digital code squelch DEMOD Demodulation E2PROM Electrically erasable programmable read only memory High pass filter Instantaneous deviation control Intermediate frequency...

  • Page 45: Appendix 2 Material List (Electronic Part)

    DM588 Service Manual Appendix 2 Material List (Electronic Part) Table 1 Material List of Main Board DM588-01 (136MHz-174MHz) Position Material NO. Specification Position Material NO. Specification 2CC1-20-X5R250-226M 22uF/50V 2CC1-10-X7R250-223K 22nF 2CC1-20-X5R250-226M 22uF/50V 2CC1-10-X7R500-102K 2CC1-10-X5R500-104K 100nF 2CC1-10-X7R500-102K 2CC1-10-X7R250-223K 22nF 2CC1-20-X5R250-226M 22uF/50V...
  • Page 46 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification C403 2CC1-20-X5R250-226M 22uF/50V 1DS1-1SS387 1SS387 C404 2CC1-20-X5R250-226M 22uF/50V 1DS1-1SS387 1SS387 C418 2CC1-10-X5R500-105K 3FW1-42932-302320 3A/32V C448 2CC1-20-X5R250-226M 22uF/50V 135F04000011 BLM11A601S C460 2CC1-10-X7R250-223K 22nF 5FE1-BLM21P300S BLM21P300S C462 2CC1-10-C0G500-151J 150pF FB12 135F04000011...
  • Page 47 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 1TF1-IRFR9024NPBF IRFR9024NPBF R273 2RS1-10-6R8J 1TF1-ST2301 ST2301 R280 2RS1-10-102J 1TF1-ST2301 ST2301 R339 2RS1-10-104J 100K Q102 1TF1-ST2301 ST2301 R340 2RS1-10-224J 220K 2RS1-10-103J R343 2RS1-10-105J 2RE1-10-6802 68K 1% U200 1IS1-LM2941S LM2941S 2RE1-10-1602 16.2K 1%...
  • Page 48 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification C110 2CC1-10-X7R160-104K 100nF C138 2CC1-10-C0G500-101J 100pF C111 2CC1-10-X7R160-104K 100nF C139 2CC1-10-X7R160-104K 100nF C112 2CC1-32-X7R251-473K 47nF C140 2CC1-10-C0G500-151J 150pF C113 2CT1-TS32-160-3R3M 3.3uF/25V C141 2CC1-10-X7R160-104K 100nF C114 2CT1-TS32-250-R47M 0.47uF/25V C142 2CC1-10-C0G500-151J...
  • Page 49 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification C402 2CT1-TP20-100-2R2M 2.2uF/10V 2LW1-16UC-R33G 330nH 1DV1-1SV325 1SV325 2LL1-16-1R0KB 1DV1-1SV325 1SV325 2LW1-20UC-470GA 47nH 2% 1DV1-1SV325 1SV325 2LW1-20UC-390GB 39nH 2% 1DV1-1SV325 1SV325 2LW1-16UC-R33G 330nH 1DV1-1SV325 1SV325 2LW1-16UC-R33G 330nH 1DV1-1SV325 1SV325 2LW1-16UC-R33G...
  • Page 50 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 2RS1-10-121J 120R 125O04000008 12.8MHz 2RS1-10-101J 100R 2CC1-10-C0G500-3R0C 2RS1-10-822J 8.2K C262 2CC1-10-X7R500-102K 2RS1-10-392J 3.9K C513 2CC1-10-X7R500-102K 2RS1-10-181J 180R C522 2CC1-10-X7R500-102K 2RS1-10-470J C630 2CC1-32-X7R251-473K 47nF 2RS1-10-682J 6.8K C631 2CT1-TS32-250-R47M 0.47uF/25V 2RS1-10-562J 5.6K...
  • Page 51 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification L110 2LW1-16UC-560J 56nH C187 2CC1-10-C0G500-120J 12pF R188 2RS1-10-000O C189 2CC1-10-C0G500-101J 100pF R191 2RS1-10-121J 120R C191 2CC1-10-X7R160-473K 47nF R196 2RS1-10-120J C192 2CC1-10-C0G500-101J 100pF R197 5FE1-CB100505-102 CB100505 C193 2CC1-32-C0G102-102J R198 2RS1-10-103J...
  • Page 52 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification C219 2CC1-10-C0G500-151J 150pF 121D03000006 RB706 C220 2CC1-10-X7R500-103K 10nF D103 121D03000006 RB706 C221 2CC1-10-C0G500-151J 150pF D201 1DR1-XBS053V15R-1G XBS053V15R-1G C223 2CC1-10-X7R500-183K 18nF FB13 5FE1-CB100505-102 CB100505 C224 2CC1-10-X7R500-103K 10nF FB14 5FE1-CB100505-102 CB100505...
  • Page 53 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 2RS1-10-221J 220R R104 2RS1-16-820J 2RS1-10-221J 220R R144 2RS1-10-102J 2RS1-10-220J R272 2RS1-10-000O 2RS1-10-183J R329 2RS1-10-472J 4.7K 2RS1-10-120J C480 112C03000444 100nF 2RS1-10-000O C482 2CC1-16-C0G500-101J 100pF 2RS1-10-103J C483 112C03000444 100nF 2RS1-10-100J C486...
  • Page 54 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification C581 2CC1-16-C0G500-120J 12pF 2CC1-10-C0G500-150J 15pF C583 112C03000539 56pF 2CC1-10-C0G500-150J 15pF C585 2CC1-16-C0G500-330J C208 2CC1-10-C0G500-270J 27pF C586 2RS1-16-151J 560R C240 2CC1-10-C0G500-221J 220pF C587 2CC1-16-C0G500-181J 180pF C242 2CC1-10-C0G500-220J 22pF C588 2CC1-16-C0G500-330J...
  • Page 55 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification C290 2CC1-10-C0G500-270J 27pF 1DV1-1SV305 1SV305 C291 2CC1-10-C0G500-221J 220pF 1DV1-1SV305 1SV305 C292 2CC1-10-C0G500-7R0D 1DS1-RN142S 1SS390 C293 2CC1-10-X7R500-103K 10nF FB15 5FE1-CB100505-102 CB100505 C294 2CC1-10-X5R500-104K 100nF IC26 121I05000018 PM310 C297 2CC1-10-X7R500-102K 2LW1-20UC-270J...
  • Page 56 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 2RS1-16-272J 2.7K R349 2RS1-10-470J 2RS1-16-272J 2.7K C267 2CC1-10-C0G500-220J 22pF 1TT1-BFU550A BFU550A C268 2CC1-10-C0G500-130J 13pF 121T01000011 BFS520 C271 2CC1-10-C0G500-221J 220pF R106 2RS1-10-104J 100K C274 2CC1-10-C0G500-221J 220pF R107 2RS1-10-104J 100K C275...
  • Page 57 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification R124 2RS1-10-363J C352 2CC1-10-X7R100-224K 220nF R125 2RS1-10-222J 2.2K C353 2CC1-10-C0G500-101J 100pF R126 2RS1-10-182J 1.8K C354 2CC1-10-C0G500-101J 100pF R127 2RS1-10-102J C358 2RS1-10-000O R128 2RS1-10-102J C359 2CC1-10-X7R160-104K 100nF R220 2RS1-10-000O C360...
  • Page 58 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification R174 2RS1-10-821J 820R C464 2CC1-10-X5R100-105K R228 2RS1-10-104J 100K C467 2CC1-10-X5R100-105K R229 2RS1-10-103J C471 2CC1-10-X5R100-105K R270 2RS1-10-513J C502 2CC1-10-C0G500-6R8C 6.8pF R325 2RS1-10-6R8J C503 2CC1-10-C0G500-6R8C 6.8pF R326 2RS1-10-000O C508 112C03000085 10uF 5OC1-50R0-DSB32-2509 50.4MHZ...
  • Page 59 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 135X02000005 32.768K C389 112C03000085 10uF 2CC1-06-C0G500-101J 100pF C390 112C03000085 10uF 2CC1-06-X5R100-105M C396 2CC1-06-X5R100-104 100nF 2CC1-06-X5R100-105M C408 112C03000085 10uF 2CC1-06-X5R100-105M C409 2CC1-06-X5R100-104 100nF 2CC1-06-X5R100-105M C410 2CC1-06-X5R100-104 100nF 2CC1-06-X5R100-105M C411 2CC1-06-X5R100-104...
  • Page 60 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification C432 2CC1-06-X5R100-104 100nF R193 2RS1-06-000O C433 2CC1-06-X5R100-104 100nF R194 2RS1-06-103J C501 2CC1-06-X5R100-104 100nF R195 2RS1-06-103J C504 2CC1-06-X5R100-104 100nF R320 2RS1-06-103J C505 2CC1-06-X5R100-104 100nF R321 2RS1-06-105J 1DS1-1SS390 1SS390 121I05000078 PCA85063A...
  • Page 61 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 2CC1-10-X7R500-102K C461 2CC1-06-X5R100-105M 2CC1-10-X7R160-104K 100nF C478 2CC1-06-X5R100-105M 2CC1-06-X5R100-105M C479 2CC1-06-X5R100-105M 2CC1-06-X5R100-105M C481 2CC1-06-X5R100-105M 2CC1-06-X7R500-102K C487 2CC1-06-X5R100-105M C357 2CE1-VS250-101M0607D 100uF/25V C490 2CC1-06-X5R100-105M C399 2CC1-06-X5R100-105M C491 2CC1-06-X7R500-102K C407 2CC1-06-X5R100-105M C492 2CC1-06-X7R500-102K...
  • Page 62 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification C629 2CC1-06-X5R100-105M R186 2RS1-06-101J C637 2CC1-06-C0G500-101J 100pF R187 2RS1-06-103J 5FE1-BLM21P300S BLM21P300S R205 2RS1-06-330J FB22 5FE1-CB100505-102 CB100505 R206 2RS1-06-330J 1IS3-TDA1519CB TDA1519C R211 2RS1-10-184J 180K 121I03000013 RS2252XTQC16 R226 2RS1-06-102J IC20 121I03000013...
  • Page 63 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification C401 2CC1-06-X5R100-105M 1027 1DR1-ESD9B5 ESD5311N-2/TR 1000 C405 2CC1-06-X7R500-102K 1028 1DR1-ESD9B5 ESD5311N-2/TR 1001 C406 2CC1-06-X7R500-102K 1029 1DR1-ESD9B5 ESD9N5B-2/TR 1002 C434 112C03000318 33pF 1030 121I05000096 ADS1015/SGM58031 1003 C446 2CC1-10-X7R500-102K 1031 3CF1-05-50P...
  • Page 64 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 1055 R248 5FE1-CB100505-102 CB100505 1083 C510 2CC1-10-X5R500-104K 100nF 1056 R249 5FE1-CB100505-102 CB100505 1084 C511 2CC1-10-X7R500-471K 470pF 1057 R250 5FE1-CB100505-102 CB100505 1085 3CC1-MINIH8-PCI MINI-PCIE 1058 R251 5FE1-CB100505-102 CB100505 1086 5FE1-BLM41P600SPT...
  • Page 65 1125 IC16 121I05000159 ATS2831P 1143 5XC1-26R0-3225 1126 133C04000003 MM9329-2700 1127 2LG1-VLS3012ET-100M 10uH 1128 2LL1-16-3N9SA 3.9nH Table 2 Material List of Main Board DM588-02 (400MHz-470MHz) Position Material NO. Specification Position Material NO. Specification 2CC1-20-X5R250-226M 22uF/50V 2CC1-10-X7R500-102K 2CC1-20-X5R250-226M 22uF/50V 2CC1-10-X5R500-104K 100nF 2CC1-10-X5R500-104K...
  • Page 66 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 2CC1-10-X7R250-223K 22nF 2CC1-10-X5R500-104K 100nF 112C03000481 10uF/50V 2CE1-VS250-101M0607D 100uF/25V 112C03000481 10uF/50V C307 2CC1-20-X5R250-226M 22uF/50V 112C03000481 10uF/50V C308 2CC1-10-X5R500-104K 100nF 112C03000481 10uF/50V C393 2CC1-10-C0G500-151J 150pF 2CC1-10-X5R500-104K 100nF C398 2CC1-10-X7R500-102K 2CC1-10-X5R500-104K 100nF...
  • Page 67 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 1DS1-1SS387 1SS387 1TF1-SSM3K15AFS SSM3K15AFS 1DR1-SMCJ20A SMCJ20A 1TT1-DTC144EE DTC144EE 1DS1-1SS387 1SS387 1TT1-DTC144EE DTC144EE 1DS1-1SS387 1SS387 1TF1-ST2301 ST2301 1DS1-1SS387 1SS387 1TT1-DTC144EE DTC144EE 1DS1-1SS387 1SS387 1TT1-DTC144EE DTC144EE 1DS1-1SS387 1SS387 1TF1-IRFR9024NPBF IRFR9024NPBF 1DS1-1SS387...
  • Page 68 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification R234 2RS1-10-103J 2CC1-06-X5R100-104 100nF R261 2RS1-10-471J 470R C103 2CC1-10-X5R500-104K 100nF R262 2RS1-10-104J 100K C104 2CC1-10-X7R160-104K 100nF R263 2RS1-10-471J 470R C105 2CC1-10-X7R500-102K R264 2RS1-10-104J 100K C108 2CC1-10-X7R500-102K R268 2RE1-10-1004 1M 1%...
  • Page 69 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification C132 2CC1-10-C0G500-8R0C C161 2CC1-10-C0G500-151J 150pF C133 2CC1-10-C0G500-9R0C C162 2CC1-10-X5R100-474K 470nF C134 2CC1-10-C0G500-2R0D C163 112C03000197 47pF C135 2CC1-10-C0G500-100D 10pF C164 2CC1-10-C0G500-180J 18pF C136 2CC1-10-C0G500-100D 10pF C165 2CC1-10-C0G500-271J 270pF C137 2CC1-10-C0G500-100D...
  • Page 70 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 5FE1-CB100505-102 CB100505 2LL1-16-22NJB 22nH 5FE1-CB100505-102 CB100505 1TT1-BFU550A BFU550A 5FE1-CB100505-102 CB100505 1TT1-2SC4617-R 2SC4617 FB10 5FE1-CB100505-102 CB100505 121T01000011 BFS520 1TC1-UMC4 UMC4 121T01000011 BFS520 1IS1-XC6209F332M XC6209F332MR Q104 1TT1-BFU550A BFU550A IC10 1TC1-UMC4 UMC4...
  • Page 71 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 2RS1-10-562J 5.6K C630 2CC1-32-X7R251-473K 47nF 2RS1-10-392J 3.9K C631 2CT1-TS32-250-R47M 0.47uF/25V 2RS1-06-101J 100R C632 2CC1-32-X7R500-102K 2RS1-10-000O C662 2CC1-10-C0G500-9R0C 2RS1-10-473J C663 2CC1-10-C0G500-9R0C 2RS1-10-123J C664 2CC1-10-C0G500-3R0C 2RS1-10-273J C691 2CC1-10-C0G500-3R0C 2RS1-10-822J 8.2K C695...
  • Page 72 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification R198 2RS1-10-103J C195 2CC1-32-C0G102-2R0J R201 5FE1-CB100505-102 CB100505 C196 2CC1-32-C0G102-1R0J R354 2RS1-10-680J C198 2CC1-32-C0G102-2R0J R357 2RS1-06-101J 100R C199 2CC1-32-C0G102-4R0J R358 2RS1-06-101J 100R C200 2CC1-32-C0G102-102J R359 2RS1-06-101J 100R C201 2CC1-32-C0G102-4R0J R360...
  • Page 73 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification C226 2CC1-10-C0G500-1R0C IC14 1TC1-UMC4 UMC4 C227 2CC1-10-C0G500-271J 27pF IC25 1IS3-DS18B20 DS18B20 C228 112C03000209 2LL1-16-33NJA 33nH C229 2CC1-10-C0G500-1R5C 1.5pF 2LL1-16-22NJB 22nH C230 2CC1-10-C0G500-471J 470pF 2RS1-16-000O C231 2CC1-10-X7R500-102K 2LW1-20UC-180G 18nH C232...
  • Page 74 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 2RS1-10-100J C483 112C03000444 100nF 2RS1-10-100J C486 2CC1-16-C0G500-101J 100pF 2RE1-10-1002 10K 1% C488 112C03000444 100nF 2RE1-10-1003 1M 1% C489 2CC1-16-C0G500-101J 100pF 2RS1-10-222J 2.2K C493 2CE1-VS250-101M0607D 100uF/25V 2RE1-10-1002 10K 1% C495...
  • Page 75 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 2LH1-R501R5-R05-05 C249 2CC1-10-X7R160-104K 100nF 2LH1-R903R0-L03-03 C250 2CC1-10-C0G500-151J 150pF 2CC1-20-C0G500-101J 100pF C251 2CC1-10-C0G500-151J 150pF 2CC1-20-C0G250-680J 68pF C252 2CC1-10-C0G500-151J 150pF 2RS1-32-000O C253 2CC1-10-X7R500-103K 10nF L100 5FE1-BLM41P600SPT BLM41P600SPT C255 2CC1-10-C0G500-151J 150pF L101...
  • Page 76 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification C300 2CC1-10-C0G500-4R0B 2LW1-20UC-220J 22nH C301 2CC1-10-C0G500-160J 16pF 2LL1-16-10NJA 10nH C302 2CC1-10-C0G500-6R8C 6.8pF 2LW1-16UC-181J 180nH C391 2CC1-10-X7R500-102K 2LW1-20UC-220J 22nH C452 2CC1-10-C0G500-2R5D 2.5pF 2LW1-20UC-220J 22nH C472 2CC1-10-C0G500-5R0C 2LW1-16UC-R33G 330nH C474 2CC1-10-C0G500-220J...
  • Page 77 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification R117 2RS1-10-122J 1.2K 2LI1-1608-R39G 390nH R129 2RS1-10-823J 2RS1-16-101J 100R R130 2RS1-10-684J 680K 2LL1-16-1R0KB R135 2RS1-10-470J 2RS1-16-000O R136 2RS1-10-150J 2LW1-16UC-R33G 330nH R137 2RS1-10-000O 2RS1-16-000O R307 2RS1-10-104J 100K 121T01000011 BFS520 R345...
  • Page 78 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification C338 2CC1-20-X7R500-226M 22uF/50V R161 2RS1-10-224J 220K C339 2CC1-10-X7R500-102K R162 2RS1-10-105J C340 2CC1-10-X5R500-104K 100nF R163 2RS1-10-683J C341 2CC1-10-C0G500-101J 100pF R164 2RS1-10-330J C342 2CC1-10-C0G500-101J 100pF R165 2RS1-10-330J C343 2CC1-10-C0G500-101J 100pF R166...
  • Page 79 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification C320 2CC1-10-X5R100-474K 470nF R312 2RS1-10-102J C321 2CC1-10-X5R100-474K 470nF R313 2RS1-10-000O C322 2CC1-10-X5R100-474K 470nF 121I05000092 AT6558F-5N32 C323 2CC1-10-X5R100-105K 1IS1-AT2659 AT2659 C324 2CC1-10-X5R100-105K U1301 121I05000110 WL2836D33 C325 2CC1-10-X5R100-105K 125O03000001 C464 2CC1-10-X5R100-105K 135X02000005 32.768K...
  • Page 80 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification C377 2CC1-06-X5R100-105M C426 2CC1-06-X5R100-104 100nF C379 2CC1-06-X5R100-105M C427 2CC1-06-X5R100-104 100nF C381 2CC1-06-X5R100-105M C428 2CC1-06-X5R100-104 100nF C382 2CC1-06-X5R100-105M C429 2CC1-06-X5R100-104 100nF C386 112C03000085 10uF C430 2CC1-06-X5R100-104 100nF C387 112C03000085 10uF...
  • Page 81 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification R180 2RS1-06-274J 270K R225 112R01000008 2.2K R181 2RS1-06-274J 270K 5OT1-26R0-DSB221SDN 26MHz R182 2RS1-06-103J 2CC1-20-X5R250-226M 22uF/50V R183 2RS1-06-103J 2CC1-10-X7R500-471K 470pF R184 2RS1-06-103J 2CC1-20-X5R250-226M 22uF/50V R192 2RS1-06-103J 2CC1-10-C0G500-151J 150pF R193 2RS1-06-000O...
  • Page 82 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification C453 112C03000085 10uF C547 2CC1-06-C0G500-101J 100pF C454 2CC1-06-X5R100-105M C624 2CC1-06-X5R100-105M C455 2CC1-06-X5R100-105M C625 2CC1-06-X5R100-105M C456 112C03000085 10uF C626 2CC1-06-X7R500-102K C457 2CC1-06-X5R100-105M C627 2CC1-06-C0G500-101J 100pF C458 2CC1-06-X5R100-105M C628 2CC1-06-C0G500-101J 100pF...
  • Page 83 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 1TT1-DTC144EE DTC144EE C306 2CC1-16-C0G500-101J 100pF 1TF1-ST2301 ST2301 C326 2CC1-16-X7R500-104K 100nF 2CC1-10-X5R160-105K C328 2CC1-16-C0G500-101J 100pF 2RS1-10-100J C329 2CC1-16-C0G500-101J 100pF 2RS1-10-273J C394 112C03000318 33pF 2RS1-10-473J C395 112C03000318 33pF R186 2RS1-06-101J C401...
  • Page 84 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 1021 1DR1-ESD9B5 ESD9N5B 1049 R242 5FE1-CB100505-102 CB100505 1022 1DR1-ESD9B5 ESD9N5B 1050 R243 5FE1-CB100505-102 CB100505 1023 1DR1-ESD9B5 ESD9N5B 1051 R244 5FE1-CB100505-102 CB100505 1024 1DR1-ESD9B5 ESD9N5B 1052 R245 5FE1-CB100505-102 CB100505 1025...
  • Page 85 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 1077 C369 2CC1-32-X7R250-226K 22uF/25V 1105 2CC1-06-X5R100-105M 1078 C370 2CC1-32-X7R250-226K 22uF/25V 1106 C100 2CC1-06-X5R100-105M 1079 C378 2CC1-32-X7R250-226K 22uF/25V 1107 C101 2CC1-06-X5R100-105M 1080 C465 2CC1-32-X7R250-226K 22uF/25V 1108 C102 2CC1-06-X5R100-105M 1081 C466...
  • Page 86 2RS1-06-330J 1136 R259 2RS1-06-102J 1142 R289 2RS1-06-330J 1137 R260 2RS1-06-330J 1143 5XC1-26R0-3225 1138 R266 2RS1-06-330J Table 3 Material List of DM588 LCD Board Position Material NO. Specification Position Material NO. Specification 2CC1-10-X7R500-102K 2CC1-10-X7R500-102K 2CC1-10-X7R500-102K 2CC1-10-X7R500-102K 2CC1-10-X7R500-102K 2CC1-10-X7R500-102K 2CC1-10-X7R500-102K 2CC1-10-X7R500-102K 2CC1-10-X7R250-223K...
  • Page 87 DM588 Service Manual Position Material NO. Specification Position Material NO. Specification 2CC1-32-X7R250-226K 22uF 135F04000011 BLM11A601S C305 2CC1-10-X7R500-102K 135F04000011 BLM11A601S C306 2CC1-16-C0G500-101J 100pF 135F04000011 BLM11A601S C307 2CC1-20-X7R500-225K 2.2uF 3CF1-FPC-05-20P KEYBOARD_CON C308 2CC1-10-X7R250-223K 22nF 1TF1-ST2301 ST2301 C326 112C03000444 100nF 1TT1-DTC114YE DTC144EE 470Ω...
  • Page 88 4.7Ω 470Ω 2RS1-16-4R7J R154 2RS1-10-471J 3.3Ω 100KΩ 112R02000026 R155 2RS1-10-104J 3.3Ω 33Ω 112R02000026 R259 2RS1-32-330J Table 4 Material List of DM588 Key Board Position Material NO. Specification Position Material NO. Specification 3CC3-2R00207-J2 CFD-FH20 124P01000006 HJ-19URC-T6 2CC1-10-X7R500-102K 124P01000007 HJ-19YGC-T C305 2CC1-10-X7R500-102K...

  • Page 89: Appendix 3 Material List (Structural Part)

    DM588 Service Manual Appendix 3 Material List (Structural Part) Material NO Material Name Material NO Material Name Lower aluminum-alloy machine screw 147K02000065 housing Thermal conductive pad for 7MBR-4291-06A-W0 audio power amplifier 7MBR-4291-05A-W0 Antenna plug 7GGS-090043008-W Flat washer 7MBR-4291-02A-W3 Waterproof ring for panel...
  • Page 90 DM588 Service Manual Material NO Material Name Material NO Material Name post 7MBR-4304-04A-W0 Speaker seal ring 7MBS-4304-04B-W Metal dome array 7MBP-4304-03A-W0 Volume knob 7MBS-4304-03B-W Clamping ring of speaker 6SS3-MK4291-BMA Front housing assembly 7MBS-4304-02A-W LCD holder M2.5*5 torx Rubber stopper for SIM...

  • Page 91: Appendix 4 Schematic Diagrams And Layout Drawings

    DM588 Service Manual Appendix 4 Schematic Diagrams and Layout Drawings Figure 1 Schematic Diagrams of Main Board (136MHz-174MHz) HOLE HOLE HOLE HOLE HOLE HOLE HOLE HOLE Hole Hole Hole Hole Hole Hole Hole Hole HOLE9 HOLE10 HOLE11 HOLE12 HOLE13 HOLE14...
  • Page 92 DM588 Service Manual PLL_3V3 FB6 CB100505 Q4 2SC4617 CB100505 XC6209F332M CB100505 IC10 UMC4 C149 22uF/50V 5.6K 100R TXRX R199 100R DUPLEXTXVCOSELECT IC6 UMC4 R140 C144 10pF RXLO 1SV3 C132 5.6pF C135 BFU550A 11pF 1SV3 C133 5.6pF C138 5.6R 180R 100pF 5.6R...
  • Page 93 DM588 Service Manual FB35 R361 5.6R R362 5.6R CB100505 L110 56nH C691 C664 FVCO AUXPLL_FEEDBACK FVCO 100pF C708 SKY72310-11 R357 100R 72310_LD R358 100R DATA SPI_DATA R359 100R SPI_CLK R196 R197 R201 R363 100R SPI_AUX_72310_CS CPOUT AUXPLL_CV CB100505 CB100505 C262...
  • Page 94 DM588 Service Manual VCC_8V DS18B20 IC25 C236 4.7K 22uF/50V R329 R272 10nF C233 DS18B20 C237 22uF/50V 100nF C234 C235 IC14 10nF C238 UMC4 R144 C239 IC13-B NJM2904 47nH 47nH C230 470pF IC13-A NJM2904 2.2K C229 C226 RB706 270R 100K C223...
  • Page 95 DM588 Service Manual DC13.8V L100 BLM41P600SPT L101 TEMPERATURE BLM41P600SPT RFPOWERCONTROL C572 150pF C571 10nF C570 150pF C580 150pF C569 10nF C579 10nF C565 150pF C564 10nF TOLPF 180pF C587 220pF RD35HUP2 180P R330 C586 560R 150R C561 47nH 56pF R334...
  • Page 96 DM588 Service Manual C208 27pF PM310 IC26 39nH 39nH 15pF RFIO IFOUT 270nH 15pF R345 R346 R347 R135 R136 BALUN5 NC BALUN6 NC C605 220pF R348 MIXEROUT C555 C288 C291 15pF 220pF C604 220pF C645 C270 R137 18nH 18nH C286 15pF...
  • Page 97 DM588 Service Manual R127 R128 C272 C276 390nH 100R 49.95MHz C271 220pF C275 220pF C304 MIXEROUT BFS520 BFS520 51.65IF...
  • Page 98 DM588 Service Manual R164 C311 2365_PDN 450KIF R165 2365_RSTN R166 SPI_2365_CS R167 SPI_CLK R168 SPI_DATA RSSI FB46 FB19 R161 CB100505 220K R162 100K C337 C358 R169 AFADC DVDD RSSIOUT C335 100pF R163 C339 R228 100K DVSS PDOUT VREFD DISCOUT AVSS3...
  • Page 99 DM588 Service Manual AT6558F-5N32 U-BLOX G7 47pF 8.2nH GPS_LNA LNA_IN XTAL_I R311 XTAL_O 2.5pF LDO_X_OUT R312 C471 T_SENSE DIGITAL RESET_N PIO8/DDC_SCL R314 PIO9/DDC_SDA PIO0 R315 AT2659 PIO1 RFOUT GPS_LNA PIO2 SHDN USS RF RFIN PIO3 L37 4.7nH PIO4 GPS_RXD PIO7/UART_RX C503 6.8pF...
  • Page 100 DM588 Service Manual U5-C ASIC-HS8861-175 POWER/GND 3 of 3 VBAT VB (FROM VBATB) VBATA (150mA) AVDDVBO BB4.2V BB4.2V FB23 GZ1608U601CTF DCDCFILTER4V2 AVDDVB VBATB LDO OUT (VBATB) BB4.2V VDDRF0 (200mA) VDDRF BB4.2V VBATPA (150mA) VDD18 D1V8 CHARGE AVDD_2V8 (150mA) VDD28 R235...
  • Page 101 DM588 Service Manual U5-A ASIC-HS8861-175 DIGTAL 1 of 3 DAT0 SD_D0 RF (VDD28) SD_D1 DAT1 DAT2 SD_D2 5T_EN DAT3 SD_D3 DAT4 IC18 100nF C429 5R_EN DAT5 KLM4G1FETEB041 DAT6 100nF C430 DAT7 PC_SW RSTN 100nF C431 VCCQ KEYPAD (VDD28) VCCQ 100nF...
  • Page 102 DM588 Service Manual U5-B ASIC-HS8861-175 ANALOG 2 of 3 AUDIO MBIAS BT_TRX MICP MICN C414 FM_LANT 27nH AFADC HEADMICP C415 MM9329-2700 FM_SANT C413 100nF HEADMICN HEADMIC_IN MODE2 HEADP_L MODE1 HEADP_R EARP EARN OUTPPA OUTNPA AGNDVB NC_VOX AUXADC 26MHZCLK C422 100nF...
  • Page 103 DM588 Service Manual C623 NC 26MHZCLK MBIAS MIC_P MIC_N C399 C481 R227 DMRAOUT- C436 C479 R226 C626 DMRAOUT+ FB2 BLM21P300S TDA1519C POWER C435 VCCRXFE AUDLN VCOM AUDRN AUDIOOUT+ J600 C442 VCCPA AUDRP SPK_JACK VCCPAD GNDAUD 100nF VCCIF 10uF C412 VSYS...
  • Page 104 DM588 Service Manual AVDD_2V8 /SYNC ADS1015/SGM58031 SCLK IC15 VREF2 AIN0 VREF1 AIN1 DOUT AIN2 AIN3 ALERT/RDY ADDR R239 CB100505 R238 CB100505 4.7K R295 DVDD AVDD R275 BATDET AIN0 4.7K R298 REFAB R241 R149 AIN1 R236 R210 I2C_DATA LDAC OUTA 5614LDAC...
  • Page 105 DM588 Service Manual POWER BLM41P600SPT BLM41P600SPT ST2301 100K MINI-PCIE-DEFINE DTC114YE NC/PCM_FS POWER_4G 2.2K NC/PCM_OUT NC/1.5V NC_PCM_IN NC/PCM_CLK WAKE#/PCM_IN/NC USIM_DET VCC/PCM_OUT/NC VCC/PCM_FS/NC USB_D+ M_USB_D- PCM_CLK/NC M_USB_D+ USB_D- 4G_TXD R203 4G_RXD NC/1.5V 4G_AUDIOOUT+ SPKP/NC R185 4G_AUDIOOUT- SPKN/NC R105 2.2K REST/NC 4G_REST AUDIOOUT+...
  • Page 106 DM588 Service Manual R143 2.2K BTAOUT- 100nF C375 1uF BTAOUT+ R213 C537 1uF R258 AUDIOOUT+ C538 1uF R285 AUDIOOUT- R286 R287 C539 1uF R156 R288 R289 NT CP19 TP21 C102 1uF C101 1uF C100 1uF TP12 R267 TP13 RXD0 R266...
  • Page 107 DM588 Service Manual Figure 2 Schematic Diagrams of Main Board (400MHz-470MHz) HOLE HOLE HOLE HOLE HOLE HOLE HOLE HOLE Hole Hole Hole Hole Hole Hole Hole Hole HOLE9 HOLE10 HOLE11 HOLE12 HOLE13 HOLE14 HOLE15 HOLE6 BB4.2V POWER- 10uH TP100 TP101...
  • Page 108 DM588 Service Manual PLL_3V3 2SC4617 CB100505 CB100505 XC6209F332MR CB100505 IC10 UMC4 5.6K 100R TXRX R199 100R DUPLEXTXVCOSELECT 10pF R140 C144 UMC4 RXLO 1SV3 C132 C135 BFU550A 10pF 180nH 1SV3 C133 C138 5.6R 120R 100pF 5.6R CB100505 L21 12nH C383 C148...
  • Page 109 DM588 Service Manual FB35 R361 5.6R R362 5.6R CB100505 L110 56nH C691 C664 FVCO AUXPLL_FEEDBACK FVCO C708 100pF SKY72310-11 R357 100R 72310_LD R358 100R DATA SPI_DATA R359 100R SPI_CLK R196 R197 R201 R363 100R SPI_AUX_72310_CS CPOUT AUXPLL_CV CB100505 CB100505 C262...
  • Page 110 DM588 Service Manual VCC_8V IC25 DS18B20 C236 22uF/25V 4.7K R329 R272 10nF C233 DS18B20 C237 22uF/25V 100nF C234 C235 IC14 10nF C238 UMC4 R144 C239 IC13-B LM2904XTS8G/TR 27nH 27nH IC13-A C230 470pF LM2904XTS8G/TR 1.5pF 2.2K C229 C226 RB706UM-40 270R 100K C223 3.3nF...
  • Page 111 DM588 Service Manual DC13.8V L100 BLM41P600SPT TEMPERATURE L101 BLM41P600SPT RFPOWERCONTROL C572 C571 C570 C580 150pF C569 C579 10nF C565 150pF C564 10nF L76 0R TOLPF 100pF C587 68pF RD35HUP2 R330 100R 100pF C586 3.9nH C561 100pF R334 TORD35 RD01MUS2 C560...
  • Page 112 DM588 Service Manual C208 PM310 IC26 180nH 12pF RFIO IFOUT 12nH 180nH 82pF R345 560R R346 560R R347 560R BALUN6 R135 R136 BALUN5 NC BALUN C605 220pF R348 C555 MIXEROUT C604 220pF C270 R137 12nH 12nH C286 15pF C289 30pF...
  • Page 113 DM588 Service Manual R127 R128 C272 C276 390nH 100R 49.95MHz C271 220pF C275 220pF C304 MIXEROUT BFS520 BFS520 51.65IF...
  • Page 114 DM588 Service Manual C311 R164 2365_PDN 450KIF R165 2365_RSTN R166 SPI_2365_CS R167 SPI_CLK R168 SPI_DATA RSSI FB46 FB19 R161 220K CB100505 R162 100K C337 C358 R169 AFADC DVDD RSSIOUT C335 100pF C339 R163 R228 100K DVSS PDOUT VREFD DISCOUT AVSS3...
  • Page 115 DM588 Service Manual AT6558F-5N32 U-BLOX G7 47pF 8.2nH GPS_LNA LNA_IN XTAL_I R311 XTAL_O 2.5pF LDO_X_OUT R312 C471 T_SENSE DIGITAL RESET_N PIO8/DDC_SCL R314 PIO9/DDC_SDA PIO0 R315 AT2659 PIO1 RFOUT GPS_LNA PIO2 SHDN USS RF RFIN PIO3 L37 4.7nH PIO4 GPS_RXD PIO7/UART_RX C503 6.8pF...
  • Page 116 DM588 Service Manual U5-C ASIC-HS8861-175 POWER/GND 3 of 3 VBAT VB (FROM VBATB) BB4.2V VBATA (150mA) AVDDVBO BB4.2V FB23 GZ1608U601CTF DCDCFILTER4V2 AVDDVB BB4.2V VBATB LDO OUT (VBATB) VDDRF0 (200mA) VDDRF VBATPA BB4.2V (150mA) VDD18 D1V8 CHARGE AVDD_2V8 (150mA) VDD28 R235...
  • Page 117 DM588 Service Manual U5-A ASIC-HS8861-175 DIGTAL 1 of 3 SD_D0 DAT0 RF (VDD28) DAT1 SD_D1 DAT2 SD_D2 5T_EN DAT3 SD_D3 DAT4 IC18 100nF C429 5R_EN DAT5 KLM4G1FETEB041 DAT6 100nF C430 DAT7 PC_SW RSTN 100nF C431 VCCQ KEYPAD (VDD28) VCCQ 100nF...
  • Page 118 DM588 Service Manual U5-B ASIC-HS8861-175 ANALOG 2 of 3 AUDIO MBIAS BT_TRX MICP MICN C414 FM_LANT 27nH AFADC HEADMICP C415 MM9329-2700 FM_SANT C413 100nF HEADMICN HEADMIC_IN MODE2 HEADP_L MODE1 HEADP_R EARP EARN OUTPPA OUTNPA AGNDVB NC_VOX AUXADC 26MHZCLK C422 100nF...
  • Page 119 DM588 Service Manual C623 NC 26MHZCLK MBIAS MIC_P MIC_N C399 C481 R227 DMRAOUT- C436 R226 C479 C626 DMRAOUT+ FB2 BLM21P300S TDA1519C POWER C435 VCCRXFE AUDLN VCOM AUDRN J600 AUDIOOUT+ C442 VCCPA AUDRP SPK_JACK VCCPAD GNDAUD VCCIF 100nF 10uF C412 VSYS...
  • Page 120 DM588 Service Manual AVDD_2V8 /SYNC ADS1015 SCLK IC15 VREF2 AIN0 VREF1 SGM5348-12 AIN1 DOUT AIN2 AIN3 ALERT/RDY ADDR R239 CB100505 R238 4.7K R295 CB100505 DVDD AVDD R275 BATDET 4.7K R298 AIN0 REFAB R241 R149 R236 R210 AIN1 I2C_DATA 5614LDAC LDAC...
  • Page 121 DM588 Service Manual POWER BLM41P600SPT BLM41P600SPT ST2301 100K MINI-PCIE-DEFINE DTC114YE NC/PCM_FS POWER_4G 2.2K NC/PCM_OUT NC/1.5V NC_PCM_IN NC/PCM_CLK WAKE#/PCM_IN/NC USIM_DET VCC/PCM_OUT/NC VCC/PCM_FS/NC USB_D+ M_USB_D- PCM_CLK/NC M_USB_D+ USB_D- 4G_TXD R203 4G_RXD NC/1.5V 4G_AUDIOOUT+ SPKP/NC R185 4G_AUDIOOUT- SPKN/NC R105 2.2K 4G_REST REST/NC AUDIOOUT+...
  • Page 122 DM588 Service Manual R143 2.2K BTAOUT- 100nF C375 1uF BTAOUT+ R213 C537 1uF R258 AUDIOOUT+ C538 1uF R285 AUDIOOUT- R286 R287 C539 1uF R156 R288 R289 NT CP19 TP21 C102 1uF C101 1uF C100 1uF TP12 R267 TP13 RXD0 R266...
  • Page 123 DM588 Service Manual Figure 3 Top-Layer Layout Drawing of Main Board...
  • Page 124 DM588 Service Manual Figure 4 Bottom-Layer Layout Drawing of Main Board...
  • Page 125 DM588 Service Manual Figure 5 Schematic Diagram of LCD Board CONNECTER-14PIN FPC_P0.5_50P POWER KEYPAD_BL POWERKEY GREEN_LED RED_LED KB_R0 KB_C0 KB_R1 KB_C1 POWER KB_R2 KB_C2 BLM11A601S KB_R3 KB_C3 POWERKEY LCD_D0 LCD_D1 LCD_D2 LCD_D3 LCD_D4 LCD_D5 LCD_D6 LCD_D7 LCD_RD LCD_WR LCD_RS LCD_RST...
  • Page 126 DM588 Service Manual Figure 6 Top-Layer Layout Drawing of LCD Board...
  • Page 127 DM588 Service Manual Figure 7 Bottom-Layer Layout Drawing of LCD Board...
  • Page 128 DM588 Service Manual Figure 8 Schematic Diagram of Key Board POWERKEY CONNECTER-14PIN POWER KEYPAD_BL POWERKEY GREEN_LED 470R RED_LED POWER KB_R0 KB_C0 ST2301 KB_C1 KB_R1 KB_R2 KB_C2 KB_C3 KB_R3 POWER 100K R155 RED_LED 470R KEYPAD_BL GREEN_LED 470R 470R KEYPAD_BL KB_R3 KB_R2...
  • Page 129 DM588 Service Manual Figure 9 Top-Layer Layout Drawing of Key Board...
  • Page 130 DM588 Service Manual Figure 10 Bottom-Layer Layout Drawing of Key Board...
