10.3 Vacuum pump (TFK 12)

See vacuum pump operating instructions (in appendix)

10.4 V-Belt

●
Check the V-belt tension monthly.
●
The V-belt must not protrude more than 1cm or it will need to be rest retched.
●
Procedure:
●
Replace the protective cover
●

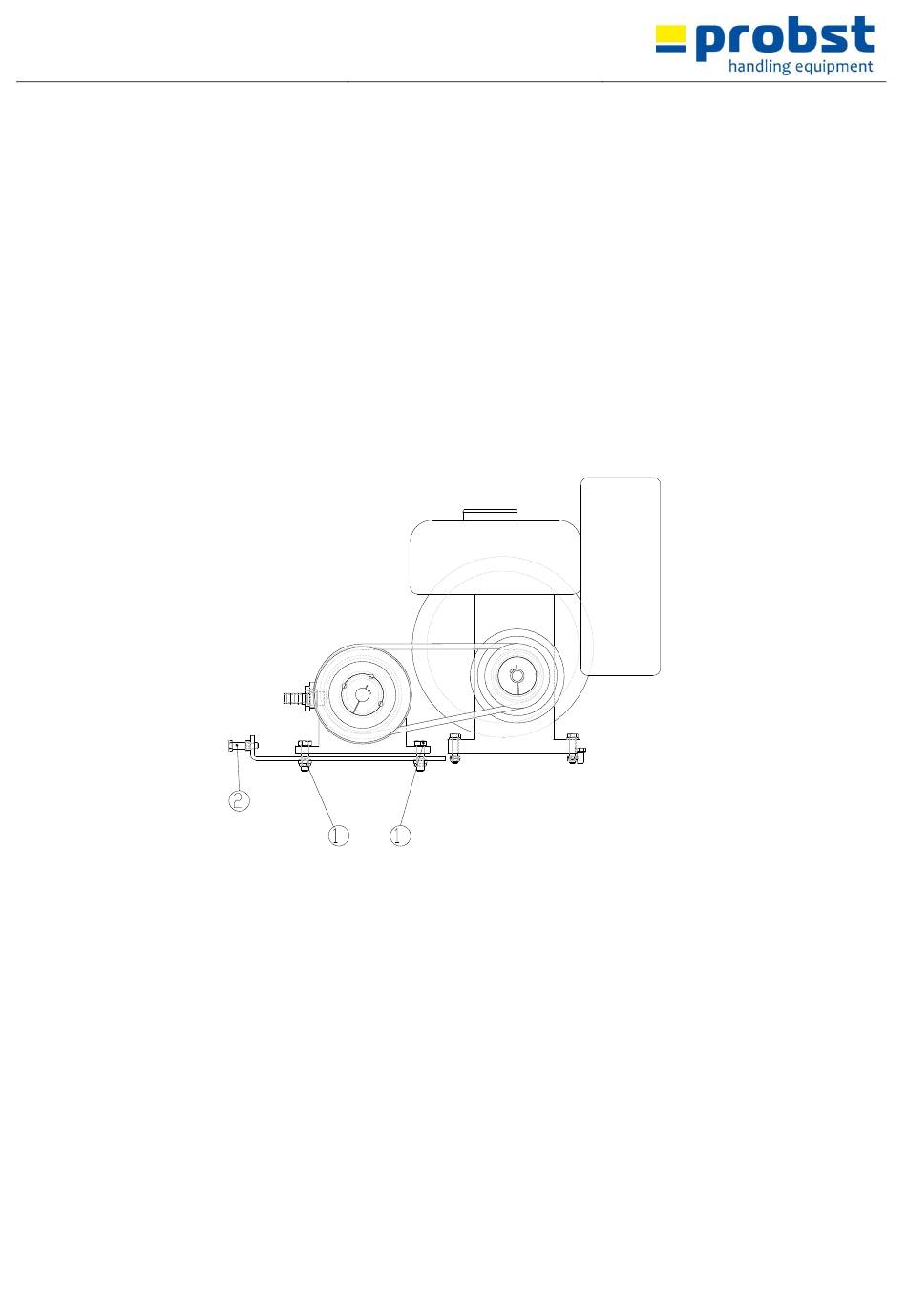

Release the 4 hex bolts (1)
●
Release the locknuts of the hex bolts (2)
●
Tighten the hex bolts (2) until the correct V-belt tension is reached.
When tightening be sure that the V-belt wheels are aligned.
●
Tighten the locknuts of the hex bolts (2)
●
Replace the protective cover
