Attaching The Safety Chain (Of The Optional Spreader Bar) - probst SH-2500 Operating Instructions Manual

Operating Instructions
SH 2500-UNI-B
7.6.1

Attaching the safety chain (of the optional spreader bar)

●
Lift the device with the sucked load just a little (approx.. 20-30 cm)
●
Then remove both safety chains from the chain cases of the spreader bar (TRA).
●
Throw the safety chains underneath the load (concrete slab) .
Never grip with the hands under load. - Caution: Danger of squeezing hands!!!
●

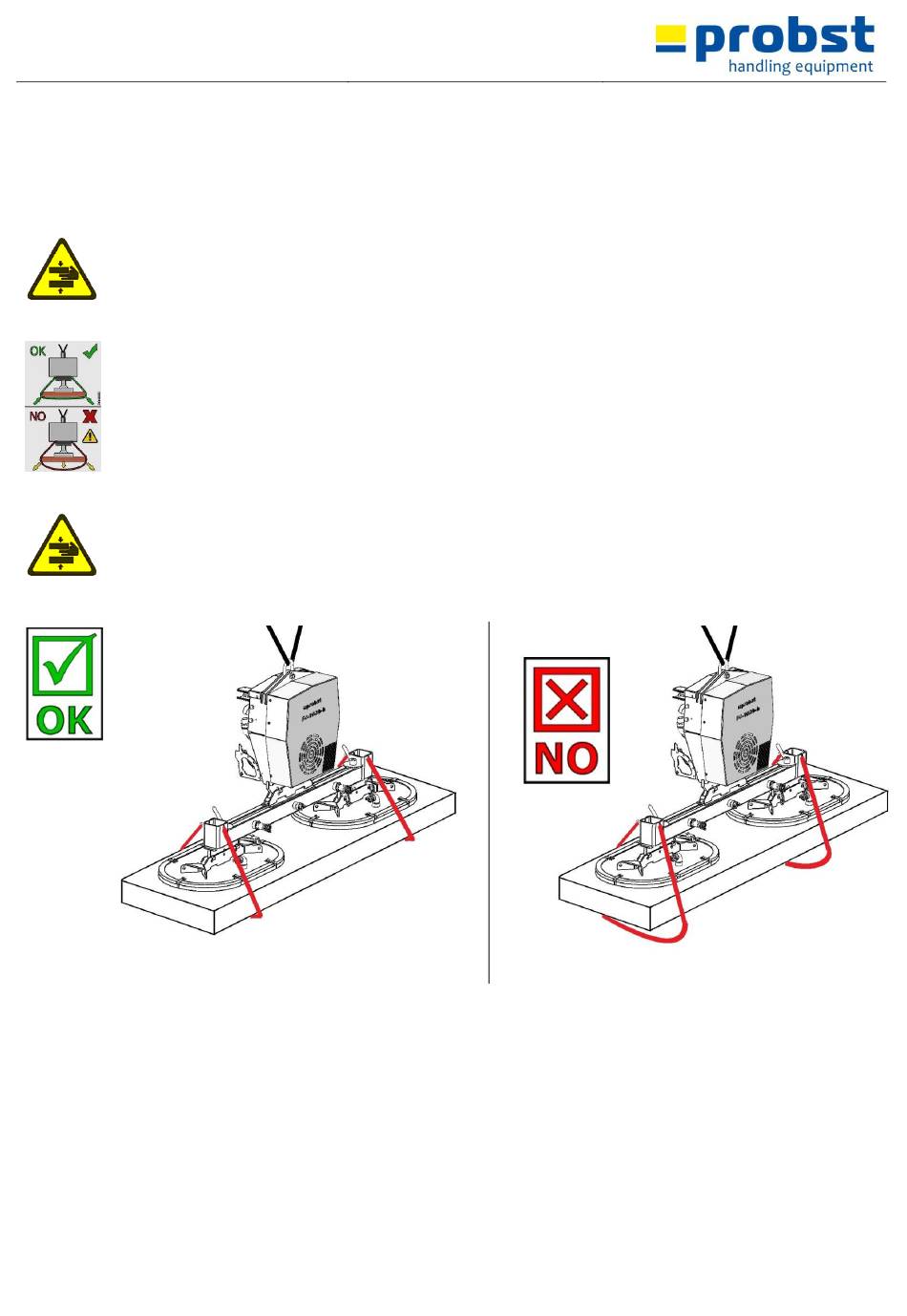

Suspend and tighten both safety chains as shown in picture 1. Place the end of the chains into the chain
cases.
●
The safety chains must fit tightly to the load, in that way that the load is held in case of a vacuum failure
(Fig. 1)
●
The safety chains must NEVER hang loose under the load, otherwise the load may fall down, in case of a
vacuum failure (Fig. 2). Danger to life!
●
Now the device with sucked load be transported to the place of destination.
●
Lower the load carefully (distance to the ground approx. 20-30 cm), then remove safety chains and throw it
under the load.
●
Never grip with the hands under load (stone slab)! Danger of squeezing!!!
●
Safety chains should be returned to chain cases.
●
Put the device with the sucked load completely down on the floor.
Fig. 1
