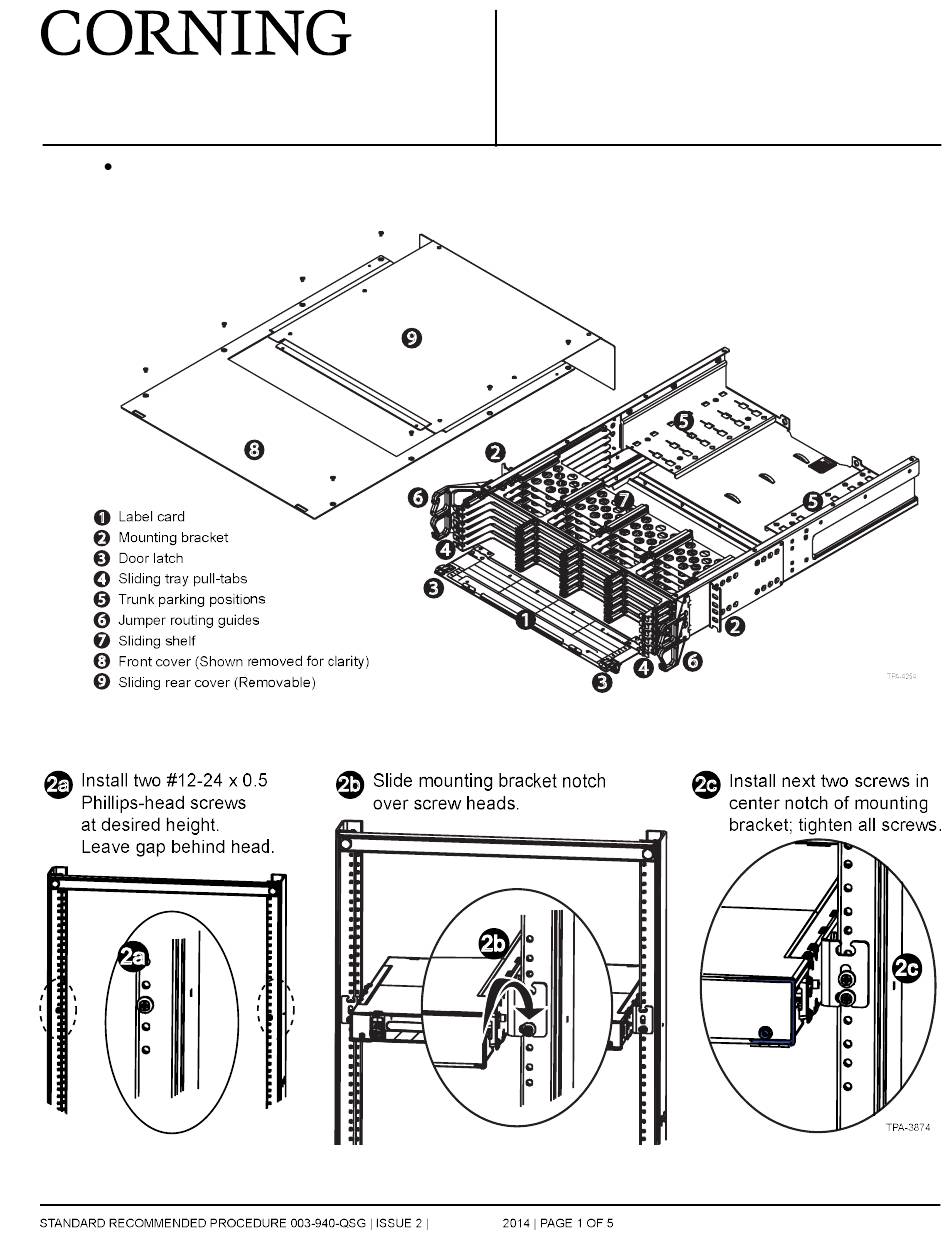

- Page 1 ® Pretium EDGE Housing (EDGE-02U) Quick Start Guide 003-940-QSG, Issue 2 Visit http://www.corning.com/opcomm for the in-depth installation manual. Search for Standard Recommended Procedure 003-794. CARTON CONTENTS MOUNTING THE HOUSING DECEMBER...
-
Page 2: Installing Cable
INSTALLING CABLE Step 1: Slide the rear cover off the housing to bring furcation plug into rear of the housing. Step 2: Install plug onto trunk plate, based on the type of trunk cradle being used. INSTALLING MODULES Clean MTP connector and adapter before mating. DECEMBER... - Page 3 TRUNK LEG ROUTING (33-INCH LEG LENGTH) Furcation Plug and Module on Opposite Sides Furcation Plug and Module on Same Side Step 1: Install furcation plug per Section 3. Step 2: Install module per Section 4. Step 3: Coil ber slack and secure with hook-and-loop strap. Step 4: Slide tray forward to check that suf cient coiled slack is present.
- Page 4 TRUNK LEG ROUTING (50 CM LEG LENGTH) Furcation Plug and Module on Opposite Sides Furcation Plug and Module on Same Side (Use front parking positions ONLY) (Use any parking positions) NOTE: Avoid using rear parking positions when furcation plug and module are on opposite sides. Step 1: Install furcation plug per Section Step 2:...
-
Page 5: Completing Installation
A complete listing of the trademarks of Corning Optical Communications is available at www.corning.com/opcomm/trademarks. All other trademarks are the properties of their respective owners. Corning Optical Communications is ISO 9001 certi ed. © 2012, 2014 Corning Optical Communications.
