Routing Settings - MSA fieldserver ProtoNode FPC-N54 Operating Manual

8 Additional Information
8.8

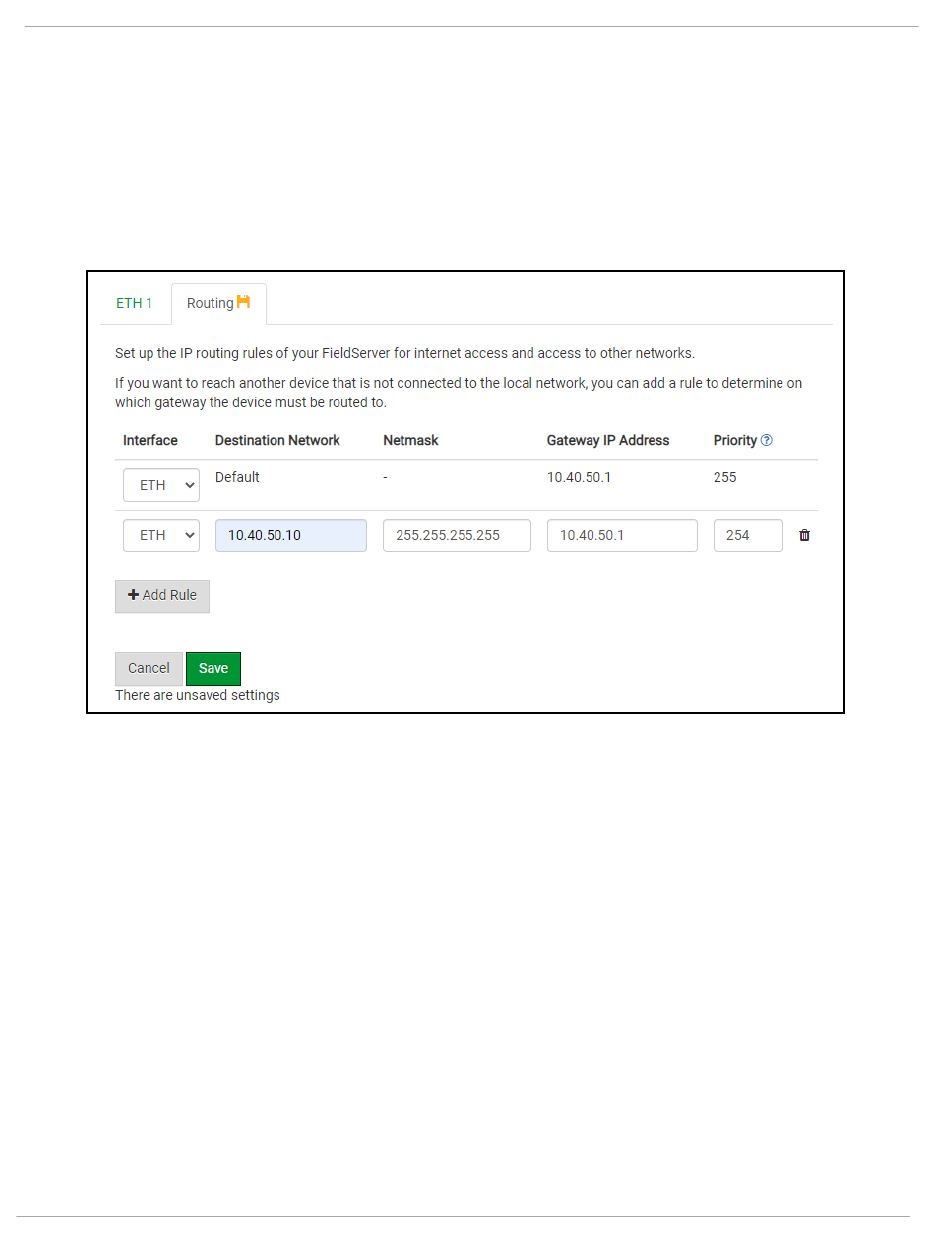

Routing Settings

The Routing settings make it possible to set up the IP routing rules for the FieldServer's internet and network connections.
NOTE: The default connection is ETH1.
• Select the default connection in the first row.
• Click the Add Rule button to add a new row and set a new Destination Network, Netmask and Gateway IP Address
as needed.
• Set the Priority for each connection (1-255 with 1 as the highest priority and 255 as the lowest).
• Click the Save button to activate the new settings.
36 Lochinvar ProtoNode FPC-N54 Guide US
