• To add an active profile to support a device, click the Add button under the Active Profiles heading. This will present a
drop-down menu underneath the Current profile column.
• Once the Profile for the device has been selected from the drop-down list, enter the value of the device's Node-ID
which was assigned in Section
• Then press the "Submit" button to add the Profile to the list of devices to be configured.
• Repeat this process until all the devices have been added.

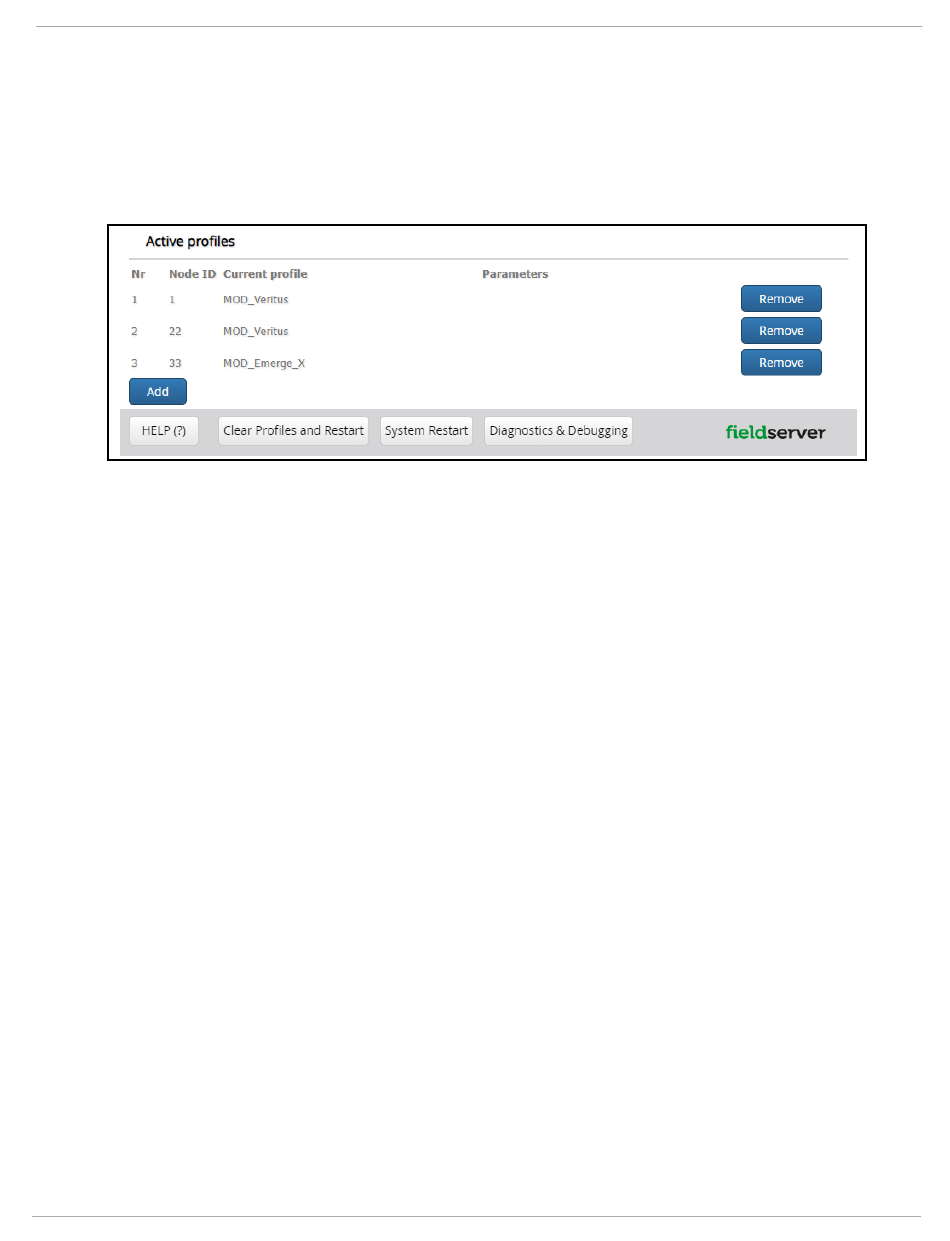

• Completed additions are listed under "Active profiles" as shown below.
6.3

Verify Device Communications

• If using a serial connection, check that TX and RX LEDs are rapidly flashing (Section
• Confirm the software shows good communications without errors (Section
