Configure the ProtoNode

6.1

Select Field Protocol and Set Configuration Parameters

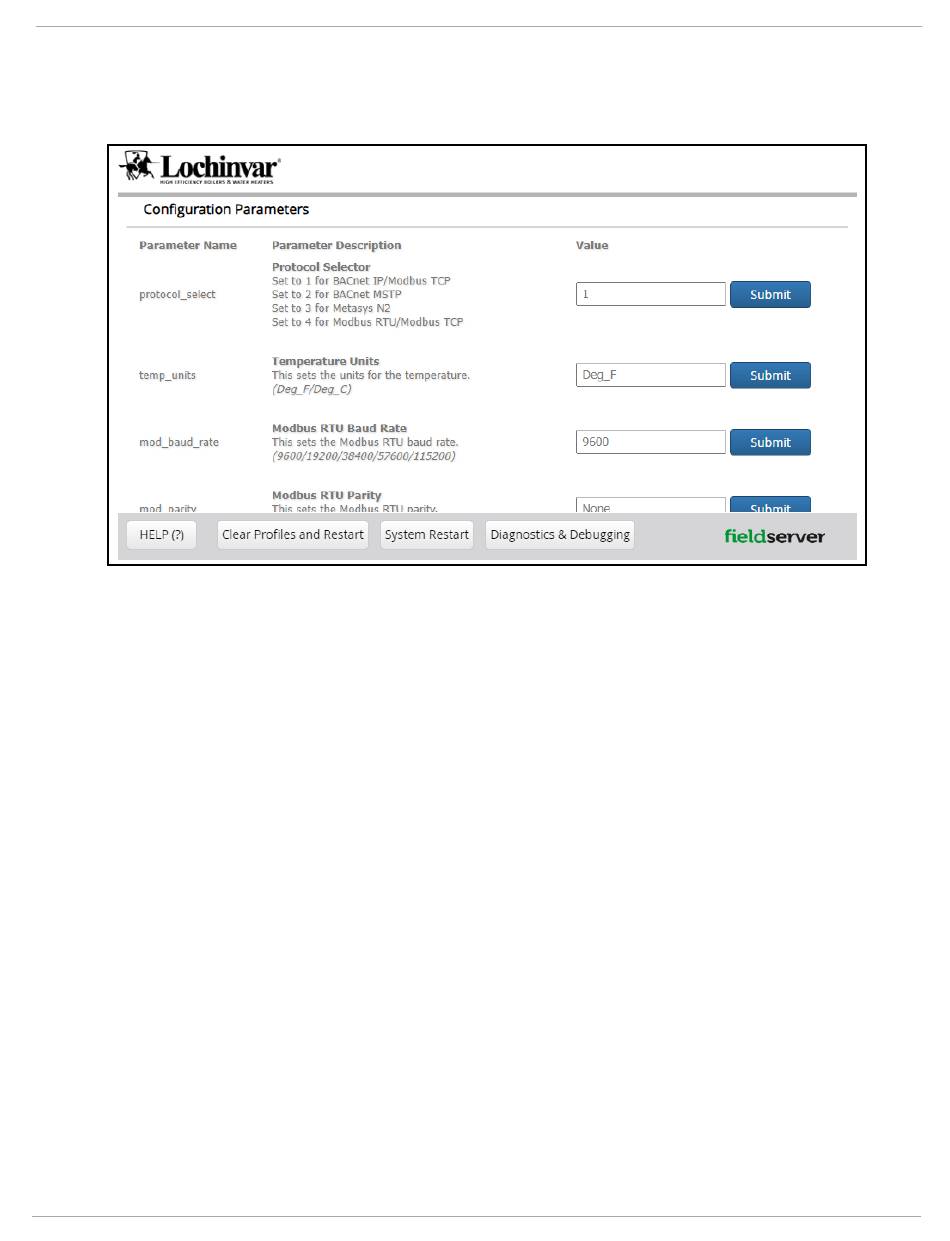

• On the Web Configurator page, the first configuration parameter is the Protocol Selector.
• Select the field protocol by entering the appropriate number into the Protocol Selector Value. Click the Submit button.
Click the System Restart button to save the updated configuration.
NOTE: Protocol specific parameters are only visible when the associated protocol is selected.
NOTE: If Modbus TCP/IP was selected and is used for the field protocol, skip Section
Profiles. Device profiles are NOT used for Modbus TCP/IP.
• Ensure that all parameters are entered for successful operation of the gateway. Find the legal value options for each
parameter under the Parameter Description in parentheses.
NOTE: If multiple devices are connected to the ProtoNode, set the BACnet Virtual Server Nodes field to "Yes";
otherwise leave the field on the default "No" setting.
